1982 Yamaha MJ5O (MJ50J) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1982 Yamaha MJ5O (MJ50J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

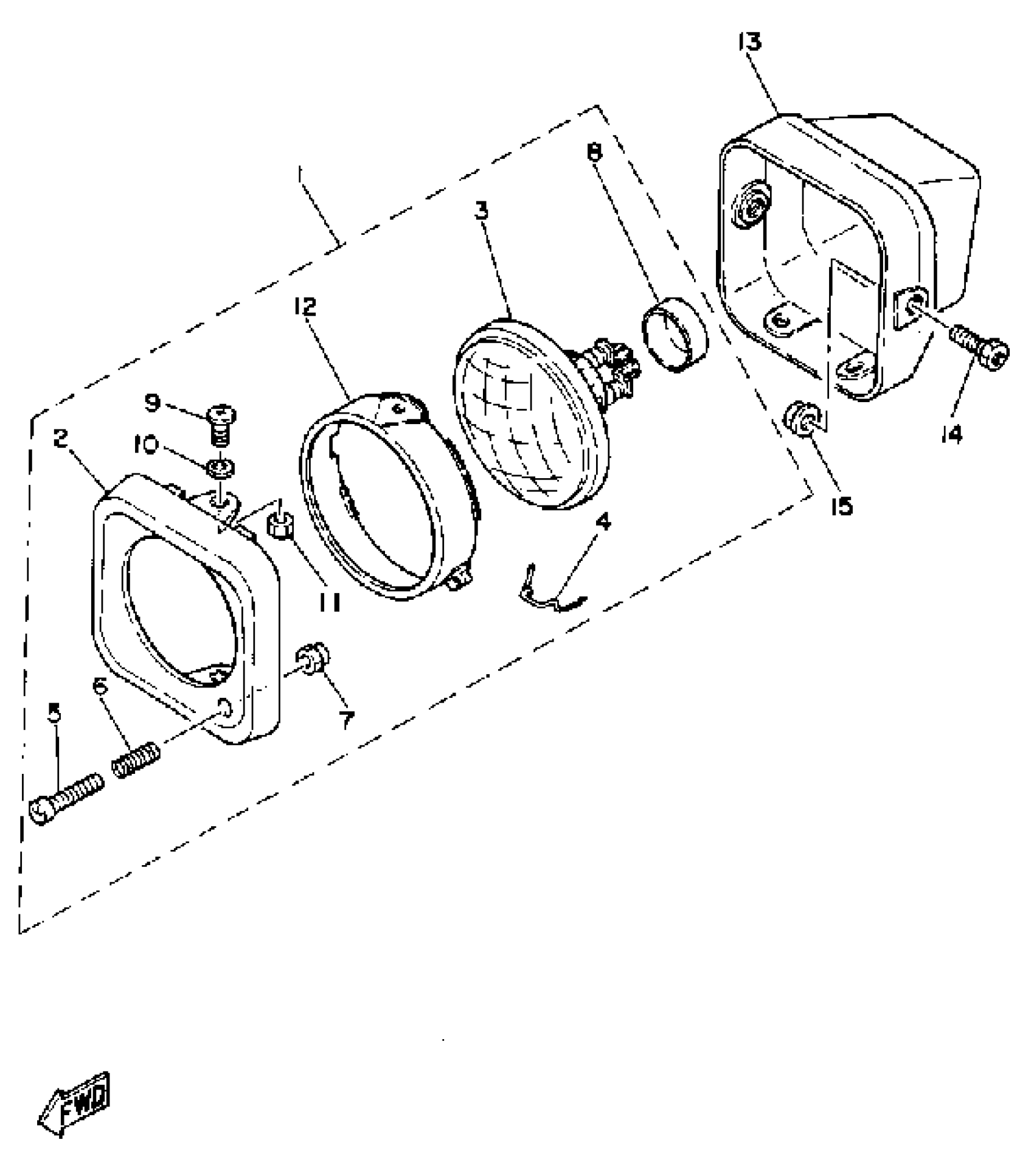

1982 Yamaha MJ5O (MJ50J) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

5N-78411-06-00

1
Out of stock

2

RIM, HEADLIGHT

(5N7-84115-60-00)

1
Out of stock

3

LENS ASSEMBLY

5N7-84120-60-00

1
Out of stock

4

SPRING, REFLECTOR SET

1M1-84124-60-00

1

$7.51

In stock

5

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

6

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

7

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

8

. COVER, SOCKET

341-84397-61-00

1
Out of stock

9

. SCREW

438-84194-60-00

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

RING, RETAINING

(5N7-84195-60-00)

1
Out of stock

13

BODY, HEADLIGHT

5N7-84111-70-00

1
Out of stock

13

BODY, HEADLIGHT

5N7-84111-70-00

1
Out of stock

14

BOLT

90109-08534-00

1
Out of stock

15

NUT, FLANGE

95704-08500-00

—
Out of stock
