1982 Yamaha MJ5O (MJ50J) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1982 Yamaha MJ5O (MJ50J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

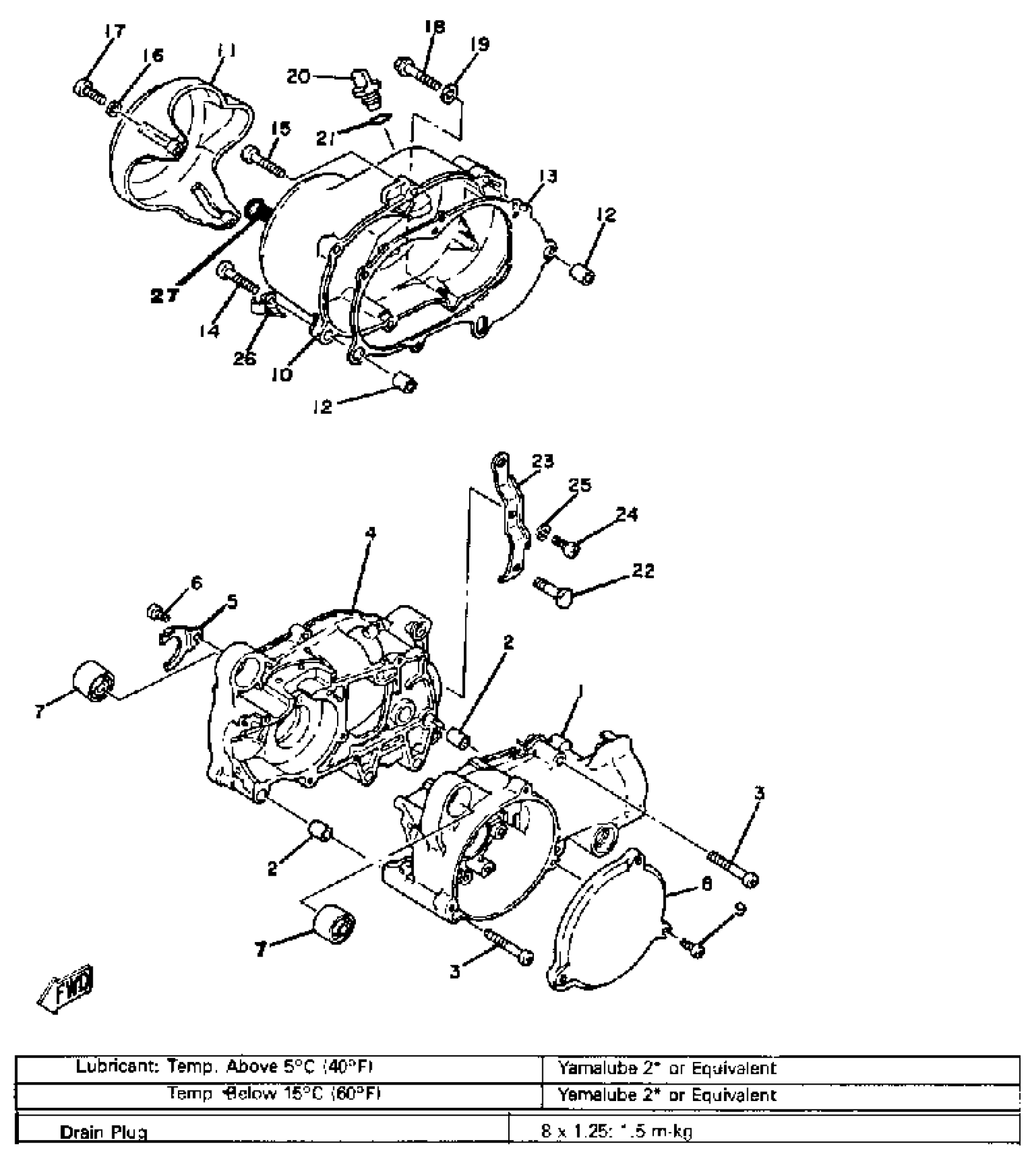

1982 Yamaha MJ5O (MJ50J) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

4X4-15111-00-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

4

CRANKCASE 2

4J2-15121-00-00

1
Out of stock

5

HOLDER

3L5-15128-00-00

—

$3.20

In stock

6

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

7

DAMPER, ENGINE MOUNT

2E9-15316-00-00

1

$24.14

In stock

8

COVER, GENERATOR

5N7-15415-00-00

1
Out of stock

9

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

10

CRANKCASE COVR ASSEMBLY

(4J2-W1543-00-00)

1
Out of stock

11

PROTECTOR

(4J2-15491-00-00)

1
Out of stock

12

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

13

GASKET, CRANKCASE COVER 1

3L5-15451-12-00

1

$17.02

In stock

14

SCREW, PAN

98507-06035-00

1

$6.18

In stock

15

SCREW, PAN

98507-06035-00

1

$6.18

In stock

16

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

17

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

18

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

19

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

20

PLUG, OIL

4J2-15363-10-00

—

$3.78

In stock

21

O-RING (26H)

93210-14579-00

—

$5.69

In stock

22

BOLT (4J2)

90109-08582-00

—

$8.02

In stock

23

PLATE

4J2-15113-00-00

1
Out of stock

24

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

CLAMP

(90462-10065-00)

1
Out of stock

27

BUSH 1

3L5-17112-02-00

—

$14.26

In stock
