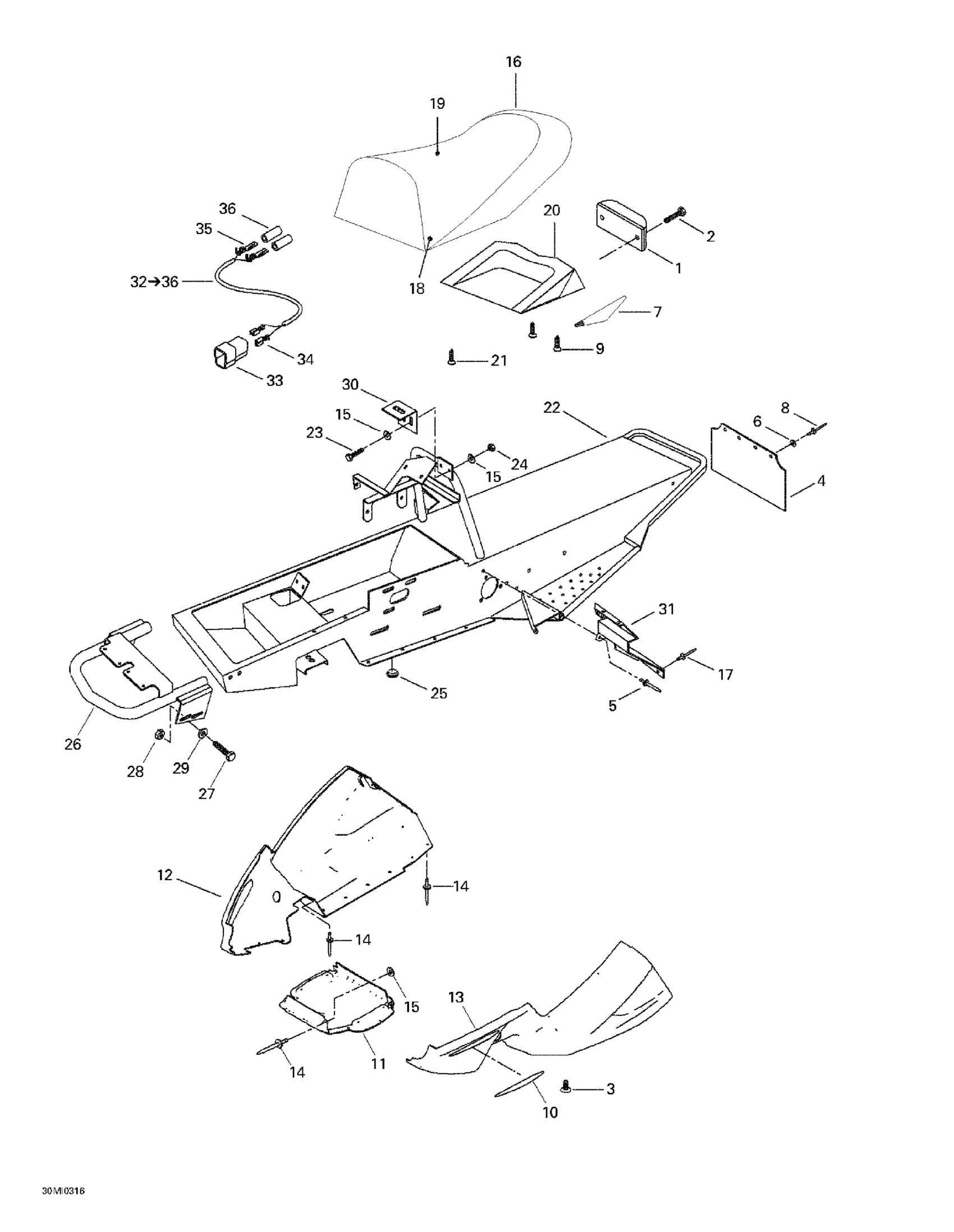

Ski-Doo Mini Z, 2004 Frame And Body Diagram

#

Description
Price

1

TAIL LAMP ASS'Y - Call your local BRP dealership | Includes 3a to 3b

415088700

Unavailable

2

Phillips Tapping Screw M3.9 X 25

209632540

Unavailable

3

Black, Dart

414644300

$0.78

4

Snow Guard

572099800

Unavailable

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

Flat Washer

517225900

$0.17

7

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

8

Pop Rivet 3/16”

293150108

$1.23

9

Not Available As Spare Part - Friction Washer

Unavailable

10

FRONT REFLECTOR - Call your local BRP dealership

516001336

Unavailable

11

Nose (Yellow)

502006660

Unavailable

12

RH Bottom Pan (Yellow)

502006661

Unavailable

13

LH Bottom Pan (Yellow)

502006662

Unavailable

14

Pop Rivet 3/16”

293150108

$1.23

15

Flat Washer M5

234051410

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Pop Rivet 3/16"

390402300

Unavailable

18

Foam Seat

510004340

Unavailable

19

Seat Cover

510004314

Unavailable

20

Seat Moulding

510004169

Unavailable

21

Screw

369903000

Unavailable

22

Frame Ass'y

518323446

Unavailable

23

Hex. Screw M5 x 14

207151414

Unavailable

24

Elastic Stop Nut M5

232551414

Unavailable

25

Plug

414404800

Unavailable

26

Bumper

518323466

Unavailable

27

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

Flat Washer

224061201

Unavailable

30

Adjustable Plate

518321300

Unavailable

31

RH Footrest

518321950

Unavailable

LH Footrest

518321952

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

34

Female Terminal | DS 650 X

278001009

Unavailable

35

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

36

Insulated Sheath

278001007

Unavailable
