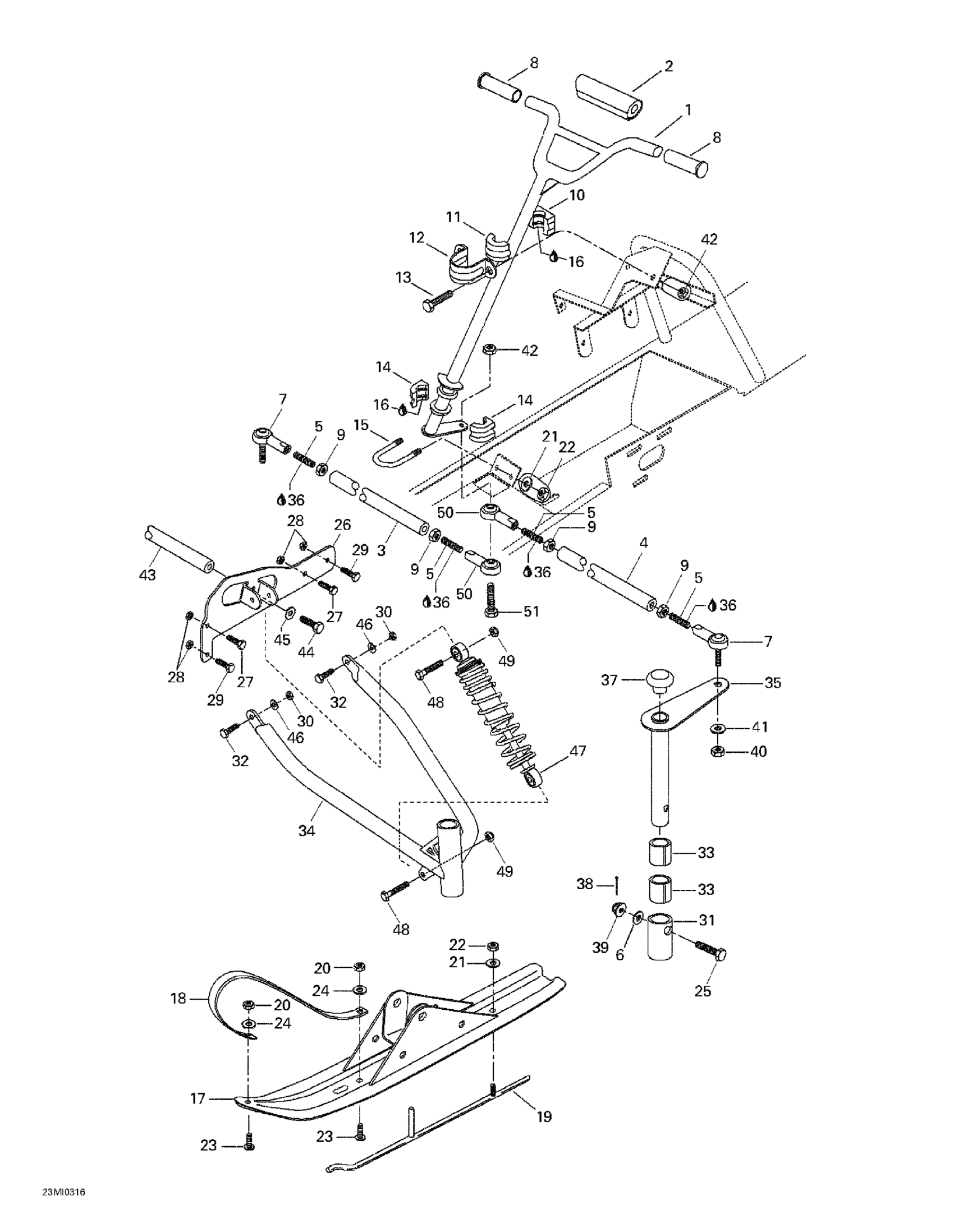

Ski-Doo Mini Z, 2003 Steering System And Ski Diagram

#

Description
Price

1

Handle Bar

506151696

Unavailable

2

Steering Padding

572103400

Unavailable

3

TIE ROD (SHORT) - Call your local BRP dealership

506151693

Unavailable

4

TIE ROD (LONG) - Call your local BRP dealership

506151695

Unavailable

5

Socket Set Screw M8 x 50

206285044

Unavailable

6

Flat Washer 10 mm

234001410

Unavailable

7

BALL JOINT - Call your local BRP dealership

415108500

Unavailable

8

HANDLE GRIP - Call your local BRP dealership

572064100

Unavailable

9

Hex. Nut M8

232081414

Unavailable

10

Bushing

572064400

Unavailable

11

BUSHING - Call your local BRP dealership

572064500

Unavailable

12

Retainer Support

517126200

Unavailable

13

Hex. Screw M8 X 20

207182044

$0.61

14

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

15

U-clamp | X

506060600

Unavailable

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Ski Ass'y | Includes 1 to 8

505068300

Unavailable

18

HANDLE - Call your local BRP dealership

572099500

Unavailable

19

Runner

505068400

Unavailable

20

Elastic Stop Nut M6

232561414

Unavailable

21

Flat Washer 8 mm

234081410

Unavailable

22

Hex. Elastic Stop Nut M8

232581414

Unavailable

23

Phillips Screw M6 X 25

208562560

Unavailable

24

Flat Washer 6 mm

234061410

Unavailable

25

BOLT M10 X 60 - Call your local BRP dealership

505070178

Unavailable

26

LH Upper Bracket

505071188

Unavailable

RH Upper Bracket

505071189

Unavailable

27

Hex. Flange Screw M6 X 16

207661644

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

Hex. Flange Screw M6 X 20

207662044

Unavailable

30

Hex. Flange Elastic Nut M8

233281414

Unavailable

31

SPACER - Call your local BRP dealership

505070457

Unavailable

32

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

33

CUSHION - Call your local BRP dealership

415087300

Unavailable

34

RH Arm

505071155

Unavailable

LH ARM - Call your local BRP dealership

505071159

Unavailable

35

Ski Leg

505070456

Unavailable

36

Loctite 243, 10 ml

293800060

$20.77

37

CAP - Call your local BRP dealership

572079100

Unavailable

38

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

39

NUT-HEX.CASTLE DIN.935 - Call your local BRP dealership

232201414

Unavailable

40

Hex. Elastic Stop Nut M8

232581414

Unavailable

41

Flat Washer 8 mm

234082410

$1.11

42

Hex. Flange Elastic Nut M8

233281414

Unavailable

43

CROSS MEMBER - Call your local BRP dealership

505071192

Unavailable

44

Hex. Screw M8 X 20

207182044

$0.61

45

WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership

234180411

Unavailable

46

CUSHION - Call your local BRP dealership

505071254

Unavailable

47

FRONT CUSHION - Call your local BRP dealership

A51400145000

Unavailable

48

Hex. Screw M10 X 45

207004544

Unavailable

49

Hex. Flange Elastic Nut M10

233201414

$1.26

50

LH BALL JOINT - Call your local BRP dealership

506151729

Unavailable

51

Hex. Screw M8 X 40

207084044

Unavailable
