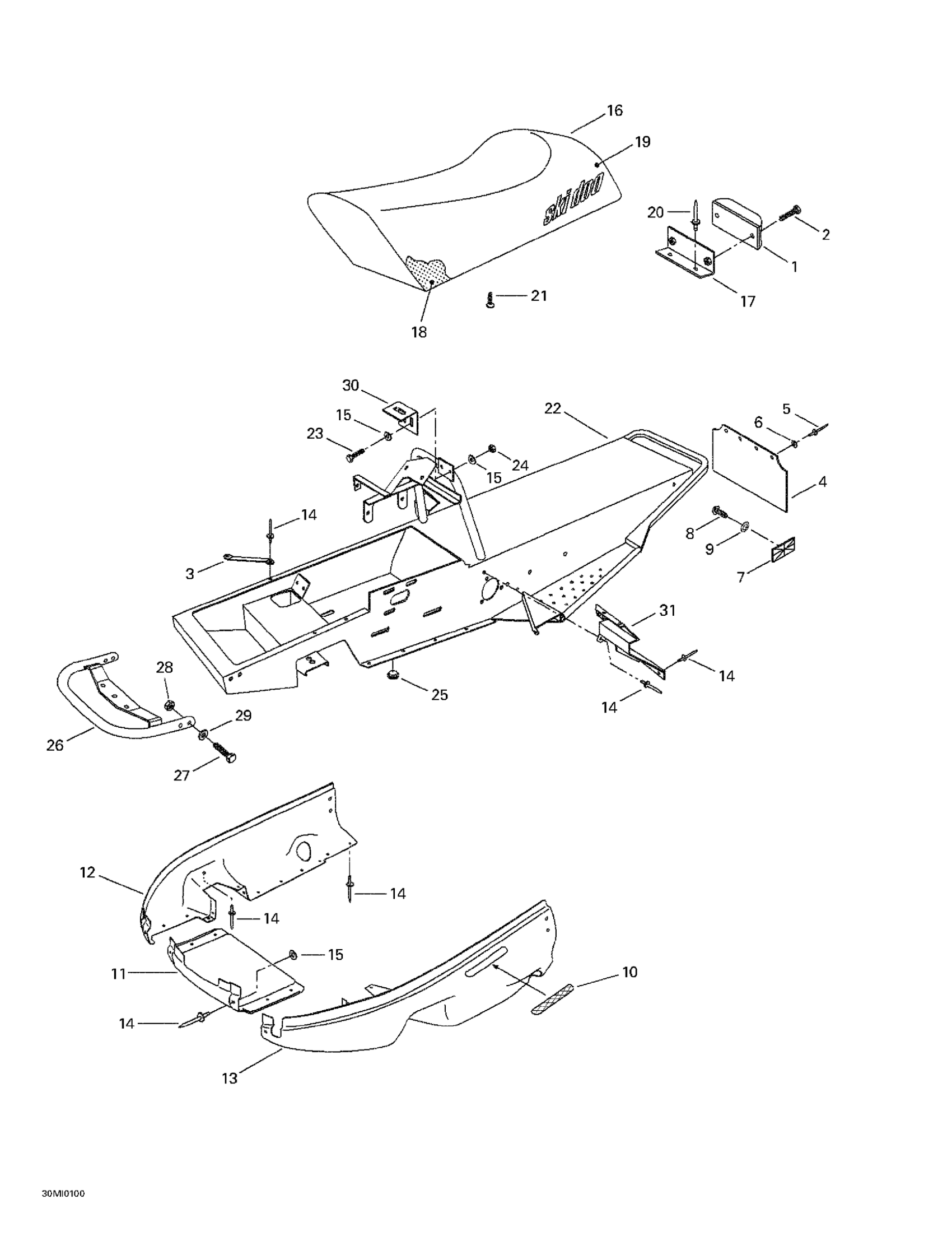

Ski-Doo Mini Z, 2001 Frame And Body Diagram
#
Description
Price
1
TAIL LAMP ASS'Y - Call your local BRP dealership | Includes 3a to 3b
415088700
Unavailable
2
Hex. Screw M5 X 12
207151244
Unavailable
3
Bottom Pan Support
502006505
Unavailable
4
Snow Guard
572099800
Unavailable
7
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
8
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
9
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
10
Decal - RH Reflector
415064400
Unavailable
Decal - LH Reflector
415064401
Unavailable
11
Nose (Yellow)
571009500
Unavailable
12
RH Bottom Pan (Yellow)
502006538
Unavailable
13
LH Bottom Pan (Yellow)
502006539
Unavailable
14
Pop Rivet 3/16"
390906800
Unavailable
15
Flat Washer M5
234051410
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Tail Lamp Housing
415088400
Unavailable
18
Foam Seat
415088302
Unavailable
19
Seat Cover
510003910
Unavailable
20
Pop Rivet 3/16"
390906800
Unavailable
21
Screw
369903000
Unavailable
22
Frame Ass'y
518321943
Unavailable
23
Hex. Screw M5 x 14
207151414
Unavailable
24
Elastic Stop Nut M5
232551414
Unavailable
25
Plug
414404800
Unavailable
26
Bumper
518320400
Unavailable
27
Hex. Screw M6 X 30
207063044
Unavailable
28
Elastic Stop Nut M6
232561414
Unavailable
29
Flat Washer 6 mm
234061410
Unavailable
30
Adjustable Plate
518321300
Unavailable
31
RH Footrest
518321950
Unavailable
LH Footrest
518321952
Unavailable
