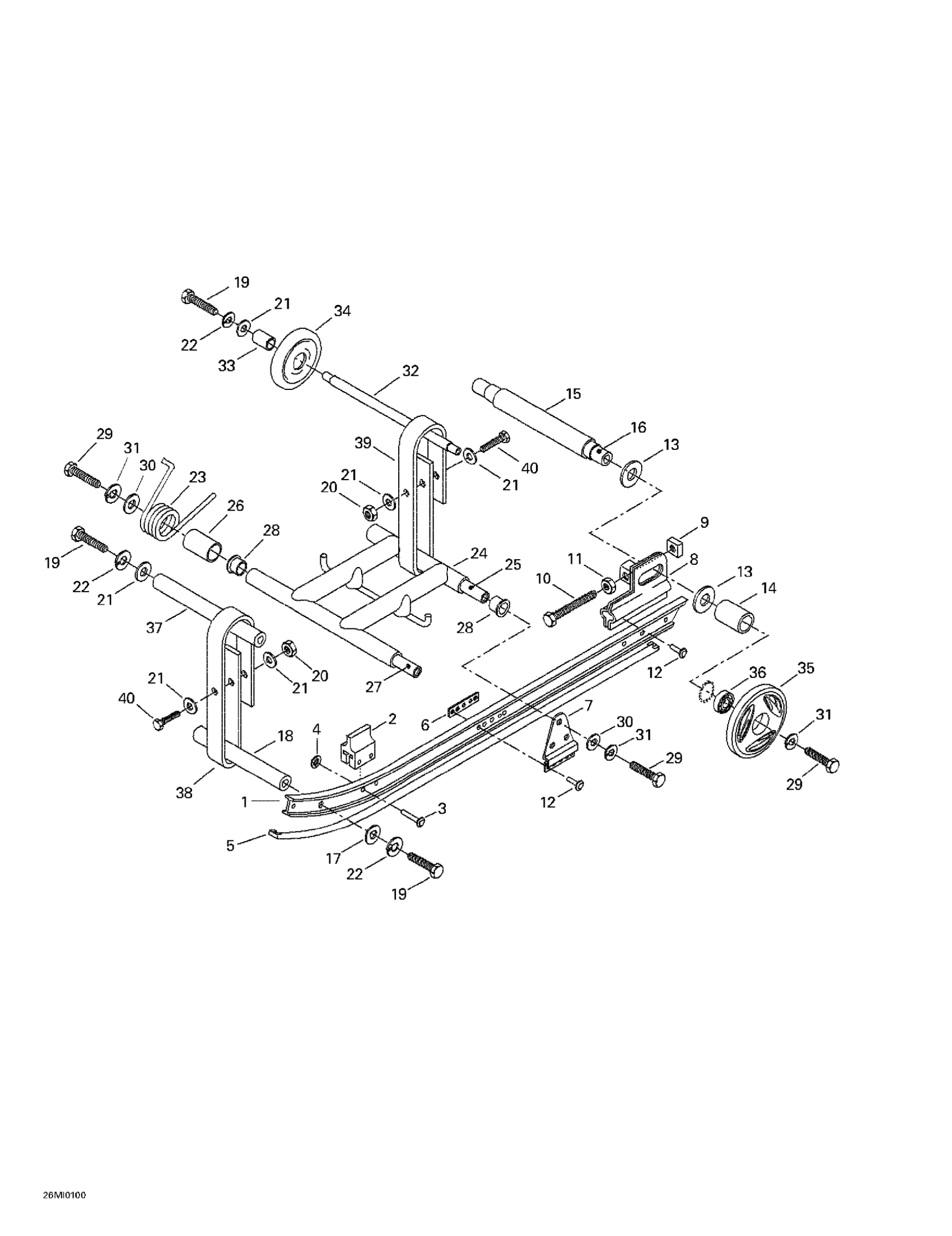

Ski-Doo Mini Z, 2001 Rear Suspension Diagram

#

Description
Price

1

Runner

503176800

Unavailable

2

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

3

RIVET-STEEL SOLID - Call your local BRP dealership

390004800

Unavailable

4

Push Nut

389804300

$0.43

5

Metallic Stripe

415104100

Unavailable

6

SPACER - Call your local BRP dealership

503188900

$5.29

7

FRONT ARM SUPPORT - Call your local BRP dealership

503149800

$7.37

8

LH ADJUSTMENT PLATE - Call your local BRP dealership

503161500

$47.66

RH ADJUSTMENT PLATE - Call your local BRP dealership

503161400

$43.82

9

Square Nut M10

232802400

Unavailable

10

Hex. Screw M10 X 75

207107544

Unavailable

11

Hex. Nut M10 X 1.5

232006414

$1.11

12

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

13

SHIM - Call your local BRP dealership

504108200

Unavailable

14

Spacer

503177800

Unavailable

15

SPACER - Call your local BRP dealership

503178000

$11.28

16

REAR AXLE - Call your local BRP dealership

503178100

$36.12

17

Washer

503183300

$5.68

18

FRONT AXLE - Call your local BRP dealership

503177200

Unavailable

19

Hex. Screw M8 X 20

207182044

$0.61

20

Hex. Elastic Stop Nut M8

232581414

Unavailable

21

Flat Washer 8 mm

234082410

$1.11

22

WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership

234180411

Unavailable

23

RH Paint Spring

414880400

Unavailable

LH PAINT SPRING - Call your local BRP dealership

414880500

$32.28

24

FRONT ARM - Call your local BRP dealership

503177700

$143.05

25

LOWER CENTER SHAFT - Call your local BRP dealership

503177300

$26.12

26

Bushing

572110500

Unavailable

27

UPPER CENTER SHAFT - Call your local BRP dealership

503178400

$26.62

28

Steering Bushing

709402725

Unavailable

29

Hex. Screw M10 X 25

207102544

Unavailable

30

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

31

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

32

REAR AXLE - Call your local BRP dealership

503178200

Unavailable

33

SPACER - Call your local BRP dealership

503177400

$11.06

34

Idle Wheel

570067300

Unavailable

35

Wheel 135, Yellow

503190785

Unavailable

36

Ball Bearing

293350115

Unavailable

37

Retainer Axle

506147600

Unavailable

38

STOPPER STRAP - Call your local BRP dealership

570068700

Unavailable

39

REAR STOPPER STRAP - Call your local BRP dealership

570069200

Unavailable

40

Hex. Screw M8 X 30

207183044

Unavailable
