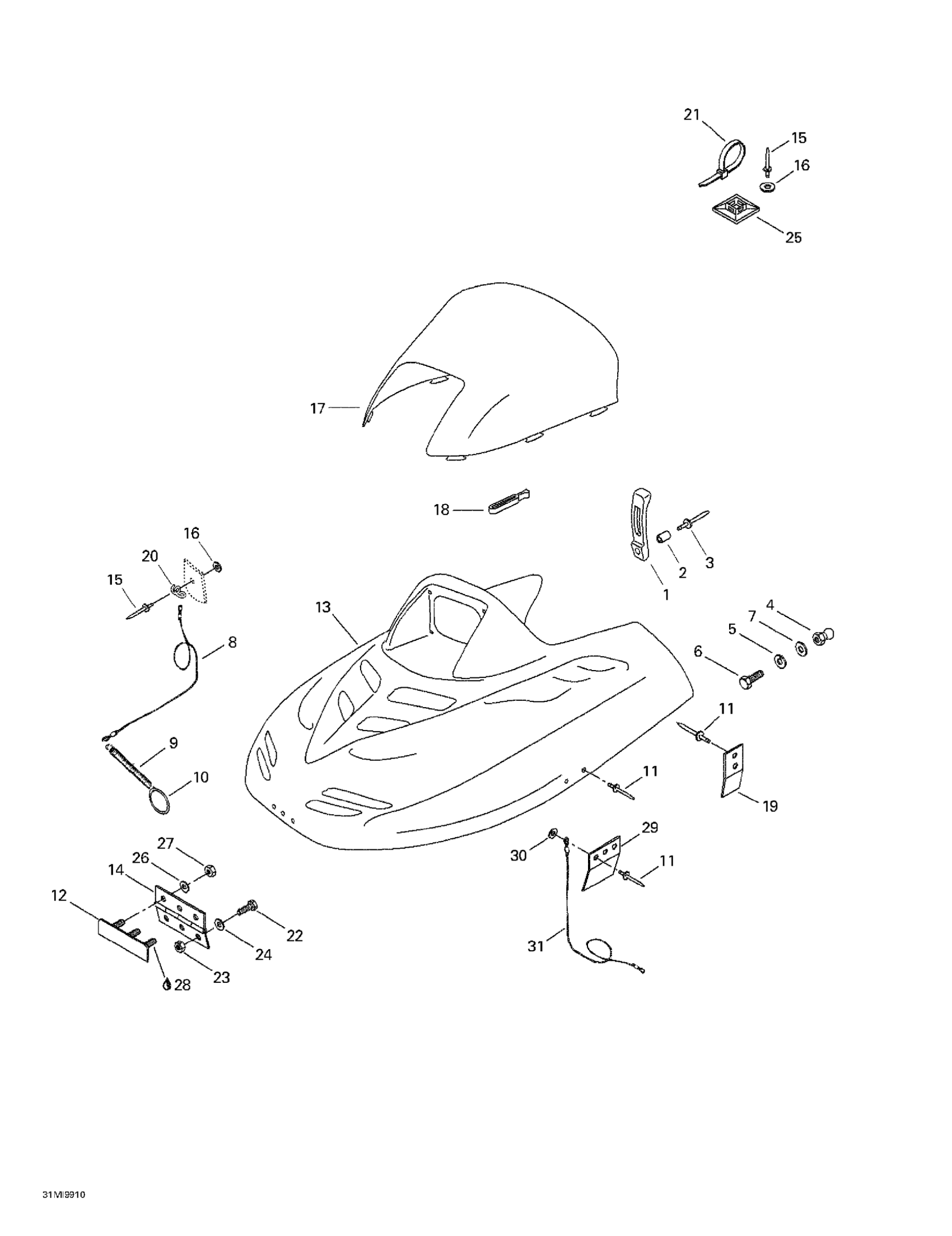

Ski-Doo Mini Z, 1999 Cab Diagram
#
Description
Price
1
BLACK LATCH - Call your local BRP dealership
570025900
Unavailable
2
Bushing
293900112
Unavailable
3
Pop Rivet 3/16"
390906800
Unavailable
4
Knob
517245800
Unavailable
5
Lock Washer 5 mm | Europe
234151401
Unavailable
6
Hex. Screw M5 X 14
207151444
Unavailable
7
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
8
RETAINER CABLE - Call your local BRP dealership
415093900
Unavailable
9
Spring
414763300
Unavailable
10
RING - Call your local BRP dealership
415058300
Unavailable
12
Hinge Bracket
517301500
Unavailable
13
Hood
571009600
Unavailable
14
Hinge
517302046
Unavailable
15
Pop Rivet 3/16"
390906800
Unavailable
16
Washer
517124300
Unavailable
17
Windshield
415092500
Unavailable
18
Windshield Latch
570023800
Unavailable
19
Hood Guide
517298000
Unavailable
20
Bracket
517262800
Unavailable
21
Tie Wrap 142 mm
293750002
Unavailable
22
Hex. Screw M6 X 16
207161644
Unavailable
23
Elastic Stop Nut M6
232561414
Unavailable
24
Flat Washer
224061201
Unavailable
25
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
29
RH Guide
517302040
Unavailable
LH Guide
517302041
Unavailable
30
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
31
Internal Cable
517302042
Unavailable
