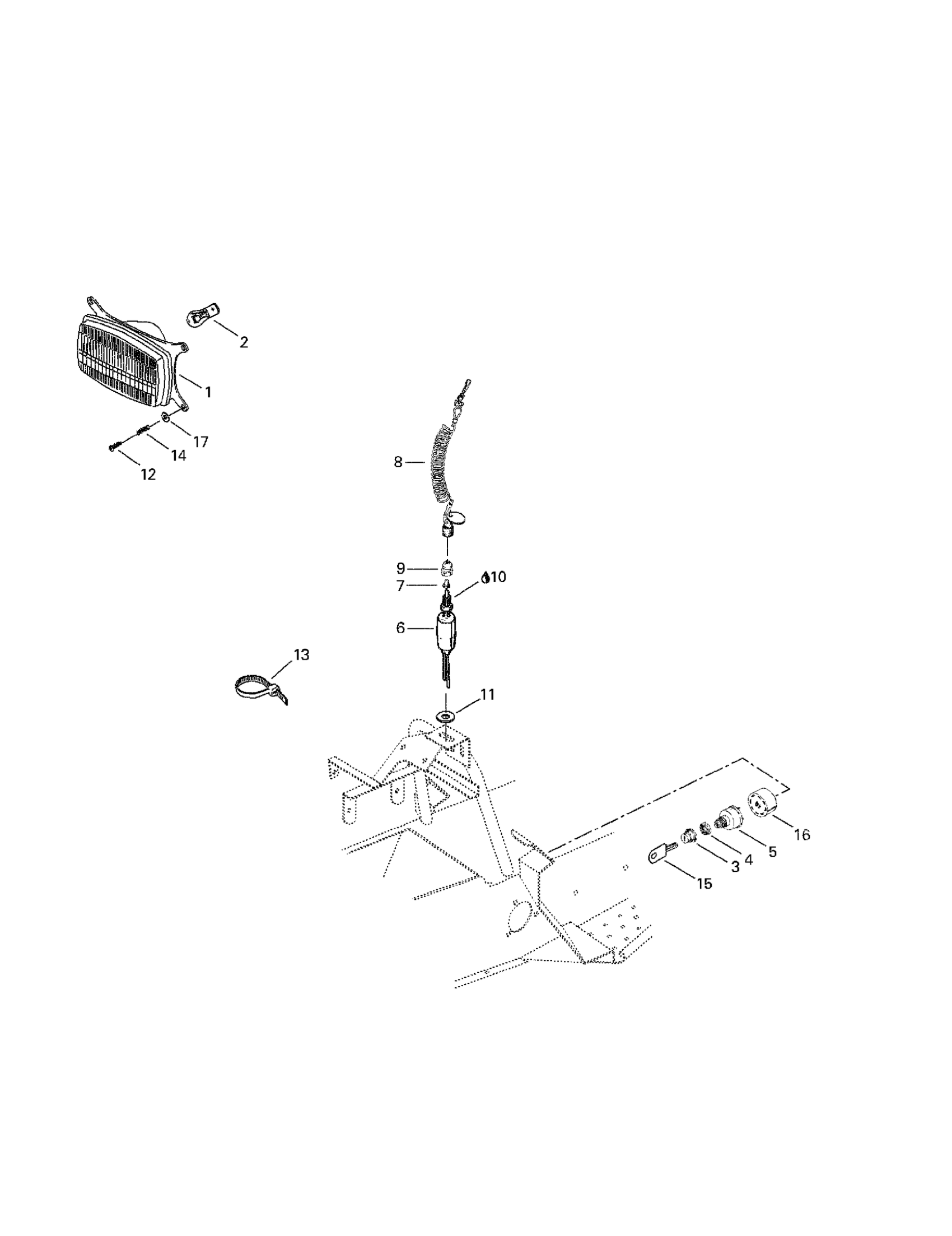

Ski-Doo Mini Z, 1998 Electrical System Diagram

#

Description
Price

1

Head Lamp Ass'y | Includes 1 - 2.

410609200

Unavailable

2

Bulb

410609400

Unavailable

3

Switch Boot

570013700

$10.49

4

FACE NUT - Call your local BRP dealership

410112100

Unavailable

5

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

6

Brake Switch

515175653

$17.88

7

Plunger Cap

570151100

$9.13

8

CAP ASS'Y - Call your local BRP dealership

515176464

Unavailable

9

Switch Nut

515145900

$10.51

10

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

11

Spacer

517302008

Unavailable

12

Screw M4 x 40

732603002

Unavailable

13

Tie Wrap 142 mm

293750002

$1.01

14

Spring

517168600

$6.70

15

Blank Key

415129350

Unavailable

16

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable
