Description

Price

1

Front Fender Black Ds90X

V83007DGF000

$189.97

2

Rear Fender, Black

V82012DGF01H

$189.97

3

Cargo Cover

V82103DGF00HLL

$52.28

4

RH Front Side Panel

V80104DGF010BK

$20.74

5

LH Front Side Panel

V80105DGF010BK

$20.74

6

RH Rear Side Panel

V80116DGF000BKLL

$16.89

7

LH Rear Side Panel

V80117DGF000BKLL

$16.89

8

Heat Insulation Sheet

V18450DGF000LL

$10.14

9

Round Head Screw

V930000601201LL

$2.31

10

Round Head Screw

V930000601501LL

$2.31

11

Spring Nut

V9034506000KLL

$7.60

12

Waterproof Strip

V81146DGF020

$4.98

13

SKID PLATE, YELLOW - Call your local BRP dealership

V82113DGF01H

Unavailable

13

SKID PLATE, BLACK - Call your local BRP dealership

V80113DGF01HBK

Unavailable

14

Elastic Stop Nut M6

232561414

$1.55

15

Cargo Cover Hinge

V50262DGF030LL

$17.66

16

Tapping Screw

V9309304012LL

$2.31

17

Hex. Flange Screw M6 X 12

207661244

$1.70

18

Round Haed Bolt M6 X 35

V9300006035

$3.98

19

Hex. Flange Screw M6 X 12

207661244

$1.70

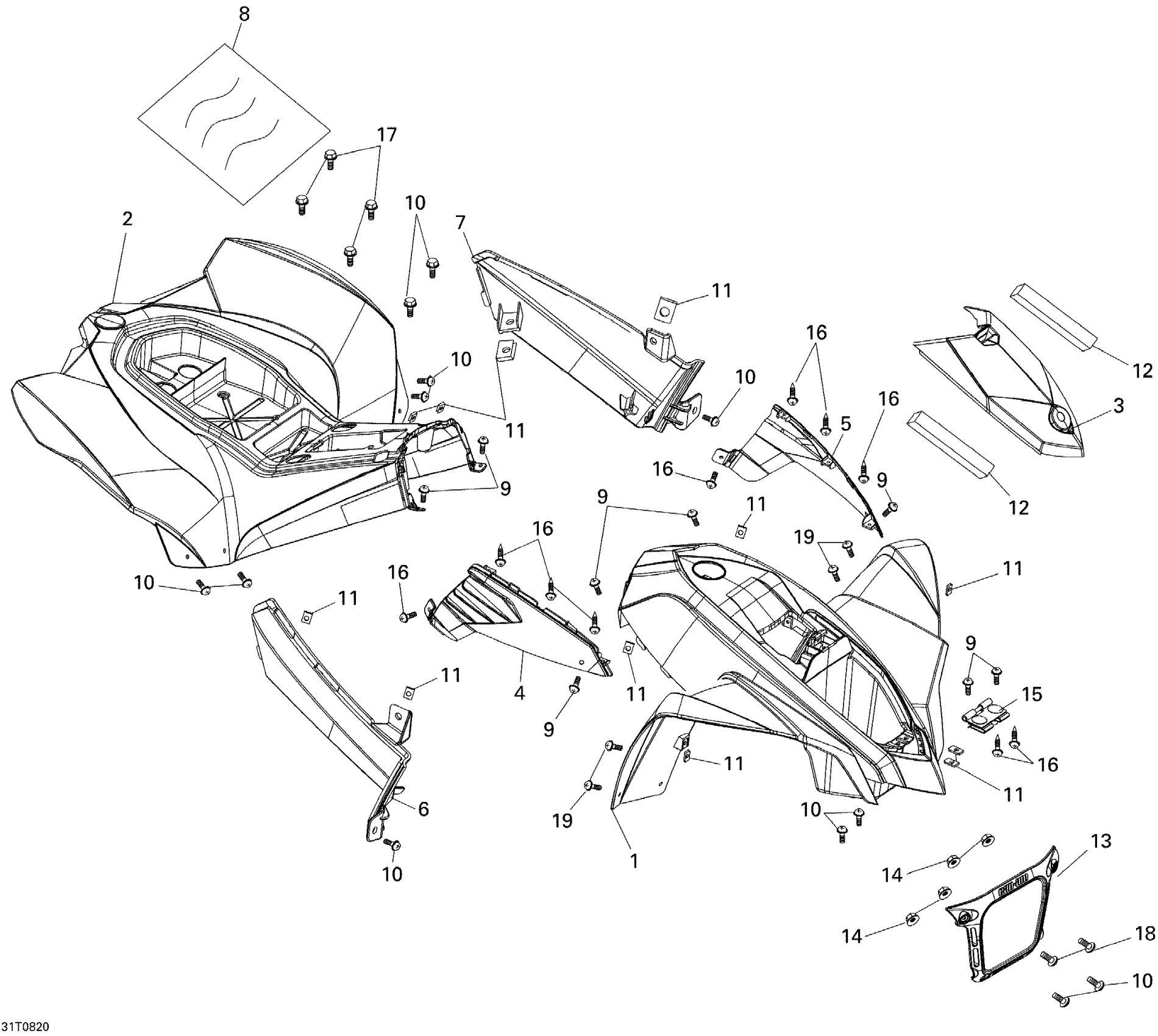

Can-Am Mini DS X 90cc 4T Black, 2008 Body And Accessories Diagram

SKID PLATE, YELLOW - Call your local BRP dealership

SKID PLATE, BLACK - Call your local BRP dealership
