Description

Price

1

Steering Column, Black

V53200DGF08H

$87.66

2

Sleeve

V53217MAA020

$10.68

3

Steering Shaft Holder

V53434MAA020BK

$15.35

4

Oil Seal

V92101MAA000

$12.91

5

C-Circlip

V9452032000

$2.31

6

Radial Ball Bearing, 6002ZZ

A961006002ZZ

$22.28

7

Collar

V22112MAA010

$8.45

8

Oil Seal

V92102MAA000

$12.91

9

Tie-Rod Ass'y

V53180DGF03H

$170.74

10

LH Knuckle

V51215DGF05HLL

$143.05

11

RH Knuckle

V51210DGF04HLL

$143.05

12

Hex. Elastic Stop Nut M8

232581414

$0.47

13

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

14

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

15

Lock Nut

V9035210000LL

$10.14

16

Hex. Flange Screw M8 X 35

207683544

$1.39

17

Cotter Pin

V9420117020LL

$6.45

18

Cotter Pin

V9420130032LL

$6.45

19

LH Tie Rod Plate

V51211DGF06H

$12.68

20

RH TIE ROD PLATE - Call your local BRP dealership

V51212DGF01H

$12.68

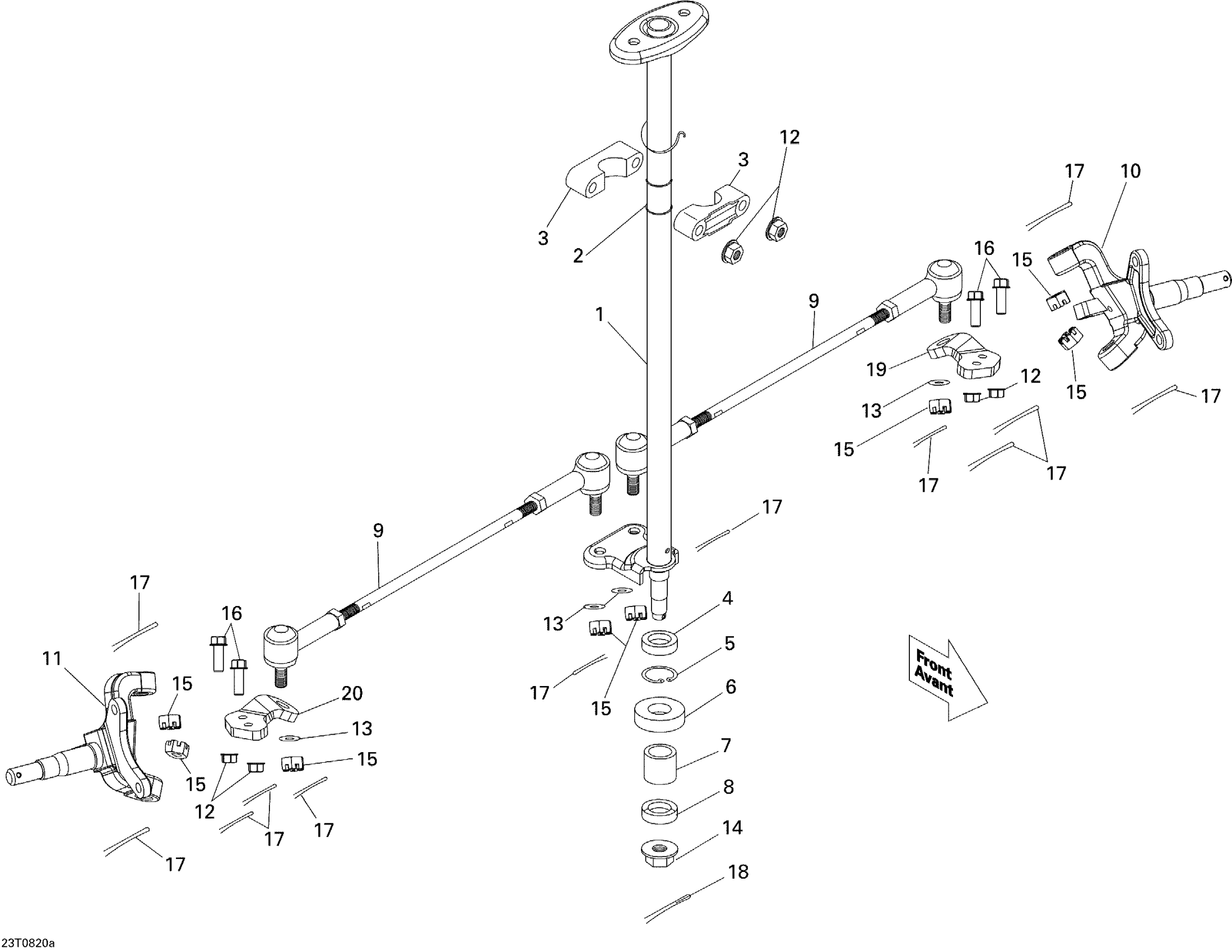

Can-Am Mini DS X 90cc 4T Black, 2008 Steering Diagram
