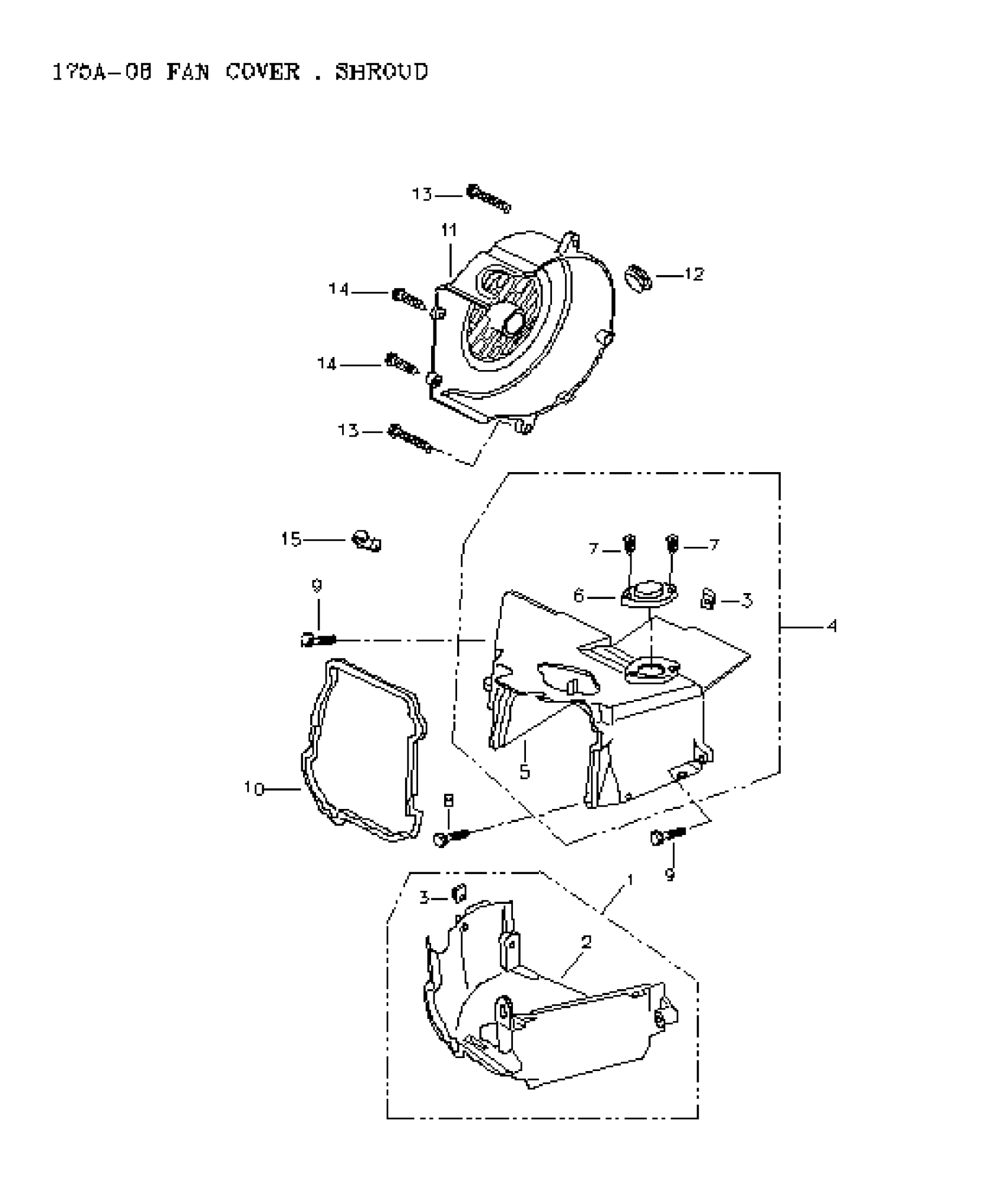

Can-Am Mini DS 90 4-strokes, 2006 Fan Cover Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Shroud A
A19621133000
Unavailable
3
U Plate Nut
A9034406000
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
SHROUD B - Call your local BRP dealership
A19623133000
Unavailable
6
Tensioner Lifter Cover
A19633133000
Unavailable
7
Hex. Truss Head Tapping Screw
A9390405012
Unavailable
8
Hex. Flange Screw M6 X 16
207661644
Unavailable
9
HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership
A960000602008
Unavailable
10
Seal Shroud
A19625133000
Unavailable
11
GENERATOR COVER - Call your local BRP dealership
A19610133000
Unavailable
12
Rubber Bung
A17529120000
Unavailable
13
HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership
A960000602508
Unavailable
14
TAPPING SCREW TRUSS HEAD HEXAGONAL - Call your local BRP dealership
A9390405016
Unavailable
15
Clamper
A1135112000A
Unavailable
