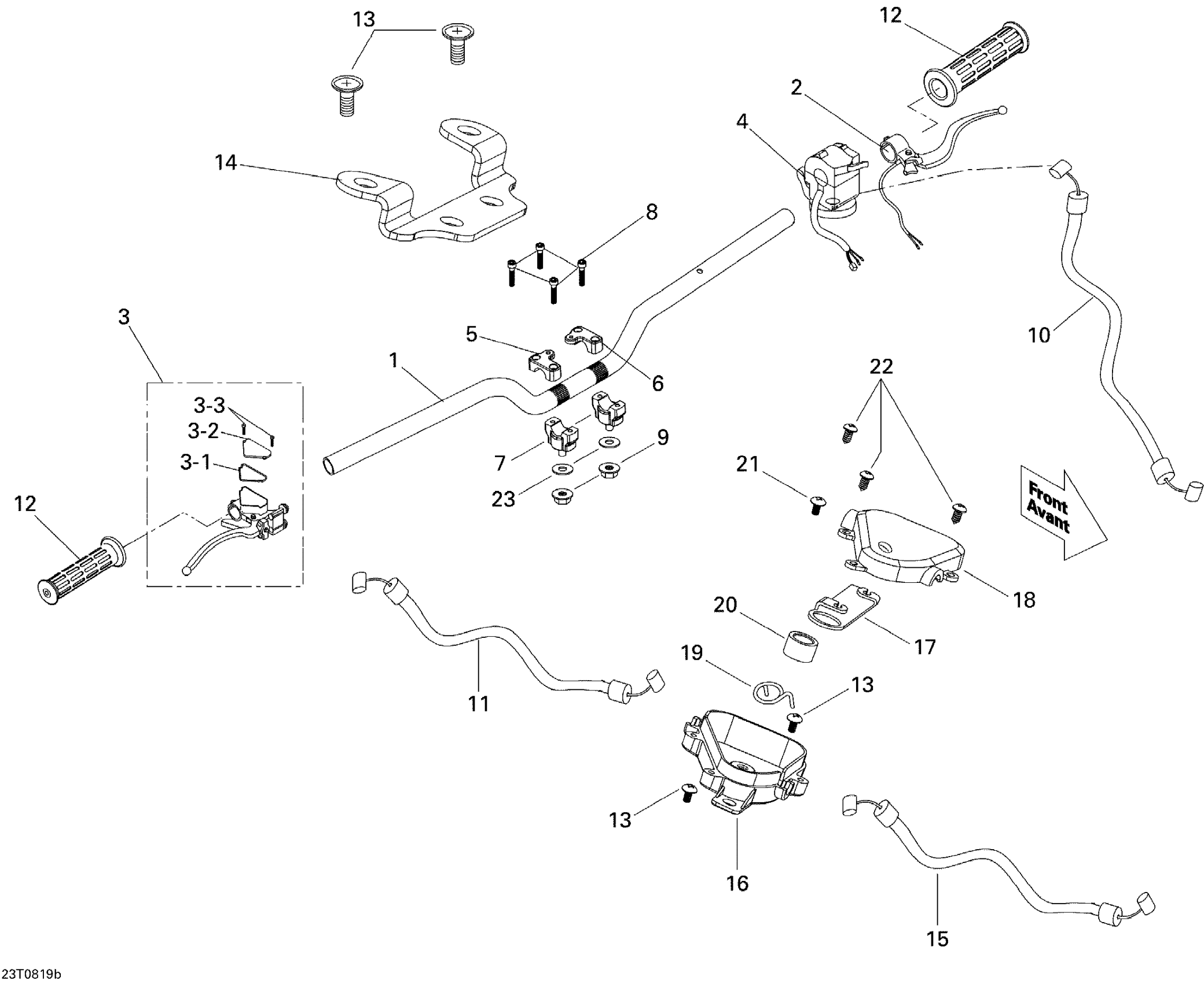

Can-Am Mini DS 70cc 4T Jaune, 2008 Handlebar Diagram

#

Description
Price

1

Handle Bar

V53100DGF050

Unavailable

2

LH Brake Lever

V53178MAA010BK

Unavailable

3

RH Brake Lever Ass'y

V53179MAA010BKLL

$175.35

3-1

RH LEVER GASKET - Call your local BRP dealership

V53182MAA000

Unavailable

3-2

LEVER BODY COVER - Call your local BRP dealership

V53183MAA000

Unavailable

3-3

BOLT - Call your local BRP dealership

V9350004016

Unavailable

4

MULTI-FUNCTION SWITCH - Call your local BRP dealership

V35160DGF010

Unavailable

5

LH Upper Handle Bar Clamp

V53170MAA020BKLL

$18.43

6

RH Upper Handle Bar Clamp

V53175MAA020BKLL

$18.43

7

Lower Handle Bar Clamp

V45517MAA040BK

$27.66

8

Hexagonal Bolt M6 X 25

V9100006025LL

$3.98

9

Nylon Nut M10

V9035010000010LL

$2.31

10

Choke Cable

V43316DGF060LL

$23.05

11

THROTTLE CABLE - Call your local BRP dealership

V17910DGE050LL

Unavailable

12

Handle Grip

V53140DGF000BK

$18.43

13

Round Head Screw

V930000601201LL

$2.31

14

Support

V50223DGF030

$17.66

15

Throttle Cable

V17911DGE020

Unavailable

16

LOWER COVER - Call your local BRP dealership

V80120DGE020LL

Unavailable

17

Throttle Cable Plate

V50336DGE040

$11.83

18

UPPER COVER - Call your local BRP dealership

V80121DGE020LL

Unavailable

19

Spring

V54292DGE020

$5.52

20

Collar

V50337DGE000

$8.29

21

Round Head Bolt

V9300005012

$6.45

22

Tapping Screw

V9309303508

$2.31

23

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92
