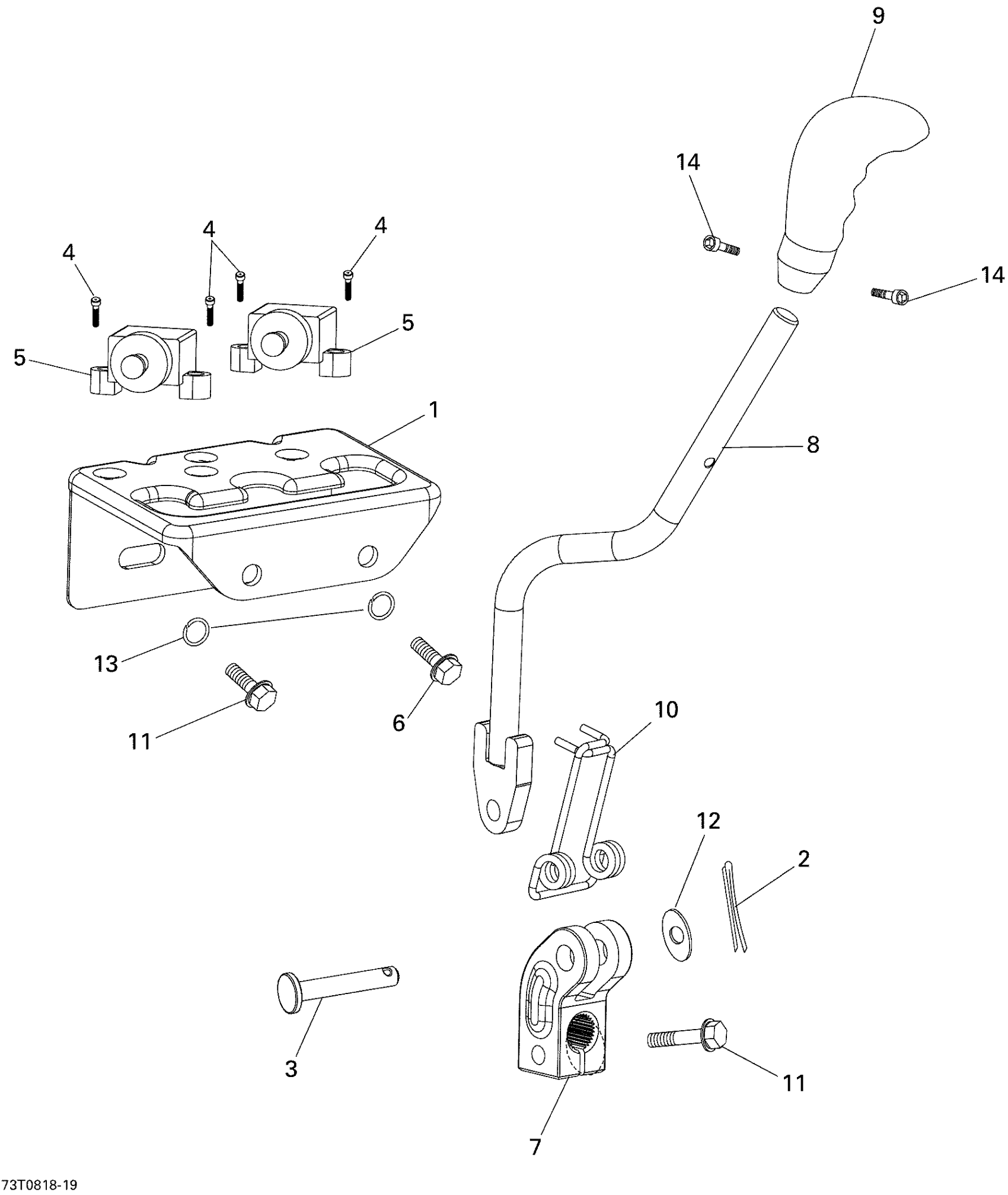

Can-Am Mini DS 70cc 4T Jaune, 2008 Shift Lever Diagram

#

Description
Price

1

Shift Plate

V72101DGF070

$49.22

2

Cotter Pin

V9420130032LL

$6.16

3

Pin

V0226MAF020

Unavailable

4

BOLT - Call your local BRP dealership

V935000501501

Unavailable

5

Switch

V35152DGF060

$74.60

6

Hex. Flange Screw M6 X 16

207661644

$0.70

7

Support Shifter

V72315MAD040

$18.63

8

Shifter

V72314DGF050LL

$20.12

9

Handle

V72201CEK040LL

$12.43

10

Spring

V54294MAF030LL

$12.79

11

Hex. Flange Screw M6 X 20

207662044

$1.91

12

WASHER - Call your local BRP dealership

V941010817016

Unavailable

13

Lock Washer Helical M6

234161601

$1.06

14

Socket Head Screw

V9105005006

$3.29
