1975 Kawasaki MC1-B Taillight/turn Signals Diagram

← All diagrams

Find the part on the Taillight/turn Signals diagram for your 1975 Kawasaki MC1-B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

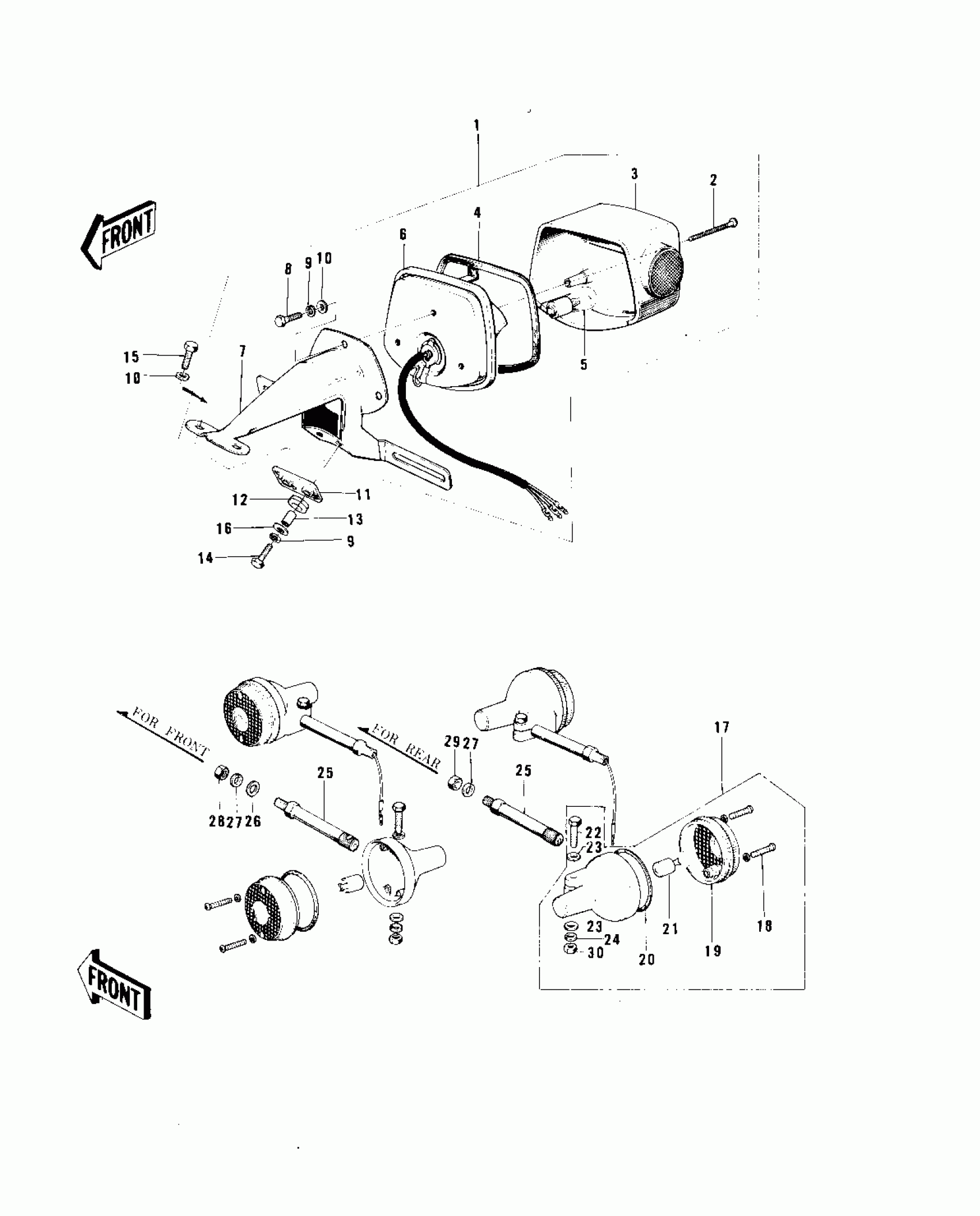

1975 Kawasaki MC1-B Taillight/turn Signals Diagram

#

Description
Price
Status
Order Qty

1

LAMP ASSY,TAIL,BLACK

23024-060-10

Out of stock

1

LAMP ASSY,TAIL,BLACK

23024-060-10

Out of stock

2

SCREW

220R0455

Out of stock

3

LENS,TAIL LAMP

23026-028

Out of stock

4

GASKET,TAIL LAMP LENS

23028-019

Out of stock

5

BULB,6V 32/3CP

92069-074

Out of stock

6

BODY COMP TAIL LAMP

23027-1018

Out of stock

6

CASE,TAIL LAMP

23027-037

Out of stock

7

BKT,LICENSE PLT,BLACK

23036-034-10

Out of stock

8

BOLT-UPSET 6X14

112B0614

Out of stock

8

BOLT-UPSET 6X14

116B0614

Out of stock

9

WASHER SPRING 6MM

461F0600

Out of stock

10

WASHER PLAIN 6MM

411B0600

Out of stock

11

DAMPER RUBBER,TL LAMP

35039-008

Out of stock

12

DAMPER,FENDER

92075-121

Out of stock

13

COLLAR,6.8X10X12

92027-162

Out of stock

14

BOLT, HEX HEAD, 6X25

110B0625

Out of stock

14

BOLT-UPSET

112G0625

Out of stock

15

BOLT-UPSET

112G0630

Out of stock

15

BOLT-UPSET

112G0630

Out of stock

16

WASHER,6.5X20X1.6

92022-125

Out of stock

17

LAMP ASSY,TURN SIGNAL

23040-038

Out of stock

18

SCREW-PAN HEAD,4X20

220E0420A

Out of stock

19

LENS-SIGNAL LAMP,"045-6588"

23048-1001

Out of stock

20

GASKET,SIGNAL LAMP

23050-003

Out of stock

21

BULB,6V 21CP

92069-056

Out of stock

22

BOLT-UPSET

112G0630

Out of stock

23

WASHER PLAIN 6MM

411B0600

Out of stock

24

WASHER SPRING 6MM

461F0600

Out of stock

25

BRACKET,TURN SIGNAL

23051-047

Out of stock

26

WASHER PLAIN 12MM

411B1200

Out of stock

27

WASHER-SPRING,12MM

461F1200

Out of stock

28

NUT,12MM

314N1200A

Out of stock

29

NUT-HEX-FINE

315B1200

Out of stock

30

NUT 6MM

311B0600

Out of stock
