1975 Kawasaki MC1-B Seat/chain Cover Diagram

← All diagrams

Find the part on the Seat/chain Cover diagram for your 1975 Kawasaki MC1-B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

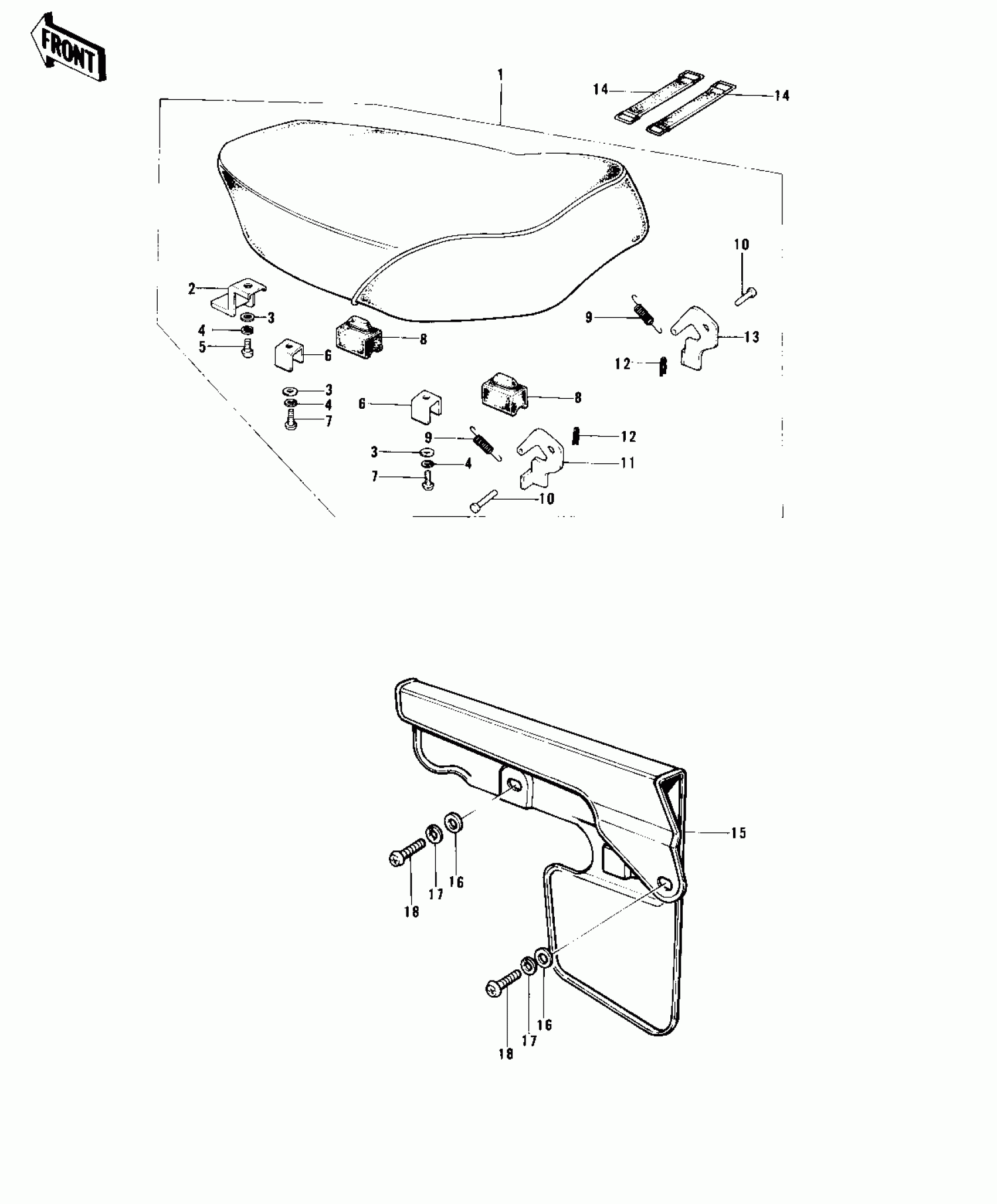

1975 Kawasaki MC1-B Seat/chain Cover Diagram

#

Description
Price
Status
Order Qty

1

SEAT-ASSY

53001-1018

Out of stock

2

BRACKET,SEAT

53032-004

Out of stock

3

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

4

WASHER SPRING 6MM

461F0600

Out of stock

5

SCREW-PAN-CROS,6X14

220B0614

Out of stock

6

SPRING,SEAT HOOK

53012-012

$2.58

In stock

7

SCREW PAN HEAD 6X12

220B0612

Out of stock

8

DAMPER

92075-099

Out of stock

9

SPRING,HOOK

53012-013

Out of stock

9

SPRING,HOOK

53012-013

Out of stock

10

$4.92

In stock

11

HOOK,L.H SEAT

53008-031

Out of stock

12

COTTER PIN

92041-003

Out of stock

13

HOOK,R.H SEAT

53008-032

Out of stock

14

BAND,L=50

92072-066

Out of stock

15

CASE-CHAIN

36014-1024

Out of stock

16

WASHER PLAIN 6MM

411B0600

Out of stock

17

WASHER SPRING 6MM

461F0600

Out of stock

18

SCREW PAN HEAD 6X12

220B0612

Out of stock
