Find the part on the Front Hub/brake diagram for your 1975 Kawasaki MC1-B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

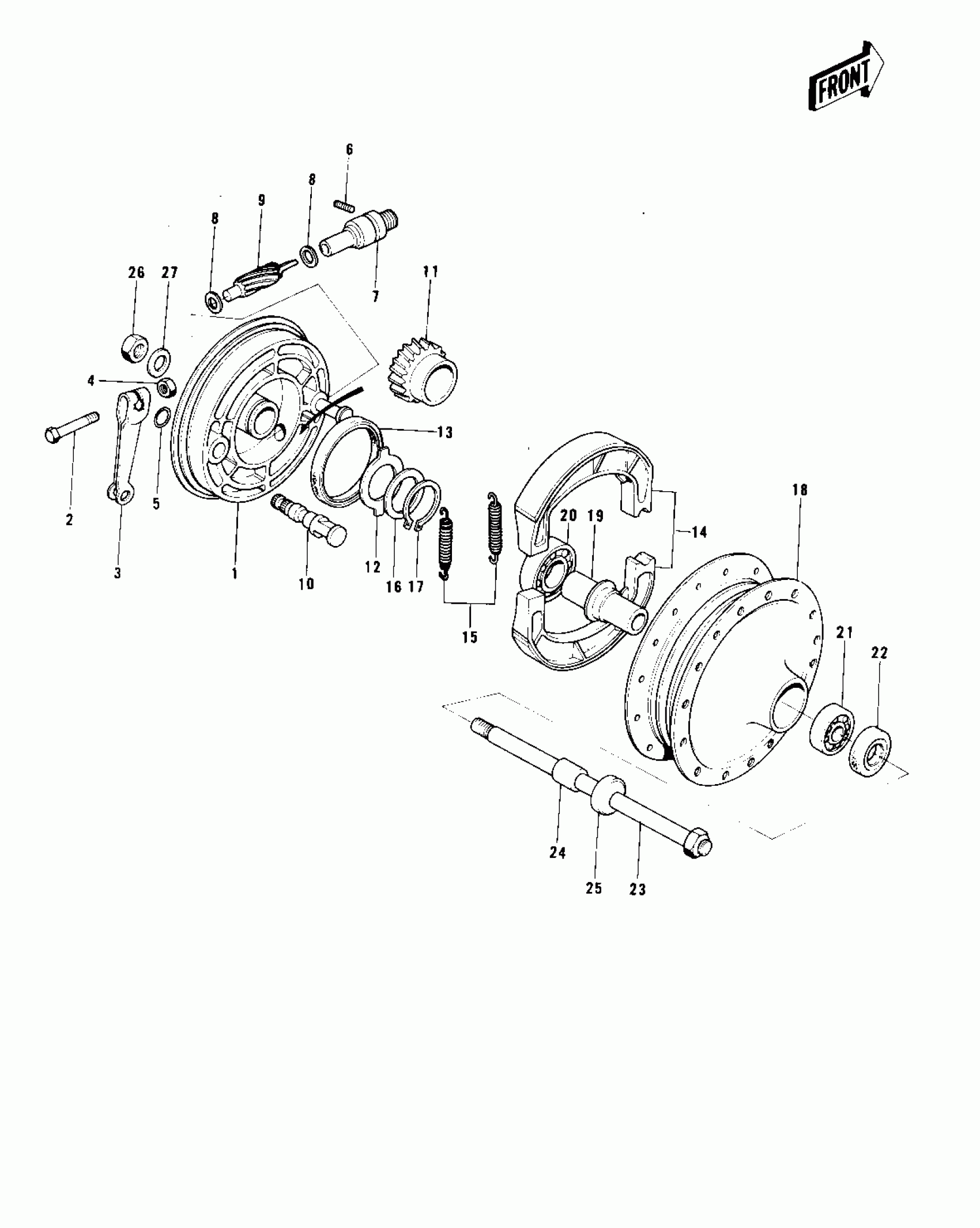

1975 Kawasaki MC1-B Front Hub/brake Diagram

#

Description
Price
Status
Order Qty

1~17

$178.13

In stock

2

BOLT-UPSET

112G0630

Out of stock

2

BOLT-UPSET

112G0630

Out of stock

3

LEVER-BRAKE CAM

41053-005

$12.24

In stock

4

NUT,6MM

41072-007

Out of stock

5

RING-O,BRAKE CAM

92055-004

Out of stock

6

PIN,SPRING

41082-001

Out of stock

7

$18.66

In stock

8

WASHER,5.1X9X0.4

41063-001

$4.17

In stock

9

PINION-SPEEDOMETER

41060-014

Out of stock

10

CAM-BRAKE

41050-018

$21.98

In stock

11

GEAR SPEEDOMETER

41059-002

$12.49

In stock

12

$1.85

In stock

13

SEAL-OIL,BRAKE PANEL

92050-002

Out of stock

14

SHOE-BRAKE

41048-1085

$20.89

In stock

15

SPRING,BRAKE SHOE

92081-1766

Out of stock

16

WASHER SPEED GR THRST

41065-002

Out of stock

17

CIRCLIP-TYPE-C,15MM

480J1500

Out of stock

18~22

DRUM-ASSY,FR BRK

41034-1040

Out of stock

19

COLLAR,L=51

41039-002

$10.54

In stock

20

BEARING BALL #6300Z

601B6300Z

Out of stock

21

BEARING BALL #6200

601B6200

Out of stock

22

OIL SEAL FRONT DRUM

92050-003

Out of stock

23

AXLE,FR

41068-039

Out of stock

24

COLLAR FRONT HUB R.H

41069-002

Out of stock

25

DUST SHIELD FRNT DRUM

41042-002

Out of stock

26

NUT,10MM

42045-005

Out of stock

27

WASHER-PLAIN,10MM

411B1000

Out of stock
