1975 Kawasaki MC1-B Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1975 Kawasaki MC1-B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

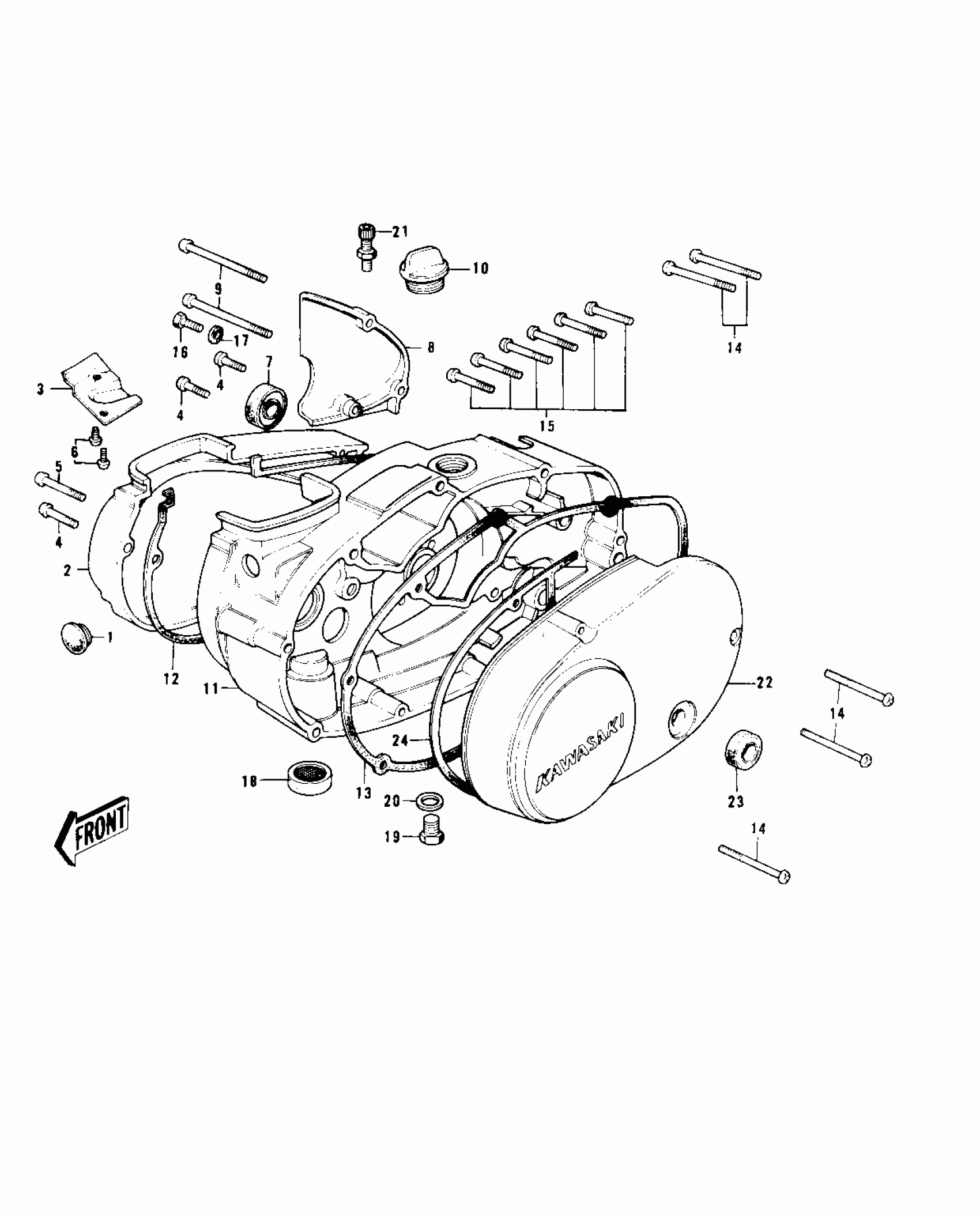

1975 Kawasaki MC1-B Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

CAP,RUBBER

14039-001

Out of stock

2

COVER,CARB.L.SILVER

14030-053-75

Out of stock

2

COVER,CARB BARREL

14030-1005

Out of stock

3

COVER,DRAIN PLUG

14025-1137

Out of stock

4

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

5

SCREW PAN HEAD 6X35

220B0635

Out of stock

6

SCREW PAN HEAD 6X12

220B0612

Out of stock

7

OIL SEAL TB14257

653B142507

Out of stock

8

COVER,OIL PUMP,L.SILV

14030-050-75

Out of stock

8

COVER,OIL PUMP,BUFF

14030-050-80

Out of stock

9

SCREW-PAN-CROS,6X75

220B0675

Out of stock

10

CAP-OIL FILLER

16115-018

Out of stock

11

COVER-CLUTCH,SILVER

14032-1025

Out of stock

11

COVER,R.H,ENG,BARREL

14032-1017

Out of stock

12

GASKET,CARBURETOR COVER

11060-1201

Out of stock

13

GASKET,CLUTCH COVER

11060-1198

Out of stock

14

SCREW PAN HEAD 6X45

220B0645

Out of stock

15

SCREW PAN HEAD 6X30

220B0630

Out of stock

16

BOLT,HEX HEAD,6X14

92001-121

Out of stock

17

WASHER OIL PUMP BANJO

92022-077

Out of stock

18

PLUG,25X12

16116-006

Out of stock

19

PLUG,DRAIN,10X12

92067-001

Out of stock

20

GASKET,10.5X16X1

92065-058

Out of stock

21

ADJUSTER-CABLE

16002-012

Out of stock

22

COVER,L.H ENG,SILVER

14031-078-75

Out of stock

22

COVER,L.H ENG.BUFF

14031-078-80

Out of stock

23

SEAL-OIL,SB12205

92049-004

Out of stock

24

GASKET,GENERATOR COVER

11060-1202

Out of stock
