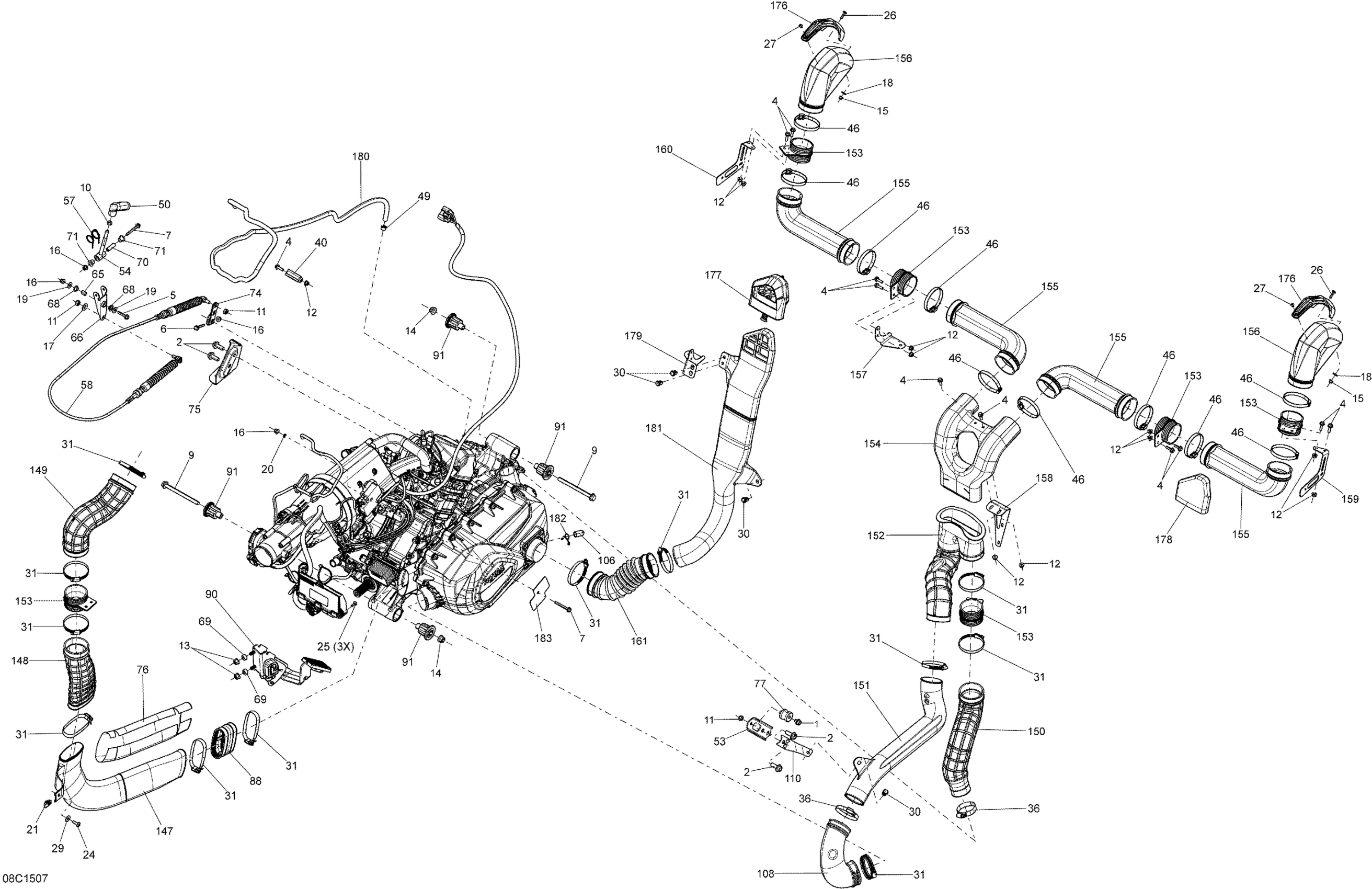

Can-Am Maverick 1000_XMR, 2015 Engine _08C1507 Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

Unavailable

2

Hex. Flange Screw M10 X 25

207602544

Unavailable

4

Hex. Flange Screw M6 X 20

207662054

$0.83

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6

Hex. Flange Screw M6 X 35

207663544

$0.74

7

Hex. Flange Screw M6 X 50

207665044

Unavailable

9

Hex. Flange Screw M10 X 125

230602546

Unavailable

10

Hex. Jam Nut M8

232180491

Unavailable

11

Hex. Elastic Stop Nut M8

232581414

Unavailable

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Hex. Flange Nut M8

233081416

Unavailable

14

Hex. Flange Elastic Nut M10

233201436

Unavailable

15

Elastic Flange Nut M5

233251494

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Flat Washer 10 mm

234001410

Unavailable

18

Flat Washer 5 mm, Stainless

234052600

Unavailable

19

Flat Washer 6 mm

234062410

$0.64

20

External Serrated Lock Washer 6 mm

234461608

Unavailable

21

Panel Nut M6 X 1.0

250100198

Unavailable

24

Torx Screw M6 X 20

250000722

Unavailable

25

Torx Screw K50 X 16

250000720

$1.39

26

Torx Screw M5 X 20

250000792

Unavailable

27

Torx Truss Screw K40 X 12

250000577

Unavailable

29

Flat Washer

250200082

Unavailable

30

Tuflok Plastic Rivet

293150230

Unavailable

31

Norma Clamp

293650091

Unavailable

36

Norma Gear Clamp

293650118

Unavailable

40

Hose Retainer

293650218

$8.45

46

Tie Rap 367mm | XMR

293750065

$3.85

49

Spring Clamp

414415200

$0.83

50

Lever Handle

707000284

$18.43

53

Upper Engine Bracket

707000707

$5.54

54

Upper Lever Arm

707000711

$36.89

57

Lever Arm Spring

707000750

$2.75

58

Shifting Cable

707000775

$64.58

65

Bushing

707000801

$2.48

66

Lower Lever Arm

707000828

$16.89

68

Flanged Bushing

707000847

$1.00

69

Bushing

707000848

$1.08

70

Bushing

707001376

$4.22

71

Flanged Bushing

707000869

$2.20

74

Lever

707000911

Unavailable

75

Cable Support | Engine 1000

707000919

$15.22

76

Reflective Sheet

707000924

$32.28

77

Rubber Isolator

707000949

Unavailable

88

Flexibale Adaptor

707002585

Unavailable

90

Accelerator Pedal

707001166

$281.51

91

Vibration Damper

707001169

Unavailable

106

Plug

707001185

Unavailable

108

Front Adaptor

707001229

$23.05

110

Front Support

707001231

$14.37

147

AIR INLET - Call your local BRP dealership | MAVERICK XMR

707001361

$16.89

148

AIR INLET - Call your local BRP dealership | XMR

707001377

$37.66

149

Air Inlet | XMR

707001378

$41.51

150

CVT Outlet | XMR

707001380

$64.58

151

Front CVT Outlet | XMR

707001381

$46.12

152

Front CVT Outlet | XMR

707001855

Unavailable

153

Adaptor | XMR

707001383

$10.98

154

DOUBLE CVT OUTLET - Call your local BRP dealership | Model-Black

707001766

Unavailable

154

GREEN DOUBLE CVT OUTLET - Call your local BRP dealership | Model-Digital Camo

707001629

$38.43

155

CVT Outlet | XMR

707001385

$46.12

156

Rear CVT Outlet | XMR

707001386

$46.12

157

Right Support | XMR

707001388

$17.66

158

Central Support | XMR

707001389

$27.66

159

LEFT SUPPORT - Call your local BRP dealership | XMR

707001390

Unavailable

160

Right Support | XMR

707001391

$27.66

161

Flexible Adaptor

707001400

$20.74

176

CAP - Call your local BRP dealership | XMR

707001479

$18.43

176

Manta Green - Cap | Model-Digital Camo

707001630

$20.74

177

Deflector | XMR

707001481

$41.51

178

CVT Filter | XMR

707001482

$16.12

179

Support | XMR

707001483

$27.66

180

Hose

219704549

Unavailable

181

AIR INLET - Call your local BRP dealership | XMR

707001640

Unavailable

182

Retainer Clip

707800506

Unavailable

183

Insulator Pad

710000073

Unavailable
