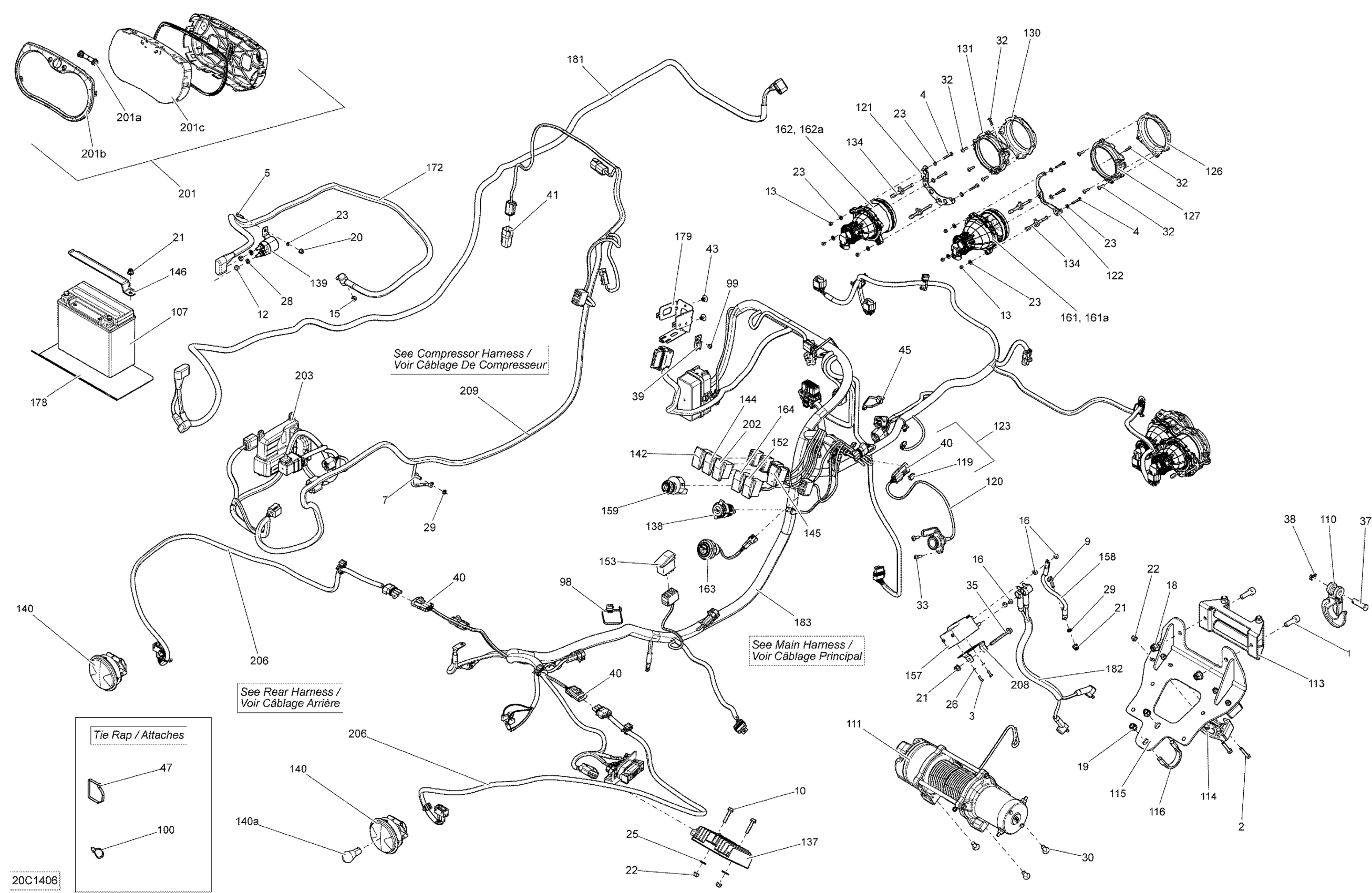

Can-Am Maverick 1000_XMR, 2014 Electrical System _20C1406 Diagram

#

Description
Price

1

Socket Screw M10 x 30 | XT

205003044

$3.00

2

Hex. Screw M6 X 40

207064044

$1.43

3

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

4

Hex. Screw M4 X 25

207142544

$1.87

5

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

9

Hex. Flange Screw M6 X 20

207662044

$1.91

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

12

Hex. Nut M6

232061600

$1.04

13

Elastic Stop Nut M4

232541414

$0.55

15

Elastic Stop Nut M6

232561414

$1.78

16

Elastic Stop Nut M6

232561434

$1.78

18

Hex. Flange Elastic Nut M10

233201414

$1.45

19

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

20

Hex. Flange Elastic Nut M5

233251414

$1.91

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

22

Hex. Flange Elastic Nut M6

233261494

$1.45

23

Flat Washer M5

234051410

$0.51

25

Stainless Steel Flat Washer

234062670

$2.00

26

Lock Washer 4 mm

234141601

$1.06

28

Lock Washer Helical M6

234161601

$1.06

29

External Serrated Lock Washer 6 mm

234461608

$1.06

30

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

Unavailable

32

Phillips Screw K40 X 16

250000723

$0.93

33

Torx Screw K50 X 16

250000720

$1.60

35

Hex. Flange Screw M6 X 60

250000778

$4.15

37

Clevis Pin

250400021

$11.48

38

Cotter Pin

250400022

$8.40

39

Clip

270000141

$9.57

40

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

41

Diagnostic Connector

278002704

$17.88

43

Pop Rivet 3/16"

293150103

$0.52

45

Mount Dart

293730040

$0.99

47

Tie Wrap 368 mm

293750008

$0.97

98

Clip Tie-Rap

293750063

$7.51

99

Pop Rivet 3/16"

390402400

$0.28

100

Tie-Rap 180 mm

414115200

$0.10

107

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

110

Winch Hook Kit

705014949

$23.10

111

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

113

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

114

CLAMP - Call your local BRP dealership

705006999

Unavailable

115

Winch Support

715001699

$143.25

116

U-Bolt M10

705203504

Unavailable

119

Clip

710000992

$3.88

120

Winch Connector

710001023

$47.73

121

RH High Light Support

710001115

$4.76

121

LH High Light Support

710001036

$4.76

122

RH Low Light Support

710001094

$8.15

122

LH Low Light Support

710001037

$8.15

123

Connector Ass'y | XT, Includes 55 to 57

710001059

$8.42

126

RH Low Front Housing

710001081

$16.39

126

LH Low Front Housing

710001083

$16.39

127

RH Low Rear Housing

710001082

$10.55

127

LH Low Rear Housing

710001084

$10.55

130

RH High Front Housing

710001085

$16.39

130

LH High Front Housing

710001087

$16.39

131

RH High Rear Housing

710001086

$10.55

131

LH High Rear Housing

710001088

$10.55

134

Setting Screw

710001147

$11.81

137

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

138

DC Outlet

710001248

$35.79

139

Starter Relay

710007777

$45.49

140

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

140a

Bulb

520000758

$8.60

142

Hi/Low Switch | Except Europe

710001725

$21.49

144

4X4 Switch

710001737

$29.82

145

Switch DPS

710001781

$22.24

146

Battery Holder

710001916

$16.39

152

Switch Winch

710002052

$28.18

153

Switch, Over ride

710002053

$19.27

157

Solenoid Kit | XT

715007084

$202.49

158

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

159

Ignition Switch

710008400

$72.36

161

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

161a

Halogen Bulb

415129249

$38.78

162

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

162a

Halogen Bulb

415129249

$38.78

163

Engine Start Button

710002594

$55.94

164

SWITCHED ACCESSORY - Call your local BRP dealership

710002684

Unavailable

172

Cable Positif *Cable-Positive

710004389

$32.81

178

Heat Deflector

710003265

$14.76

179

Fuse Holder

710003335

$8.60

181

WINCH CABLE - Call your local BRP dealership

710004391

Unavailable

182

WINCH CABLE - Call your local BRP dealership

710004392

Unavailable

183

WIRING HARNESS ASSY - Call your local BRP dealership | Main Harness

710004342

Unavailable

201

Multifunction Speedometer | XRS, XRS DPS

710004547

$394.00

201a

Speedometer Button | XTP

415129355

$13.52

201b

Gauge Ring

415129348

$11.36

201c

Lens | XTP

415129349

$22.36

202

Switch PPS Sport

710003541

$17.88

203

MODULE - Call your local BRP dealership

710003571

Unavailable

206

Rear Harness

710003680

$26.09

208

Support

710003827

Unavailable

209

WIRING HARNESS_COMPRESSOR - Call your local BRP dealership | XMR

710003839

Unavailable
