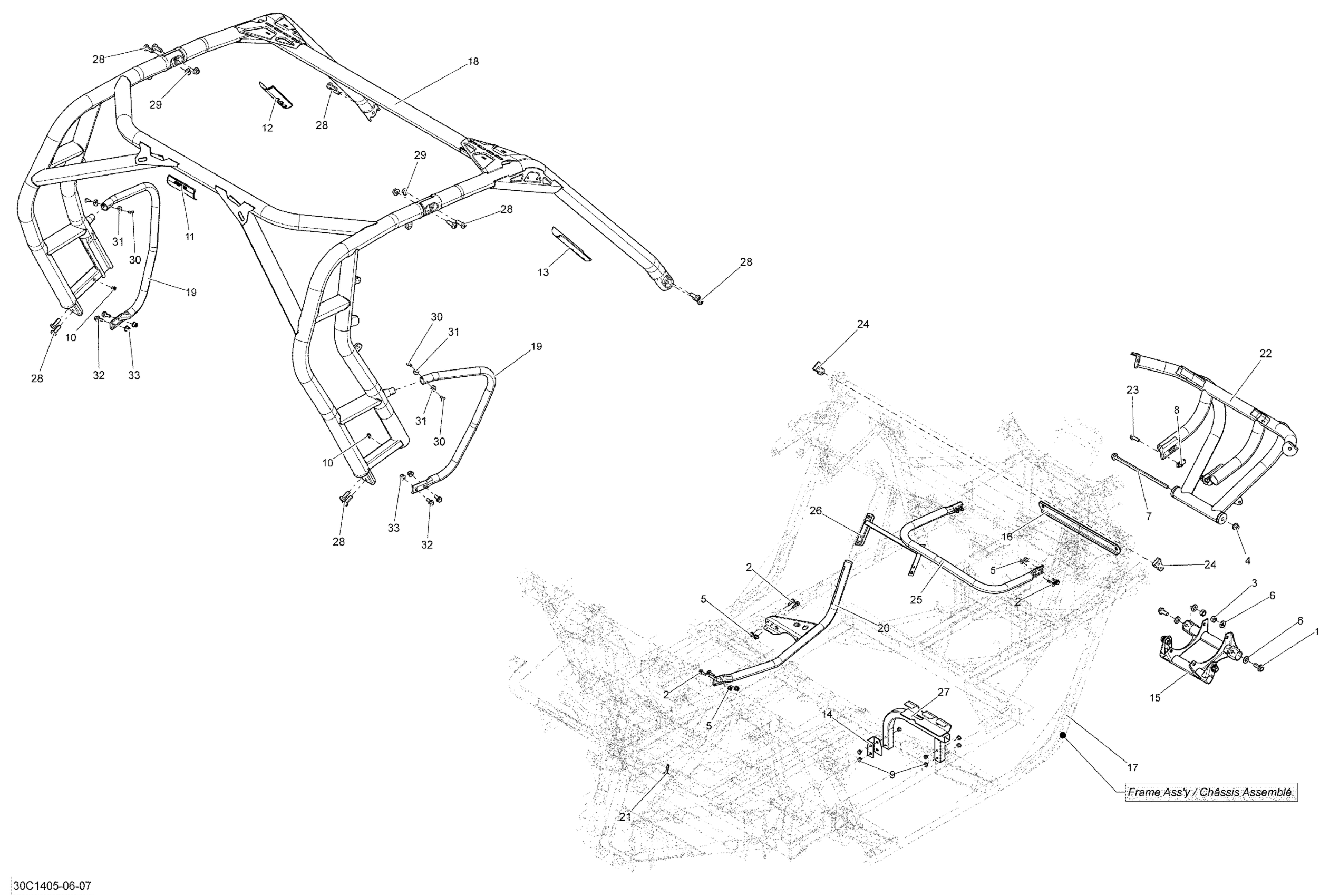

Can-Am Maverick 1000_XMR, 2014 Frame _30C1406 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 25

207602546

Unavailable

2

Hex. Flange Screw M6 X 20

207662044

Unavailable

3

Elastic Stop Nut M10

232500416

$1.56

4

Hex. Flange Elastic Nut M10

233201436

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

6

Conical Spring Washer 10 mm

234201474

Unavailable

7

Hex. Flange Screw

250000597

$10.30

8

Panel Nut M8 X 1.25

250100118

Unavailable

9

Hemlock Rivet, 6.5 mm

293150096

$3.17

10

Threaded Insert M6 X 1.0

250100242

Unavailable

11

Warning Label

704903492

Unavailable

12

Warning Label

704903679

Unavailable

13

Warning Label

704903680

Unavailable

14

Seat Support

705202602

Unavailable

15

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

16

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

Unavailable

17

Black Frame Ass'y

715002073

$1,859.99

18

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

19

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

Unavailable

19

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

20

HANDLE - Call your local BRP dealership

705203828

Unavailable

21

WELD SCREW - Call your local BRP dealership

732605024

Unavailable

22

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

23

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

24

Binding Block

705203415

Unavailable

25

Black Handle

705203332

Unavailable

26

Reinforcement Panel

705203330

Unavailable

27

Black Frame Ass'y

715002073

$1,859.99

28

Screw Pan M10 X 30

250000848

$1.56

29

Hex. Elastic Flange Nut , M10 X 1.5

233101464

Unavailable

30

Torx Truss M6X14

250000789

$4.41

31

Offset Washer

705202223

Unavailable

32

Hex. Flange Screw M8 X 20

207682044

Unavailable

33

Hex. Flange Elastic Nut M8

233281414

Unavailable
