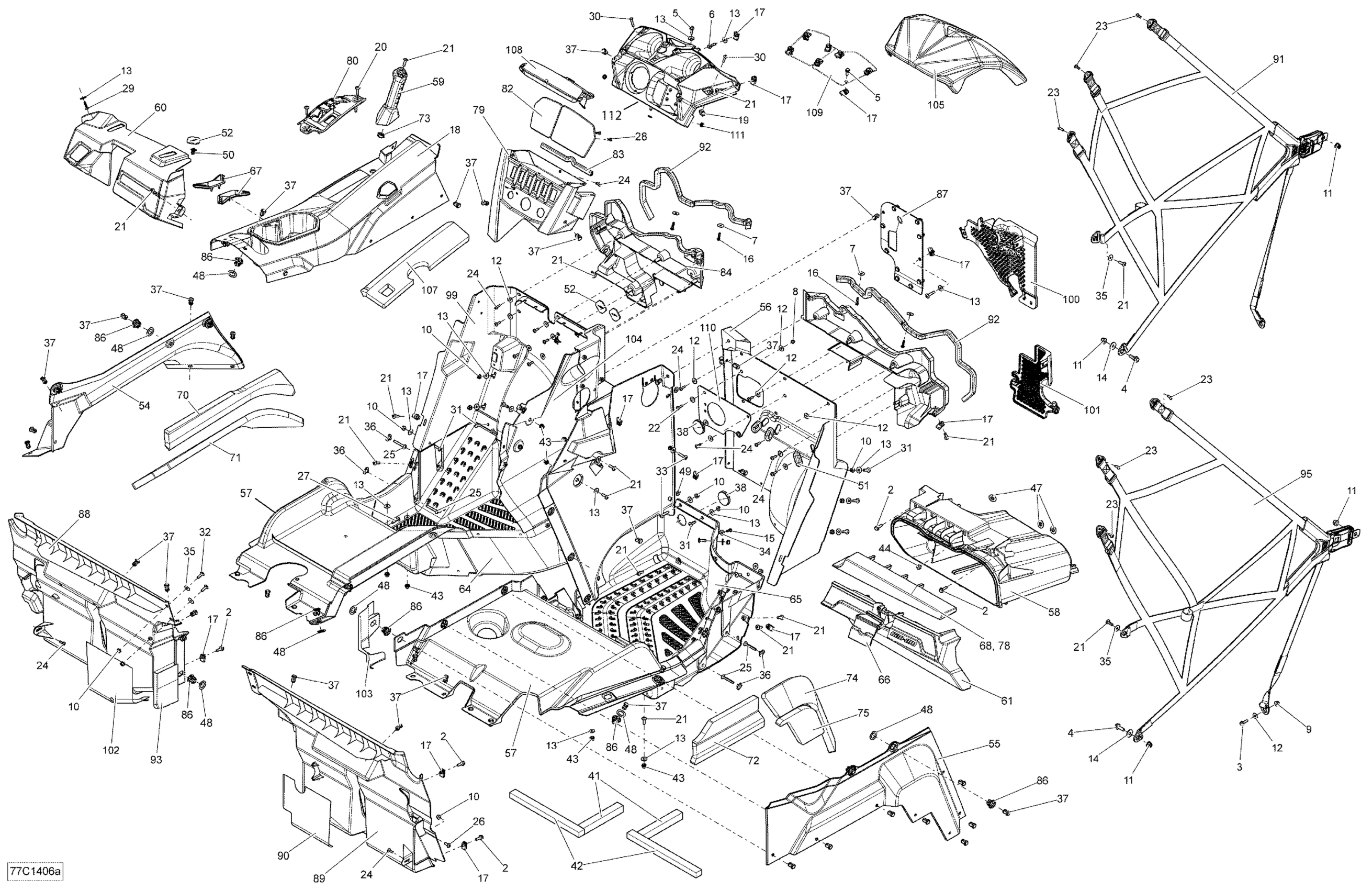

Can-Am Maverick 1000_XMR, 2014 Cab Interior _77C1406a Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662034

$1.74

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Screw M8 X 25

207682544

$0.90

5

Hexagonal Head Screw

210262050

$1.74

6

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

7

Flat Washer

224060201

$1.15

8

Elastic Flange Nut M5

233251494

$1.74

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Hex. Flange Elastic Nut M6

233261494

$1.26

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

Flat Washer 6 mm

234062410

$0.64

13

Stainless Steel Flat Washer

234062670

$1.74

14

Flat Washer 8 mm

234082410

$1.11

15

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

16

Hex. Flange Screw K50 X 20

241152060

$1.57

17

Panel Nut M6 X 1.0

250100198

$1.73

18

CENTRAL CONSOLE KIT - Call your local BRP dealership | Except Europe

715002912

Unavailable

19

Panel Nut M5 X 0.8

250000958

$3.48

20

Torx Screw M6 X 25 | XT Models

250000728

$3.61

21

Torx Screw M6 X 20

250000722

$1.34

22

Torx Screw M5 X 20

250000724

$1.39

23

Torx Screw M5 X 14

250000742

$1.20

24

Torx Screw K50 X 16

250000720

$1.39

25

Torx Screw M6 X 45

250000215

$1.56

26

Torx Screw M6 X 16

250000755

$0.72

27

Torx Screw M6 x 25

250000284

$1.74

28

Torx-Truss Pt K40 X 16

250000759

$1.74

29

Truss Head Torx Screw K50 X 20

250000297

$2.06

30

Torx Screw M5 X 25

250000762

$1.74

31

Hex. Socket Screw M6 X 20

250000770

$1.63

32

Torx Truss Screw M6 X 20

250000350

$4.39

33

Torx Truss Screw M6 X 30

250000843

$1.74

34

Washer M5

250200025

$0.61

35

Flat Washer

250200040

$1.82

36

Nut Welded, M6

293100003

$6.32

37

Tuflok Plastic Rivet

293150230

$1.21

38

Rubber Cover

293250242

$5.38

41

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable

42

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

43

Threaded Insert M6 X 1.0

250100242

Unavailable

44

Rubber Bumper

293830005

$5.33

47

CAP - Call your local BRP dealership

414859400

Unavailable

48

Washer

503189273

$3.20

49

Washer

506151252

$3.11

50

Edge Clip

517302785

$0.70

51

Oblong Grommet

705003668

$4.54

52

Support Plate

705003841

$0.91

54

LH Side Console

707900001

$41.51

55

RH Side Console

707900002

$36.89

56

RH Front Floor

707900004

$78.43

57

LH Under Seat Plate

707900218

$78.43

57

RH Under Seat Plate

707900006

$106.12

58

Storage Bin | XT

707900046

$96.89

59

Passenger Handle

707900011

$12.91

60

Dashboard Ass'y

715001250

$78.43

61

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

64

LH Lower Floor

707900022

$253.82

65

RH Lower Floor

707900023

$184.58

66

Latch

707900031

$8.29

67

Cup Retainer

707900036

$6.45

68

Trim Glove Box

707900062

$17.66

70

Left Upper Lateral Console Foam

707900620

$15.35

71

LH Lower Lateral Console Foam

707900621

$20.74

72

RH Lateral Console Foam

707900622

$15.35

73

Connector Tube

707900048

$6.45

74

RH Lateral Console Foam

707900623

$15.35

75

RH Lateral Console Foam

707900624

$15.35

78

Trim Glove Box

707900062

$17.66

79

Central Dashboard Ass'y

715002187

$36.89

80

Lever Indicator

707900070

$14.75

82

GPS Cover And Radio Control

707900104

$12.91

83

Was 271000110 Protection Trim

219704353

$15.03

84

Floor Support LH

707900561

$23.05

86

Insert

707900133

$2.75

87

Deflector | XRS-DPS

707900204

Unavailable

88

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership | LTD Model

707900165

Unavailable

89

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

90

Heat Shield

707900167

$8.45

91

Front LH Safety Net

707900237

$124.58

92

Was 293200017 Neoprene Seal

219704365

$118.27

93

Heat Shield

707900183

$5.52

95

Front RH Safety Net

707900238

$124.58

99

LH Front Upper Floor

707900175

$78.43

100

Grille

707900178

$9.18

101

Grille

707900180

$9.18

102

Heat Shield

707900182

$8.98

103

Heat Shield

707900184

$5.52

104

Front Side Dash Panel

707900193

$69.20

105

DASHBOARD CAP - Call your local BRP dealership

707900200

Unavailable

107

Front Central Console Foam

707900619

$16.12

108

CENTRAL FILTER - Call your local BRP dealership

707900215

Unavailable

109

DASHBOARD COVER - Call your local BRP dealership

707900216

Unavailable

110

Hose Support

707900217

$15.22

111

Push Nut

732610072

$1.72

112

Upper Central Console Ass'y

707900199

$41.51
