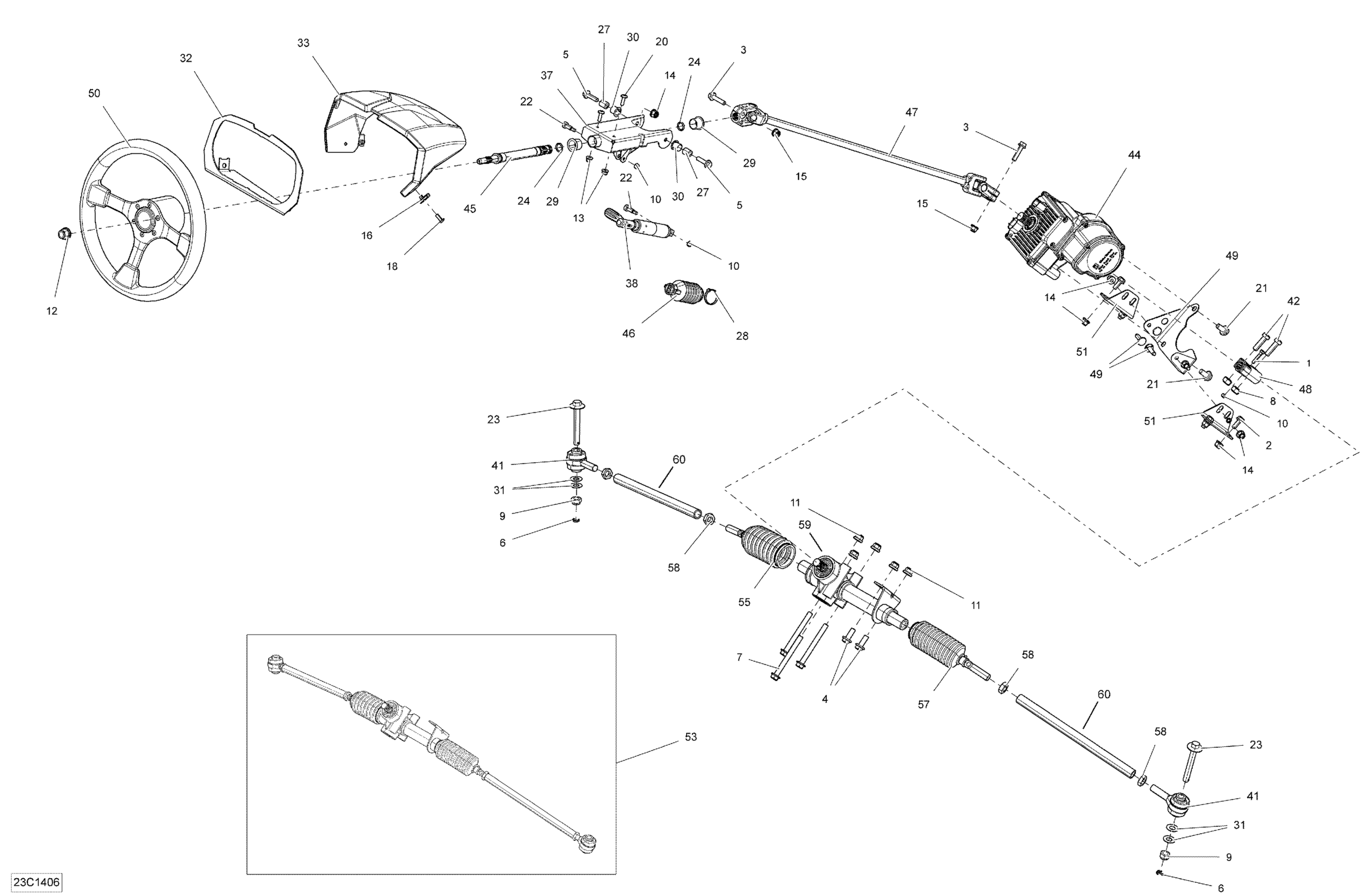

Can-Am Maverick 1000_XMR, 2014 Steering _23C1406 Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063044

$0.98

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

3

Hex. Flange Screw M8 X 35

250000986

$1.74

4

Hex. Flange Screw M10 X 25

207602546

$1.74

5

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

6

Cotter Pin

211400017

$0.25

7

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11

8

Elastic Stop Nut M10

232500416

$1.56

9

Elastic Stop Nut M12

232521416

$1.40

10

Elastic Stop Nut M6

232561414

$1.55

11

Hex. Flange Elastic Nut M10

233201436

$1.74

12

Hex. Flange Elastic Nut M12

233221414

$5.10

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Hex. Flange Elastic Nut M8

233281414

$1.14

15

Hex. Elastic Flange Nut M8

233281416

$1.25

16

Panel Nut M6 X 1.0

250100198

$1.73

18

Torx Truss Screw M6 X 16

250000721

$1.39

20

Torx Truss Screw M6 X 20

250000350

$4.39

21

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.72

22

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

23

Hexagonal Screw M12 X 88

250000657

$5.19

24

O-Ring

293300144

$3.98

27

Bushing

293900106

$4.42

28

Tie-Rap 180 mm

414115200

$0.09

29

Steering Bushing

709402725

$3.17

30

Bushing

705600799

$3.72

31

Hardened Washer

706200281

$2.34

32

Cluster Support | X, XT

707900013

$15.35

33

Upper Cluster Cover | X, XT

707900124

$15.35

37

Painted Steering Wheel Support

709401391

$83.05

38

Adjustment Cylinder

709402506

$69.20

41

Ball Joint

709401125

$50.34

42

Hex. Screw M10 X 35

207103586

$0.83

44

Power Steering

709401406

$1,624.99

45

Steering Shaft

709401167

$46.12

46

Boot Tube Side

709401232

$13.62

47

STEERING SHAFT ASS'Y - Call your local BRP dealership | XRS-DPS

709401293

Unavailable

48

COUPLING - Call your local BRP dealership

709401294

Unavailable

49

SUPPORT - Call your local BRP dealership

709401296

Unavailable

50

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

51

SUPPORT - Call your local BRP dealership

709401339

Unavailable

53

Control Rack Ass'y

709401441

Unavailable

55

Boot Kit, Pinion Side

715900235

$55.35

57

Boot Kit, Tube Side

715900236

$55.35

58

Steering Rod Nut

715900238

$2.31

59

Rack And Pinion Steering | XRS-DPS

709401236

$369.20

60

Tie Rod

709401427

$32.28
