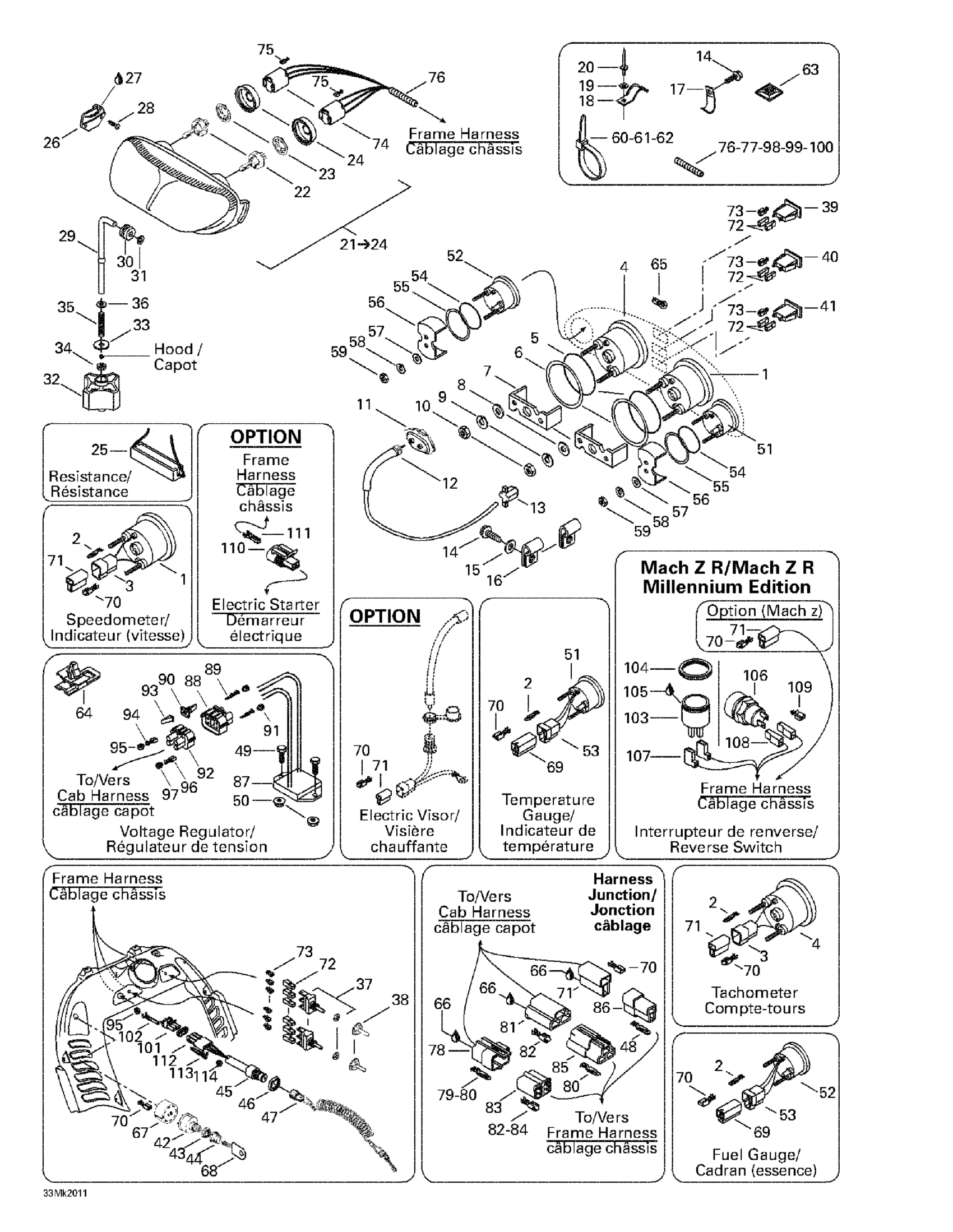

Ski-Doo Mach Z R Millennium Edition, 2000 Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Tachometer

515175340

Unavailable

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

Flat Washer

517225900

$0.17

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

515175218

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

$1.45

15

Washer | DS 650 X

391301600

$0.48

16

Open Clamp

414176000

$1.86

17

Cable Bracket

515175160

Unavailable

18

Bracket

517274400

Unavailable

19

Washer

517124300

$0.16

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

21

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

22

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

23

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

24

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

25

Resistance

515175241

$16.89

26

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

27

Grease Tube Lmz, 400 G

413707500

Unavailable

28

Headlamp Screw

732601315

Unavailable

29

ADJUSTER ROD - Call your local BRP dealership

517295800

$12.28

30

Grommet - Call your local BRP dealership

415100800

$3.97

31

Push Nut

732610072

$1.72

32

Handle - Call your local BRP dealership

515175548

$5.57

33

Washer

224060251

$0.57

34

Elastic Stop Nut M6

232561414

$1.55

35

SPRING - Call your local BRP dealership

415100600

$3.17

36

Flat Washer 6 mm

234061410

$1.04

37

Switch (Heating Grip) | FREERIDE

410107300

$34.58

38

Switch Cover

515175281

$15.03

39

Pilot Lamp (Red)

410109500

Unavailable

40

Pilot Lamp (Blue)

410109600

Unavailable

41

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

Pilot Lamp (Reverse/DESS) | Formula III 700 R.

515175137

Unavailable

42

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

43

FACE NUT - Call your local BRP dealership

410112100

$14.29

44

Switch Boot

570013700

$10.82

45

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

46

Safety Nut (DESS Switch)

278002963

$2.72

47

DESS

515178284

$81.51

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

51

Temperature Gauge

515175342

Unavailable

52

FUEL GAUGE - Call your local BRP dealership

515175343

$93.05

53

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

54

O-RING - Call your local BRP dealership

414807200

$3.14

55

WASHER - Call your local BRP dealership

517258600

$5.51

56

Case Holder

415099800

Unavailable

57

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

58

Lock Washer | SE Models

414833700

Unavailable

59

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

60

Tie Wrap 368 mm

293750008

$0.85

61

Tie-Rap 180 mm

414115200

$0.09

62

Tie Wrap 142 mm

293750002

$0.88

63

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

64

Housing Support

515175283

$8.43

65

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

66

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

67

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

$8.77

68

Blank Key

415129350

Unavailable

69

Female Housing

409204300

Unavailable

70

Female Terminal

561503100

Unavailable

71

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

72

Female Terminal Housing, 1 Circuit

409010400

$7.48

73

Female Terminal

409010100

$5.46

74

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

75

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

76

Was 409901800 Tubing (13 mm)

219704400

$9.40

77

Tubing 16 Mm 1000Mm Long

219704408

$6.23

78

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

79

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

80

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

81

Female Terminal Housing (3 circuits)

409008500

Unavailable

82

Female Terminal PACKARD

561503200

Unavailable

83

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

84

FEMALE TERMINAL - Call your local BRP dealership

515175313

$5.35

85

Male Terminal Housing (3 circuits)

409008600

Unavailable

86

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

87

Voltage Regulator | Includes 48 - 52.

515175491

Unavailable

88

Female Terminal Housing (4 circuits)

409208000

Unavailable

89

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

90

Female Lock

409013400

Unavailable

91

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

92

Male Terminal Housing (4 circuits)

409207700

Unavailable

93

Male Lock

409013100

Unavailable

94

Male Terminal

409010900

Unavailable

95

Seal

409208300

Unavailable

96

Male Terminal

409013000

Unavailable

97

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

98

Was 409901700 Tubing (9 mm)

219704399

$79.97

99

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

100

Tubing 10 MM 1000MM Long

219704407

$2.20

101

Male Housing, 3 Circuits

278000273

$7.59

102

Female Terminal

278000223

$2.55

103

HORN - Call your local BRP dealership

515176035

$83.05

104

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

105

Silicone Sealant 51388, 300 ml

296000309

$35.72

106

Push Button

415130372

$124.99

107

Female Terminal

409010300

$4.12

108

Female Terminal Housing, 1 Circuit

409010400

$7.48

109

Female Terminal

409010100

$5.46

110

Male Connector, 2 Circuits

278001113

$12.65

111

Female Terminal

278001114

$2.55

112

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

113

Male Terminal | XT Models

278000222

$2.55

114

Wire Seal

278000218

$3.48
