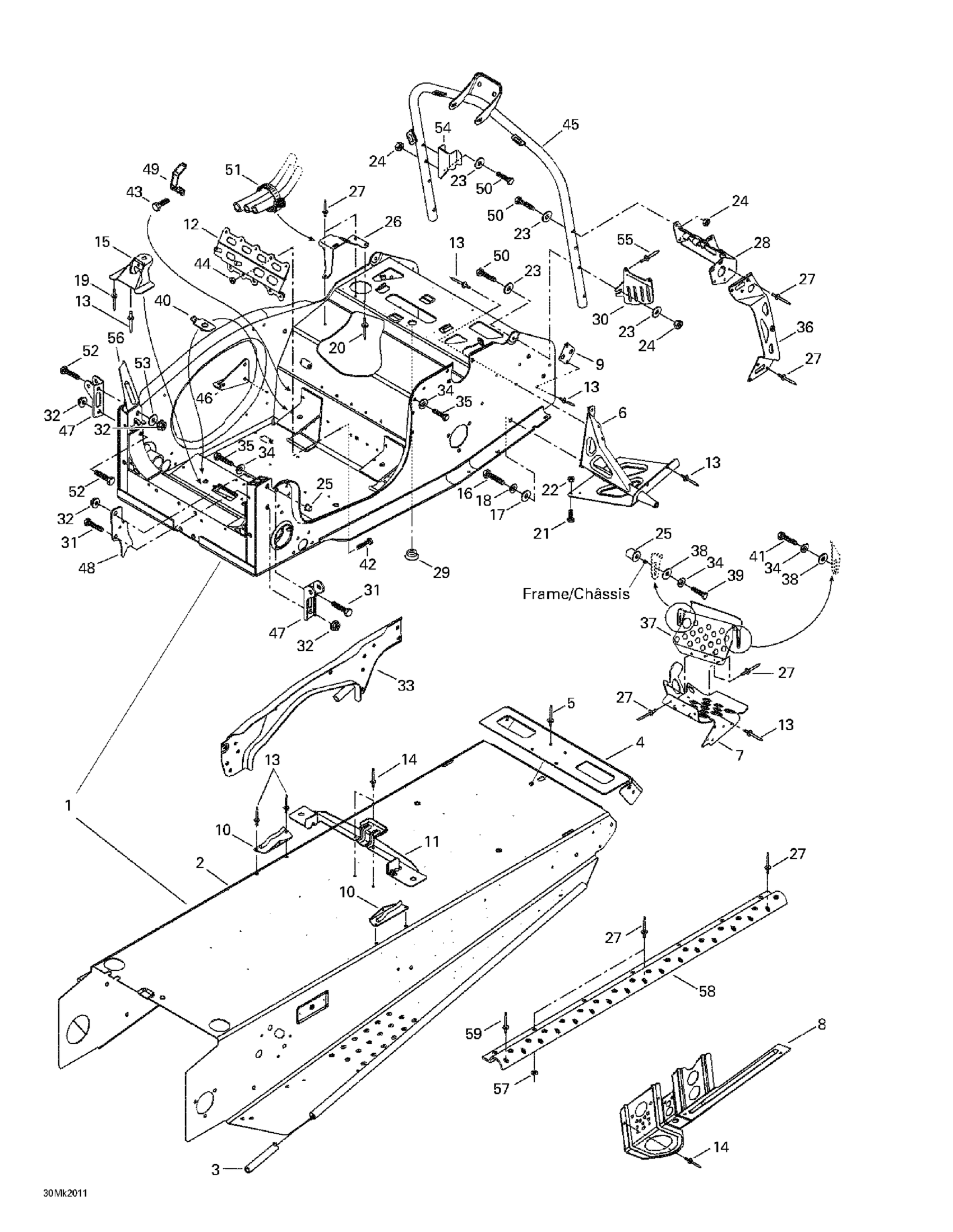

Ski-Doo Mach Z R Millennium Edition, 2000 Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 22. (Radiator and Radiator Protector Included)

518322103

Unavailable

2

Tunnel | Includes 2 - 5.

518322107

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Cap-End

518321301

Unavailable

5

Pop Rivet 3/16"

390402200

$0.26

6

RH Footrest Support

518317522

Unavailable

LH Footrest Support

518317523

Unavailable

7

RH Footrest

518321433

Unavailable

LH Footrest

518321434

Unavailable

8

Rear Bracket R.H

518321447

Unavailable

Rear Bracket L.H

518321448

Unavailable

9

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

$7.08

10

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

11

Seat Bracket

518317506

Unavailable

12

Steering Support

518317510

Unavailable

13

Pop Rivet 3/16"

390402200

$0.26

14

Pop Rivet 3/16"

390402400

Unavailable

15

Pivot Arm Support

518317509

Unavailable

16

Hex. Screw M10 X 35

207103544

Unavailable

17

Flat Washer 10 mm

234001410

Unavailable

18

Lock Washer M10

234101402

Unavailable

19

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

20

Chobert Rivet

390911200

Unavailable

21

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

22

Hex. Flange Elastic Nut M5

233251414

Unavailable

23

Flat Washer

224061121

$0.44

24

Elastic Stop Nut M6

232561414

Unavailable

25

Insert

293450275

Unavailable

26

Guide

518317556

Unavailable

27

Pop Rivet 3/16"

390402200

$0.26

28

RH Upper Bracket

518321572

Unavailable

LH Upper Bracket

518317543

Unavailable

29

CAP - Call your local BRP dealership

414859400

$2.78

30

Belt Protector

518317572

Unavailable

31

Hex. Screw M8 X 50

207085044

Unavailable

32

Hex. Flange Elastic Nut M8

233281414

Unavailable

33

Strap

518317515

Unavailable

34

Lock Washer M6, Black

234161471

$0.52

35

Hex. Screw M6 X 18

207161844

Unavailable

36

RH Vertical Bracket

518317520

Unavailable

LH Vertical Bracket

518317521

Unavailable

37

RH Holding Toe

518317531

Unavailable

LH Holding Toe

518317532

Unavailable

38

Flat Washer

224061201

Unavailable

39

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

40

Plate

518317507

Unavailable

41

Hex. Screw M6 X 16

207161644

Unavailable

42

Hex. Screw M5 X 14

207151444

Unavailable

43

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

44

Elastic Stop Nut M5

232551414

Unavailable

45

Handle Steering Support

518321511

Unavailable

46

Muffler Support

518317553

Unavailable

47

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

48

Heat Shield

518321421

Unavailable

49

Tubing 6 mm

515175422

Unavailable

50

Hex. Flange Screw M6 X 35

207063544

$1.35

51

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

52

Hex. Screw M8 X 55

207085544

$1.62

53

Yellow, Washer

503183200

Unavailable

54

Cable Support

515175149

Unavailable

55

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

56

Support

514052788

Unavailable

57

Washer

517124300

Unavailable

58

Strip (Chrome) | Mach Z R Millennium Edition.

518321980

Unavailable

59

Pop Rivet 3/16"

390402300

Unavailable
