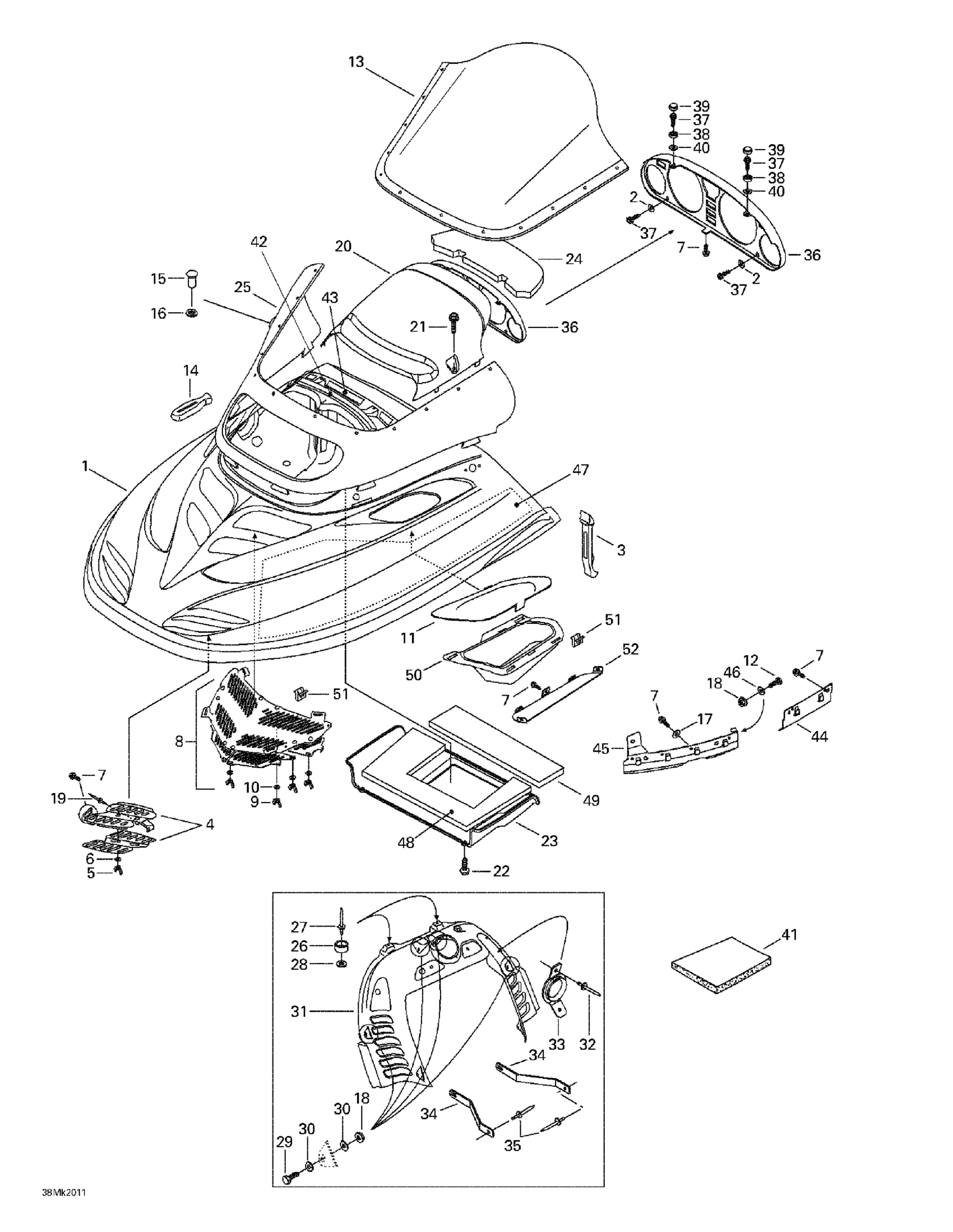

Ski-Doo Mach Z R Millennium Edition, 2000 Cab, Console Diagram
#
1
Hood | GT 700. GT SE Millennium Edition.
517302170
Unavailable
2
Washer
517124300
Unavailable
3
Hood Latch
517302152
Unavailable
4
RH Front Grille Ass'y | Includes 3 - 5.
517302205
Unavailable
RH Front Grille Ass'y | GT SE Millennium Edition.
517302406
Unavailable
LH Front Grille Ass'y
517302208
Unavailable
LH Front Grille Ass'y | GT SE Millennium Edition.
517302407
Unavailable
5
Wing Nut M5
414070300
Unavailable
6
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
7
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
8
Center Grill Ass'y | Includes 8 - 14.
517302073
Unavailable
Center Grille Ass'y | GT SE Millennium Edition.
517302408
Unavailable
9
Wing Nut M5
414070300
Unavailable
10
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
11
RH Grille
517302156
Unavailable
RH Grille | GT SE Millennium Edition.
517302390
Unavailable
LH Grille
517302167
Unavailable
LH Grille | GT SE Millennium Edition.
517302389
Unavailable
12
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
13
Low Windshield
415045800
Unavailable
14
Windshield Latch
570023800
Unavailable
15
STUD - Call your local BRP dealership
572103500
Unavailable
16
Push Nut
732610072
Unavailable
17
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
18
Hex. Flange Elastic Nut M5
233251414
Unavailable
19
Pop Rivet 3/16"
390402400
Unavailable
20
Air Intake Deflector
572107300
Unavailable
22
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
23
Plate
572087800
Unavailable
24
Filter Foam
415123100
Unavailable
25
Windshield Support
517302076
Unavailable
27
Pop Rivet 1/8" | SM5
390401600
Unavailable
28
WASHER - Call your local BRP dealership
293150007
Unavailable
30
Washer | DS 650 X
391301600
Unavailable
31
Console
517302249
Unavailable
32
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe
390409400
Unavailable
33
Rope Guide
517296800
Unavailable
34
Bracket
517296900
Unavailable
36
Gauge Support
572098600
Unavailable
39
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
40
Flat Washer 4 mm, Stainless
234042600
Unavailable
41
Acoustic Foam
414632400
Unavailable
Acoustic Foam
414631900
Unavailable
42
Deflector Foam
415045500
Unavailable
43
VELCRO 1/2? - Call your local BRP dealership
415110900
Unavailable
44
Hood Guide
517302108
Unavailable
45
RH Hood Guide
517301200
Unavailable
LH Hood Guide
517301300
Unavailable
46
WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.
420845330
Unavailable
47
LH Side Foam
517302184
Unavailable
RH Side Foam
415045100
Unavailable
48
Center Foam
415045300
Unavailable
49
Rear Foam
415045400
Unavailable
50
Inlet Duct
517302155
Unavailable
51
Edge Clip
517302785
Unavailable
52
Plate
517302414
Unavailable
