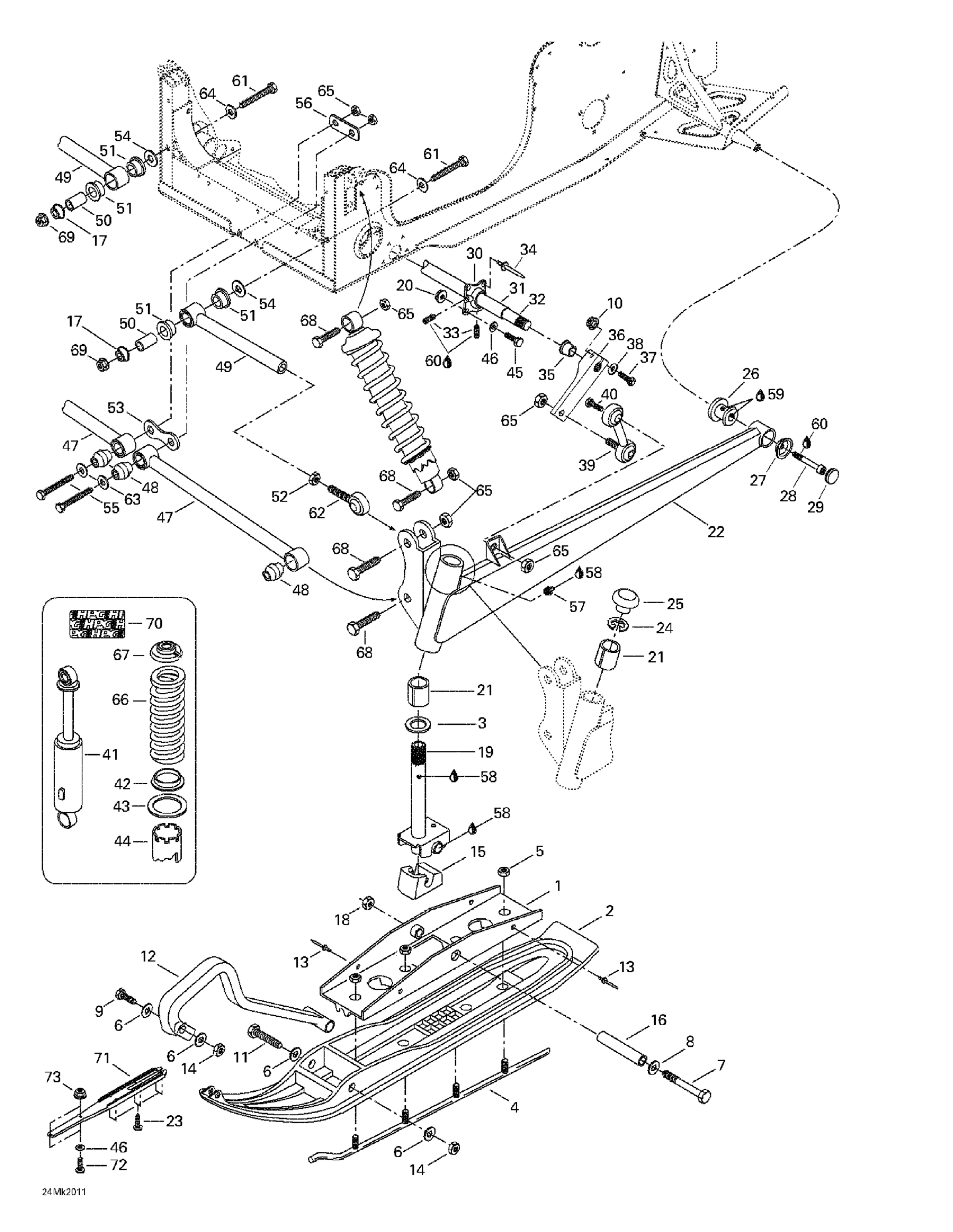

Ski-Doo Mach Z R Millennium Edition, 2000 Front Suspension And Ski Diagram
#
1
Bridge-ass'y | Includes 2 - 3.
505070055
Unavailable
Bridge Ass'y
505070479
Unavailable
2
Ski-Liner Flex
505070189
Unavailable
3
WASHER - Call your local BRP dealership
505070004
Unavailable
4
CARBIDE RUNNER - Call your local BRP dealership
860501900
Unavailable
6
Flat Washer 8 mm
234081410
Unavailable
7
HEX. SCREW M10 X 110 - Call your local BRP dealership
250000001
Unavailable
8
Washer
732900049
Unavailable
9
Hex. Screw M8 X 50
207085044
Unavailable
10
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
12
Black, Handle
505070963
Unavailable
13
RIVET_POP 1/4 - Call your local BRP dealership
390911100
Unavailable
14
Hex. Elastic Stop Nut M8
232581414
Unavailable
15
SKI STOPPER - Call your local BRP dealership
505072018
Unavailable
16
Spacer
506133300
Unavailable
17
Spacer
506148400
Unavailable
19
Ski Leg
506151234
Unavailable
20
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
21
Cushion
505070003
Unavailable
22
RH Swing Arm | Mach Z. Mach Z R.
505070382
Unavailable
RH Swing Arm | GT SE Millennium Edition.
505070463
Unavailable
LH Swing Arm | Mach Z. Mach Z R.
505070383
Unavailable
LH Swing Arm | GT SE Millennium Edition.
505070464
Unavailable
23
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
24
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
26
Damper
570062700
Unavailable
27
Cup
506128500
Unavailable
28
Socket Head Screw M10 X 25
205002544
Unavailable
29
CAP - Call your local BRP dealership
572045900
Unavailable
30
RH Housing
505070276
Unavailable
LH Housing
506138900
Unavailable
31
Main Tube
506136200
Unavailable
32
Stabilizator
506134300
Unavailable
34
Rivet pop 1/4"
390404900
Unavailable
36
Stabilizer Lever
506134402
Unavailable
Stabilizer Lever | GT SE Millennium Edition.
505070478
Unavailable
37
Hex. Screw M8 X 45
207084544
Unavailable
38
Flat Washer 8 mm
234081410
Unavailable
39
Double Ball Joint
415101400
Unavailable
40
Hex. Screw M10 X 35
207103544
Unavailable
41
FRONT SHOCK - Call your local BRP dealership | Includes 44 - 47.
505070518
Unavailable
42
Spring Guide
415052800
Unavailable
43
Thrust Washer
415052900
Unavailable
44
Cam
415109900
Unavailable
45
Hex. Screw M6 X 25
207162544
Unavailable
46
Flat Washer 6 mm
234061410
Unavailable
47
Lower Arm Ass'y | Includes 57 - 58.
505070140
Unavailable
48
Bushing
505070025
Unavailable
49
Adjustable Arm Ass'y | Includes 52 - 54.
505070131
Unavailable
50
Bushing
505070143
Unavailable
51
CUSHION - Call your local BRP dealership
506149100
Unavailable
52
Nut Hexagonal RH.
232026414
Unavailable
53
Plate
506147900
Unavailable
54
WASHER - Call your local BRP dealership
506148100
Unavailable
55
Hex. Screw M10 x 85
207008544
Unavailable
56
Plate
506148300
Unavailable
57
Grease Fitting
408200700
Unavailable
58
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
59
Grease, Super Lube
293550030
Unavailable
60
Loctite 271, 10 ml
293800005
Unavailable
61
HEX. SCREW M10 X 110 - Call your local BRP dealership
230001044
Unavailable
62
Ball Joint
415068400
Unavailable
64
Flat Washer
399910100
Unavailable
66
Spring (Yellow)
415075900
Unavailable
Spring (Yellow) | Mach Z R Millennium Edition.
505070473
Unavailable
70
HPG Decal (Europe)
516000182
Unavailable
71
PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership | GT
505070232
Unavailable
72
Socket Head Screw M5 x 25 (Europe) | 500 F.
250000015
Unavailable
73
Hex. Flange Elastic Nut M5
233251414
Unavailable
