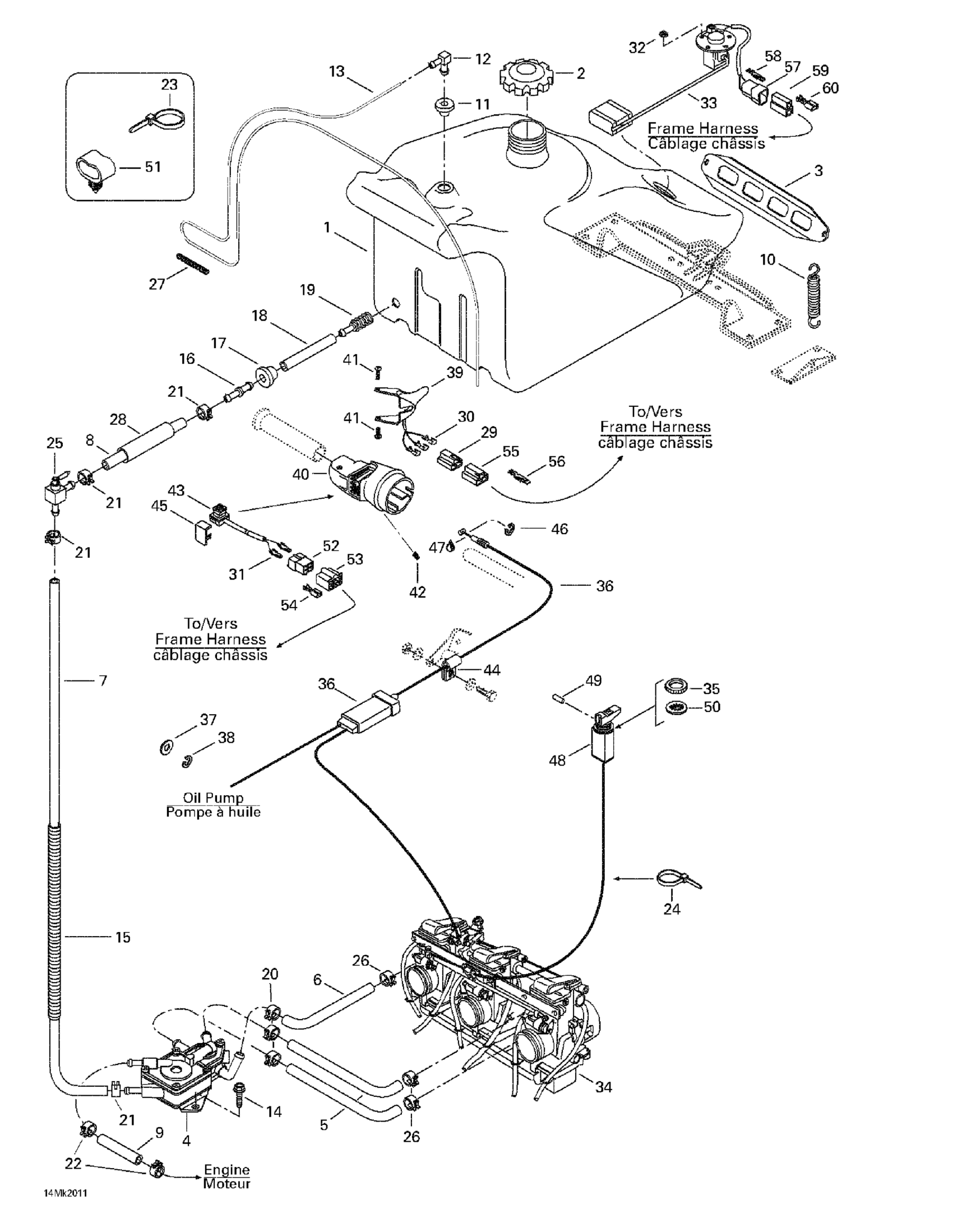

Ski-Doo Mach Z R Millennium Edition, 2000 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513032926

Unavailable

2

Fuel Tank Cap 91 Octane

513033722

$23.05

3

Fuel Tank Bracket

517249200

Unavailable

4

FUEL PUMP - Call your local BRP dealership

513032929

Unavailable

5

Polyurethane Hose 10000Mm Long

219704410

Unavailable

6

Formed Hose | Formula III 800.

415120800

Unavailable

7

FORMED HOSE - Call your local BRP dealership

513032949

Unavailable

8

HOSE - Call your local BRP dealership

513032965

Unavailable

9

Hose

219704549

Unavailable

10

Spring

415107100

$6.20

11

Grommet

513032908

$8.74

12

Male Connector

414814100

$2.18

13

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

14

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

15

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

16

Male Connector

414872700

Unavailable

17

Grommet | Europe

707800347

Unavailable

18

POLYURETHANE HOSE 7.6MM - Call your local BRP dealership

415097800

Unavailable

19

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

20

Spring Clamp

414420700

Unavailable

21

Spring Clamp

414655700

Unavailable

22

Spring Clamp

414415200

$0.83

23

Tie-Rap 180 mm

414115200

$0.09

24

Tie-Rap 180 mm

414115200

$0.09

25

Shut-Off Valve

415112200

Unavailable

26

Spring Clamp

414554800

$0.83

27

Spring

513032961

Unavailable

28

Hose (Rubber)

513032941

Unavailable

29

Female Terminal Housing (3 circuits)

409008500

Unavailable

30

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

31

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

32

Elastic Stop Nut M5

232551414

Unavailable

33

Fuel Sensor Ass'y | Includes 46 - 49.

415080800

Unavailable

34

Carburetor Kit TM38-C272 | Includes 1 - 76.

403138610

Unavailable

35

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

36

Throttle Cable | Formula III 800.

512059059

Unavailable

37

Flat Washer 8 mm, Nylon

234081100

$1.00

38

Circlip

414753500

$0.59

39

Heat Throttle Handle (26 mm)

512059159

Unavailable

40

Throttle Handle Housing

572098800

Unavailable

41

Flange Screw

732601143

$4.02

42

Socket Set Screw M8 X 10

414440800

$4.00

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

44

Open Clamp

414176000

$1.86

45

Switch Cover

572100901

Unavailable

46

Circlip

414274500

Unavailable

47

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

48

Choke Cable Ass'y | Includes 13 - 14.

561205500

Unavailable

49

Spring Pin

372118400

Unavailable

50

Lock Washer, Interior Teeth

394103300

Unavailable

51

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

52

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

53

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

54

Female Terminal PACKARD

561503200

Unavailable

55

Male Terminal Housing (3 circuits)

409008600

Unavailable

56

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

57

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

58

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

59

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

60

Female Terminal

561503100

Unavailable
