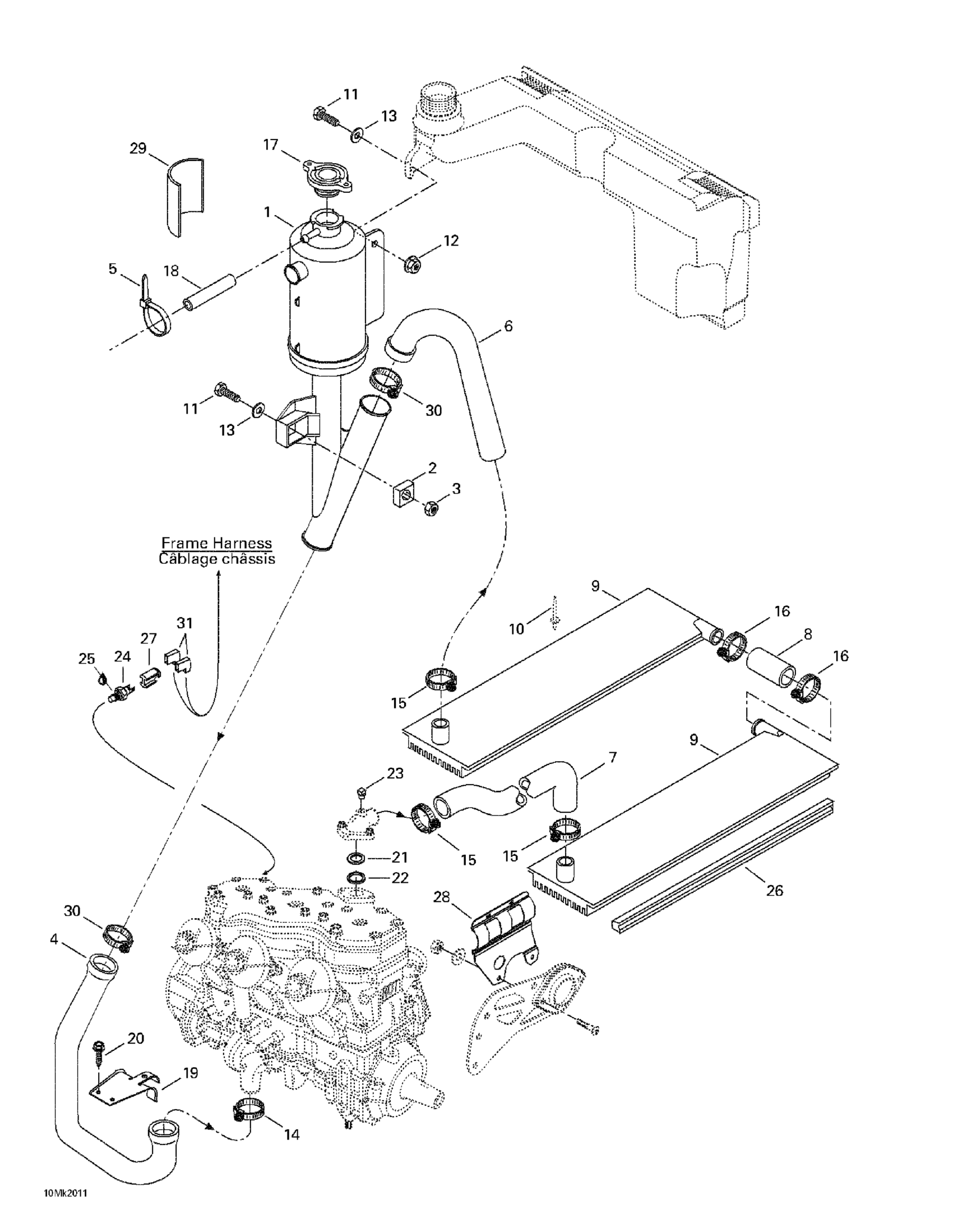

Ski-Doo Mach Z R Millennium Edition, 2000 Cooling System Diagram
#
Description
Price
1
Coolant Tank Ass'y | Includes 1 - 3.
509000049
Unavailable
2
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
3
Hex. Nut M6
232061600
Unavailable
4
Engine Inlet Hose
509000026
Unavailable
6
Radiator Outlet Hose
415047000
Unavailable
7
RADIATOR INLET HOSE - Call your local BRP dealership
415047100
Unavailable
8
Radiator Hose
414795800
Unavailable
9
RH Radiator
517280510
Unavailable
LH Radiator
517280511
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Hex. Screw M6 X 25
207162544
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
Norma Gear Clamp
293650098
Unavailable
15
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
16
Clamp Tridon
408803400
Unavailable
17
Pressure Cap
509000187
Unavailable
18
Polyurethane Hose 10000Mm Long
219704410
Unavailable
19
Hose Protector
509000037
Unavailable
21
RETAINING DISK - Call your local BRP dealership
420927745
Unavailable
22
SEALING RING - Call your local BRP dealership
420931270
Unavailable
23
PLUG SCREW - Call your local BRP dealership
420240480
Unavailable
24
Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.
414728700
Unavailable
25
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
26
Radiator Protector
415056500
Unavailable
27
Connector Plug | Grand Touring 500.
515175297
Unavailable
28
HOSE PROTECTOR - Call your local BRP dealership
509000042
Unavailable
29
Reflective Sheet
514052952
Unavailable
30
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
