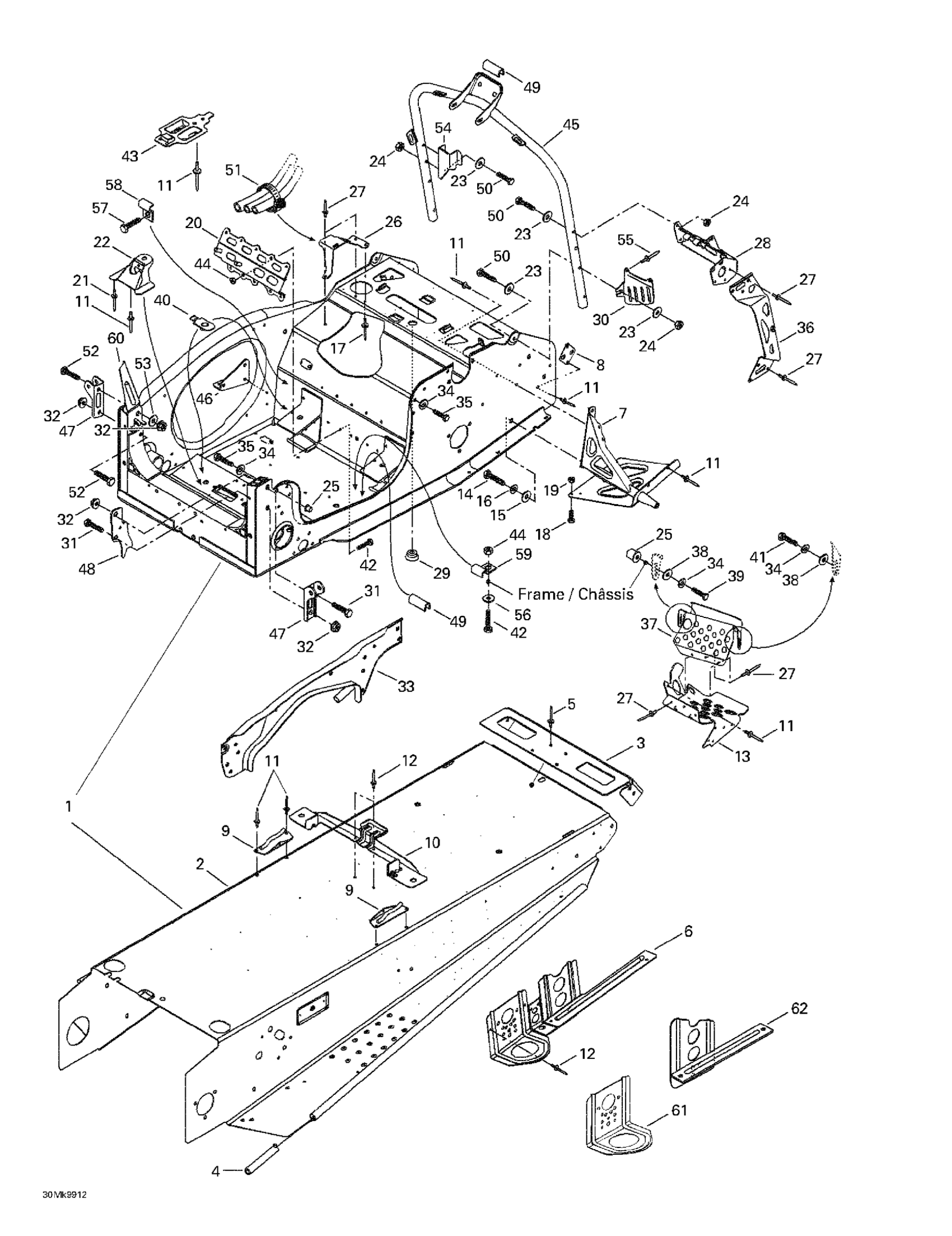

Ski-Doo Mach Z LT R, 1999 Frame And Accessories Diagram
#
1
Frame Ass'y | Includes 1 - 22.
518321630
Unavailable
Frame Ass'y | Mach Z LT. Mach Z LT R.
518321632
Unavailable
Frame Ass'y | Mach Z M.H. R.
518321650
Unavailable
2
Tunnel | Includes 2 - 4.
518321658
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
3
Cap-End
518321301
Unavailable
Rear Cap
518321302
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
4
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
6
Rear Bracket R.H
518321447
Unavailable
Rear Bracket L.H
518321448
Unavailable
7
RH Footrest Support
518317522
Unavailable
LH Footrest Support
518317523
Unavailable
9
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
10
Seat Bracket
518317506
Unavailable
12
Pop Rivet 3/16"
390402400
Unavailable
13
RH Footrest
518321433
Unavailable
LH Footrest
518321434
Unavailable
14
Hex. Screw M10 X 35
207103544
Unavailable
15
Flat Washer 10 mm
234001410
Unavailable
16
Lock Washer 10 mm
224701170
Unavailable
17
Chobert Rivet
390911200
Unavailable
18
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
19
Hex. Flange Elastic Nut M5
233251414
Unavailable
20
Steering Support
518317510
Unavailable
21
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
22
Pivot Arm Support
518317509
Unavailable
24
Elastic Stop Nut M6
232561414
Unavailable
25
Insert
293450275
Unavailable
26
Guide
518317556
Unavailable
28
RH Upper Bracket
518321572
Unavailable
LH Upper Bracket
518317543
Unavailable
30
Belt Protector
518317572
Unavailable
31
Hex. Screw M8 X 50
207085044
Unavailable
32
Hex. Flange Elastic Nut M8
233281414
Unavailable
33
Strap
518317515
Unavailable
35
Hex. Screw M6 X 18
207161844
Unavailable
36
RH Vertical Bracket
518317520
Unavailable
LH Vertical Bracket
518317521
Unavailable
37
RH Holding Toe
518317531
Unavailable
LH Holding Toe
518317532
Unavailable
38
Flat Washer
224061201
Unavailable
40
Plate
518317507
Unavailable
41
Hex. Screw M6 X 16
207161644
Unavailable
42
Hex. Screw M5 X 14
207151444
Unavailable
43
Electrical Box Support
518317554
Unavailable
44
Elastic Stop Nut M5
232551414
Unavailable
45
Handle Steering Support
518321511
Unavailable
46
Muffler Support
518317553
Unavailable
LH Shock Bracket
518317519
Unavailable
48
Heat Shield
518321421
Unavailable
49
TRIM 30000MM LONG - Call your local BRP dealership
219704405
Unavailable
51
TRIDON GEAR CLAMP - Call your local BRP dealership
408801900
Unavailable
53
Yellow, Washer
503183200
Unavailable
54
Cable Support
515175149
Unavailable
55
Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.
390403600
Unavailable
56
Washer | DS 650 X
391301600
Unavailable
58
Clip
515175316
Unavailable
60
Support
514052788
Unavailable
61
Front Bracket
518321495
Unavailable
62
Rear Bracket R.H
518318903
Unavailable
Rear Bracket L.H
518318904
Unavailable
