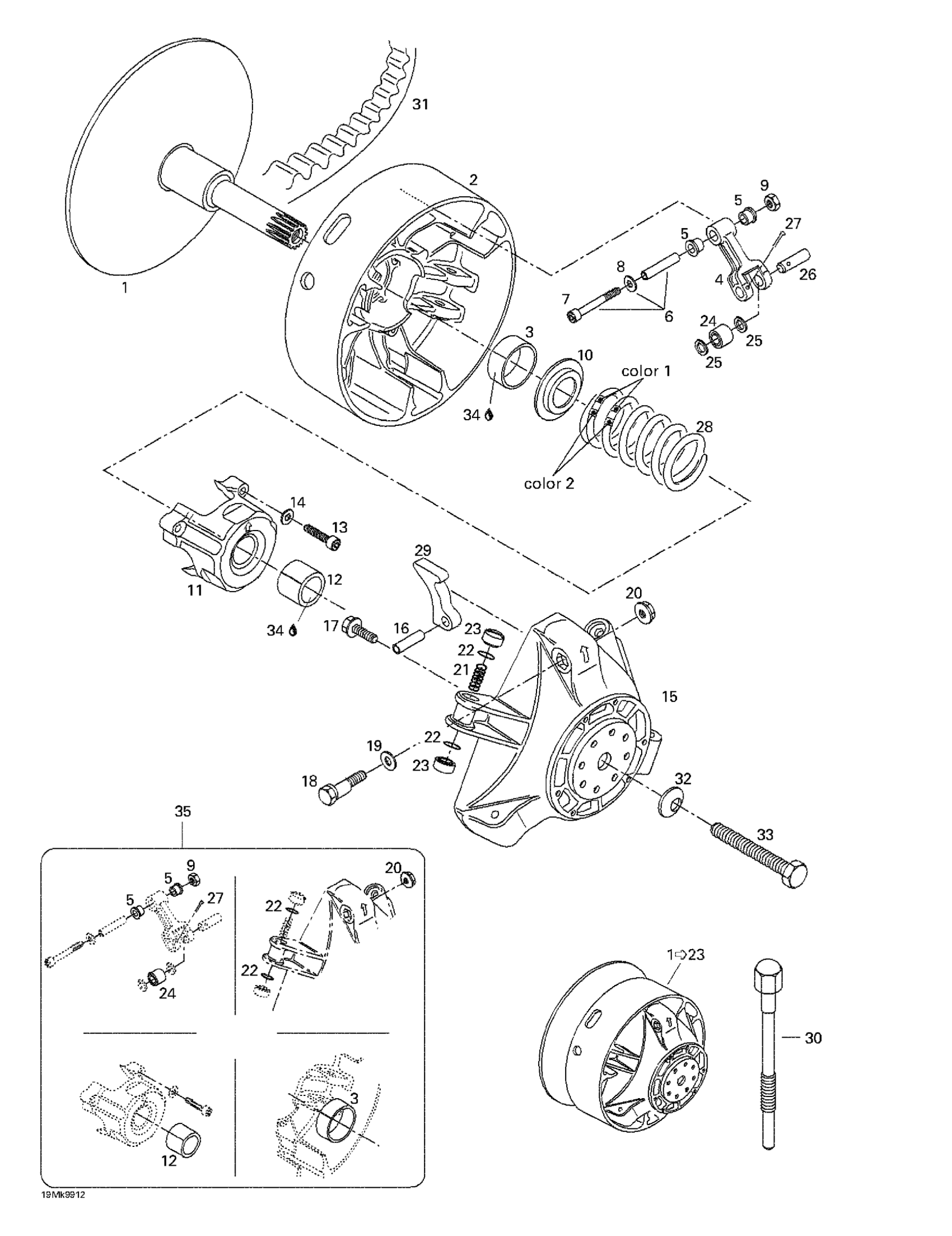

Ski-Doo Mach Z LT R, 1999 Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 23.

417222161

Unavailable

1

FIXED FLANGE ASS'Y - Call your local BRP dealership

417222130

Unavailable

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417222049

Unavailable

3

Bushing

417004201

Unavailable

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

Unavailable

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

$1.68

8

Flat Washer 6 mm

234061410

Unavailable

9

Elastic Stop Nut M6

232561414

Unavailable

10

Spring Seat

417222044

Unavailable

11

Spring Cover Ass'y | Includes 9 - 10.

417222157

Unavailable

12

Bushing

417004501

Unavailable

13

Allen Screw M6 x 40

222964066

Unavailable

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

Governor Cup

417222059

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$3.86

20

Hex. Flange Nut M6

233061414

Unavailable

21

Spring

417005700

Unavailable

22

O-Ring

732401030

$0.95

23

Slider Shoe This part replaces 420460045.

417223021

$6.09

24

Roller

417222947

$19.97

25

Stopper Washer

417004302

$15.99

26

Pin

417004308

Unavailable

27

Cotter Pin

250400060

$1.60

28

SPRING (GREEN/BLUE) - Call your local BRP dealership

414768200

Unavailable

29

Ramp 295

417005295

Unavailable

30

Puller This part replaces 529022400.

529000064

Unavailable

31

Drive Belt

417300066

Unavailable

32

Spring Washer 14 mm

250200006

Unavailable

33

Drive Pulley Bolt

417120000

$63.82

34

Loctite 609, 10 ml

413703100

$24.58

35

Clutch Repair Kit

417006100

Unavailable
