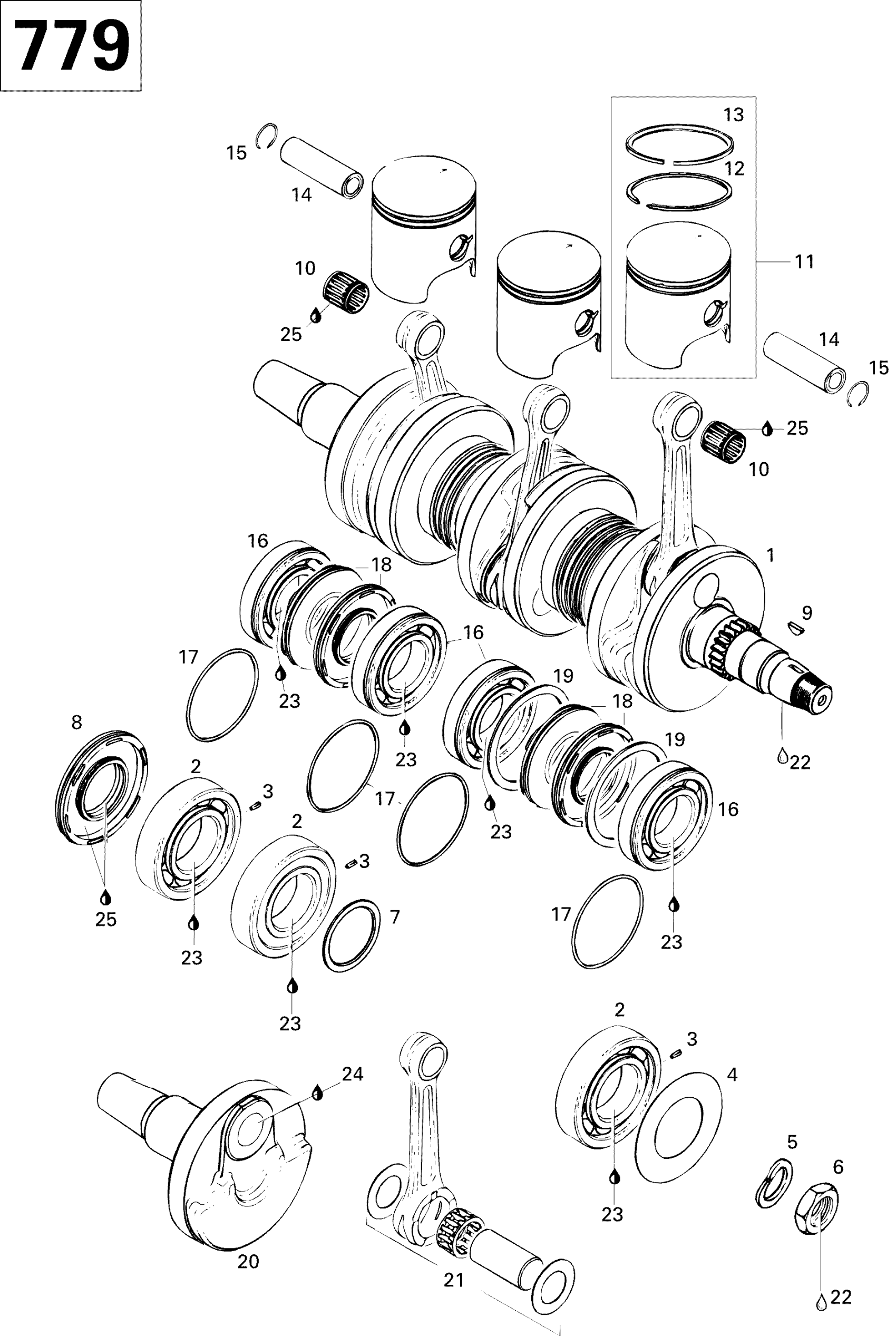

Ski-Doo Mach Z LT (2), 1996 Crankshaft And Pistons 779 Diagram
#
Description
Price
1
Crankshaft Ass‘y
420887590
Unavailable
2
BALL BEARING - Call your local BRP dealership | Includes 2 - 3. Formula III 600. Formula III 600 R. Formula III 600 LT.
420432278
Unavailable
3
Dowel Pin | Formula III 600. Formula III 600 R. Formula III 600 LT.
420929982
Unavailable
4
Cover Washer
420244085
Unavailable
5
Lock Washer, 22 mm
420945759
Unavailable
6
Hex. Nut, M22 X 1.5
420842239
Unavailable
7
Distance Ring
420926130
Unavailable
8
Oil Seal
420931280
Unavailable
9
Woodruff Key
420246015
Unavailable
10
Needle Bearing
420832430
Unavailable
11
Piston Ass’y (2 rings 69.5 mm) | Includes 16 to 18
420887550
Unavailable
11
Oversize Pist. Ass’y (2 rings 69.7mm) | Includes 16 to 18
420887551
Unavailable
12
Rectangular Ring 69.5 mm
420915985
Unavailable
12
OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership
420915986
Unavailable
13
Semi-trapez Ring 69.5 mm
420815045
Unavailable
13
Oversize Semi-trapez Ring 69.75 mm
420815046
Unavailable
14
GUDGEON PIN - Call your local BRP dealership
420916186
Unavailable
15
Piston Circlip
420945735
Unavailable
16
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
17
O-Ring, 64 mm X 2 mm
293300022
Unavailable
18
Oil Seal This part replaces 290831952.
420831952
Unavailable
19
Retaining Disk
420927710
Unavailable
20
Crankshaft P.T.O.-Side
420818570
Unavailable
21
Rod Repair Kit P.T.O.-Side
420887593
Unavailable
21
Rod Repair Kit Mag.-Side/Center
420887594
Unavailable
23
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
