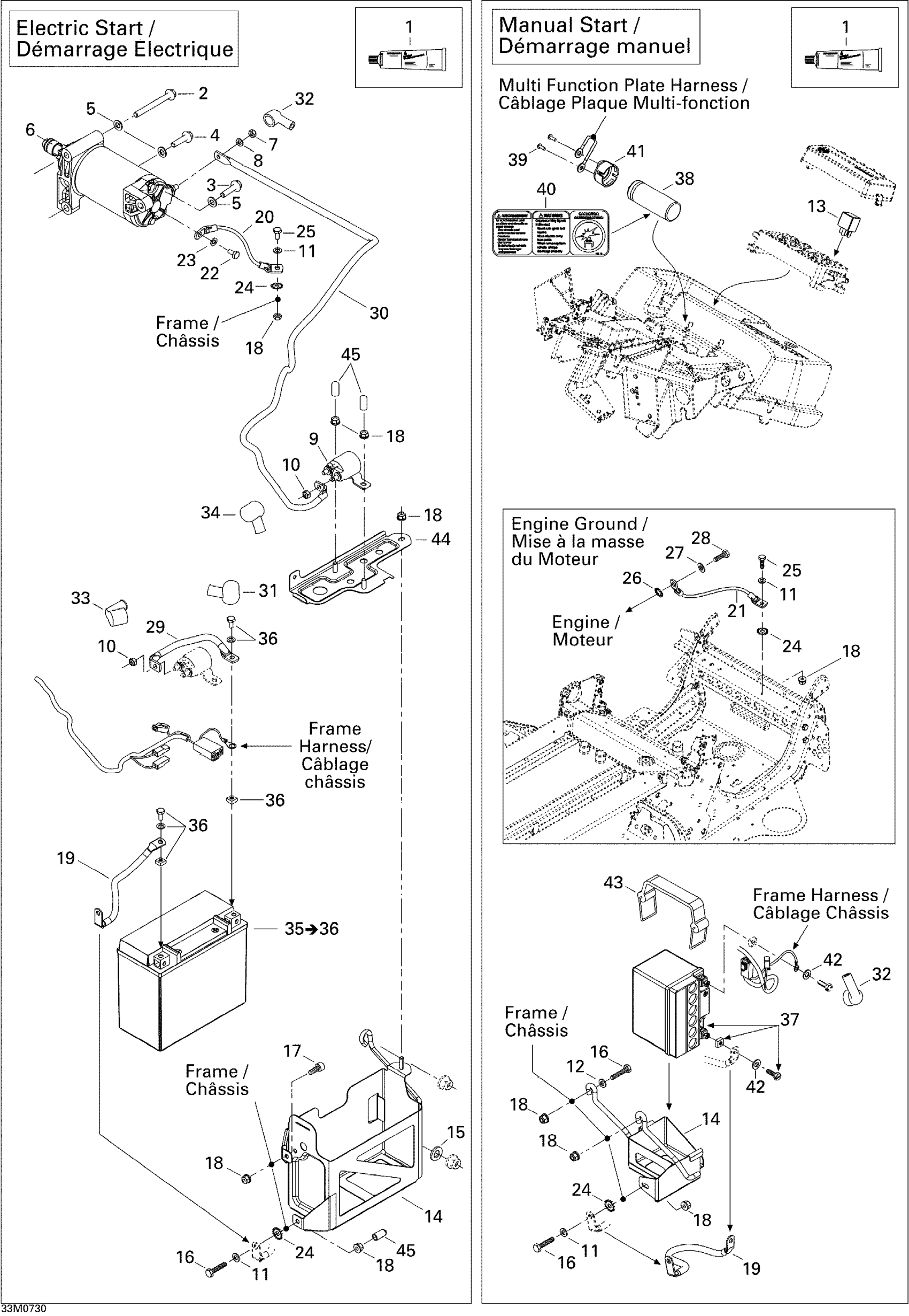

Ski-Doo MACH Z Adrenaline, 2007 Electrical System ADR Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

Unavailable

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

5

Flat Washer With Teflon 8 mm

250200008

Unavailable

6

Electric Starter Ass'y

515176133

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Flat Washer 6 mm

234061410

Unavailable

9

Starter Relay

515176011

Unavailable

10

Elastic Stop Nut M6

232561414

Unavailable

11

Flat Washer 6 mm

234061410

Unavailable

12

Flat Washer

224061121

$0.44

13

Relais *Relay This part replaces 410113604.

515177672

Unavailable

14

BATTERY SUPPORT - Call your local BRP dealership | Electric Start

515176048

Unavailable

14

Battery Support | Manual Start

515176142

Unavailable

15

Flat Washer M10 | 4X4

250200014

$1.17

16

Hex. Screw M6 X 25

207162544

Unavailable

16

Hex. Screw M6 X 25

207162544

Unavailable

17

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

GROUND WIRE - Call your local BRP dealership

515176172

Unavailable

20

GROUND WIRE - Call your local BRP dealership | Electric Start

515176277

Unavailable

21

BATTERY ASSISTED GROUND CABLE - Call your local BRP dealership | Manual Start

515176276

Unavailable

22

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

23

Flat Washer 6 mm

234061410

Unavailable

24

Lock Washer Serrated M6

250200041

Unavailable

25

Hex. Flange Screw M6 X 20

207662044

Unavailable

26

Serrated Lock Washer 8 mm

234481608

Unavailable

27

Flat Washer 8 mm

234081410

Unavailable

28

Hex. Screw M8 x 16

207181644

$0.87

29

Battery Wire

515175904

Unavailable

30

BATTERY WIRE - Call your local BRP dealership | Electric Start

515176259

Unavailable

31

Protection Cap

570151000

$18.43

32

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

33

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

34

Protector Cap | XT

515175919

$16.89

35

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

36

Battery Bolt Kit

250000282

$2.95

37

Battery 12 Volt 4 Ah

415130961

Unavailable

38

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

39

MECHANICAL SCREW - Call your local BRP dealership | Manual Start

515176388

Unavailable

40

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

41

CAP - Call your local BRP dealership

515176211

Unavailable

42

Flat Washer M5

234051410

Unavailable

43

Battery Strap

515176044

Unavailable

44

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

45

Cap

515176141

Unavailable
