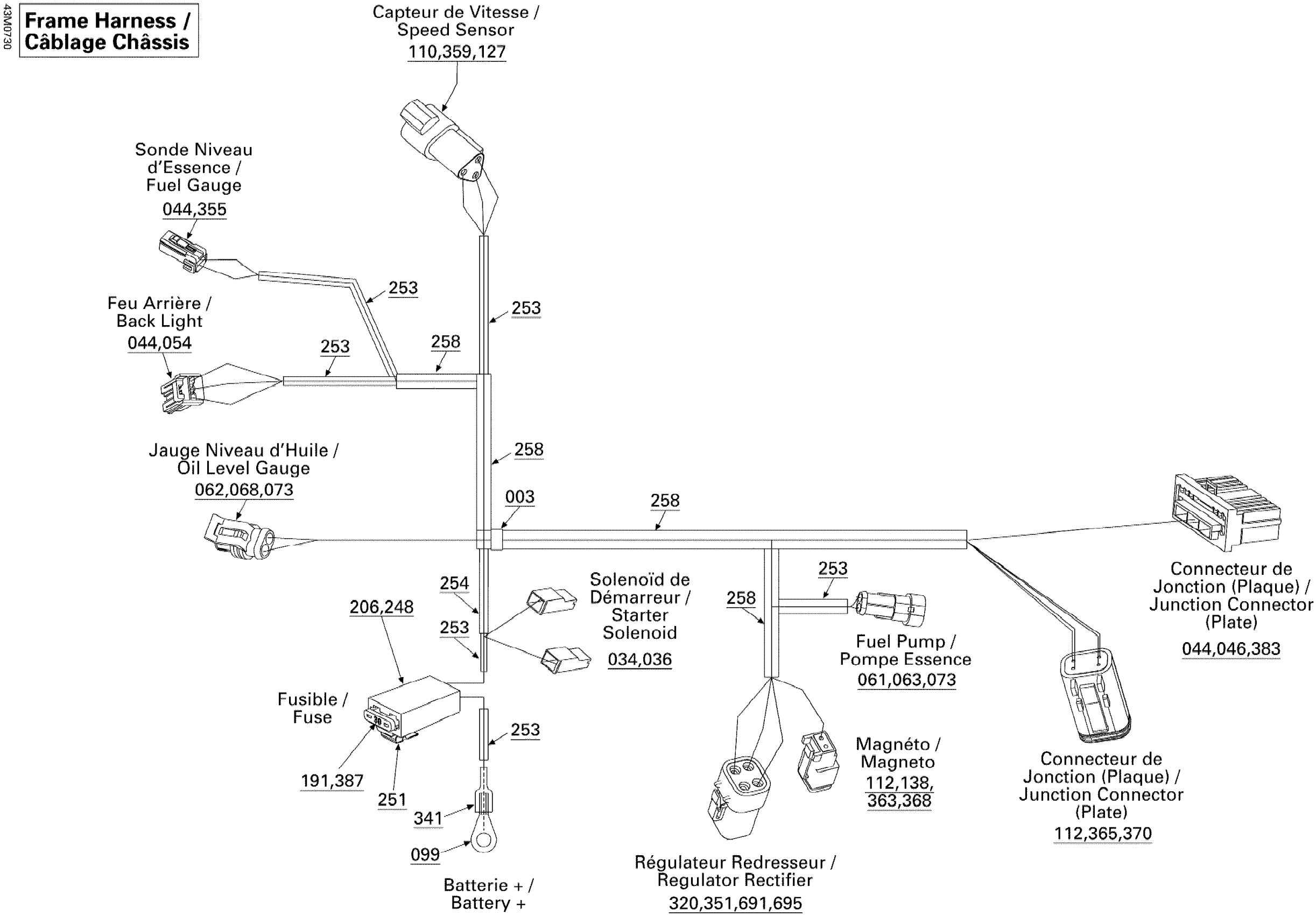

Ski-Doo MACH Z Adrenaline, 2007 Electrical Harness Diagram
#
Description
Price
1
FRAME HARNESS - Call your local BRP dealership | Includes 1 to 695
515176429
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
44
Female Terminal
515175231
Unavailable
62
Female Terminal
278001014
Unavailable
73
Wire Seal
278001013
Unavailable
112
Female Terminal
278000632
Unavailable
138
Sealing Cap
293000052
Unavailable
206
Female Terminal
409004200
Unavailable
248
Fuse Holder
409004000
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
341
Tubing Shrink
515175608
Unavailable
351
Female Lock, 4 Circuits
278001474
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
359
Male Housing
515175666
Unavailable
363
Female Terminal Housing, 2 Circuits
515175670
Unavailable
365
MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
515175672
Unavailable
368
Female Lock, 2 Circuits
515175675
Unavailable
370
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
515175677
Unavailable
383
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175719
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
691
MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership
278002027
Unavailable
695
KEYING PIN - Call your local BRP dealership
515176283
Unavailable
