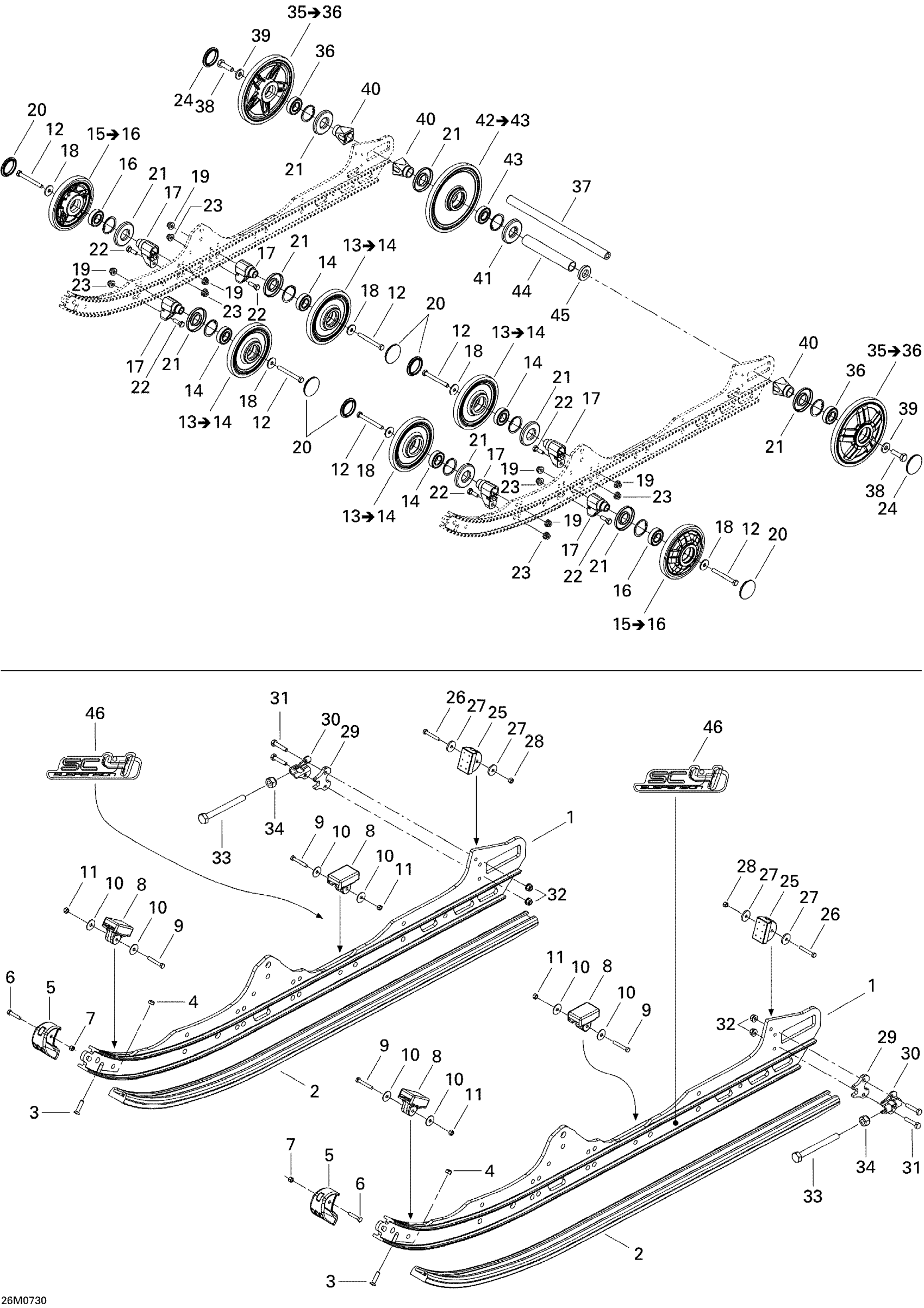

Ski-Doo MACH Z Adrenaline, 2007 Rear Suspension Adrenaline Diagram
#
1
RUNNER 121 - Call your local BRP dealership
503191224
Unavailable
2
Slider Shoe
503190573
Unavailable
3
Phillips Screw M6 X 25
208562560
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
Runner Protector
503191137
Unavailable
6
Hex. Flange Screw M5 X 25
207652544
Unavailable
7
Hex. Flange Elastic Nut M5
233251414
Unavailable
8
Rubber Stopper
503190576
Unavailable
9
Hex. Screw M5 X 30
207053044
Unavailable
10
Washer
250200016
Unavailable
11
Elastic Stop Nut M5
232551414
Unavailable
12
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
13
Black, Wheel Ass'y 141 mm | Includes 460 to 460b
503191316
Unavailable
14
Ball Bearing | Package-STD
503190396
Unavailable
15
Wheel 141 With Pattern Ass'y, Full Moon
503191313
Unavailable
16
Ball Bearing | Package-STD
503190396
Unavailable
17
Support
503190580
Unavailable
18
Washer
211200041
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
Wheel Cap
570063600
Unavailable
21
Labyrinth Seal
503190434
Unavailable
22
Hex. Screw M8 X 25
207182544
Unavailable
23
Hex. Flange Elastic Nut M8
233281414
Unavailable
24
Wheel Cap
570063600
Unavailable
25
Rubber Stopper
503191291
Unavailable
26
Hex. Screw M5 X 30
207053044
Unavailable
27
Washer
250200016
Unavailable
28
Elastic Stop Nut M5
232551414
Unavailable
31
Hex. Screw M6 X 30
207063044
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
HEX. SCREW M10 X 100 - Call your local BRP dealership
230100044
Unavailable
35
WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35
503190752
Unavailable
36
Ball Bearing | Package-STD
503190396
Unavailable
38
Hex. Screw With Nylon
250000019
Unavailable
41
Labyrinth Seal
503190682
Unavailable
42
Black - Wheel Ass'y 180 mm | Includes 600 to 600b
503194202
Unavailable
43
Ball Bearing | Package-STD
503190396
Unavailable
44
Spacer
503196317
Unavailable
45
Washer
503190432
Unavailable
46
SC4 Decal
516002615
Unavailable
