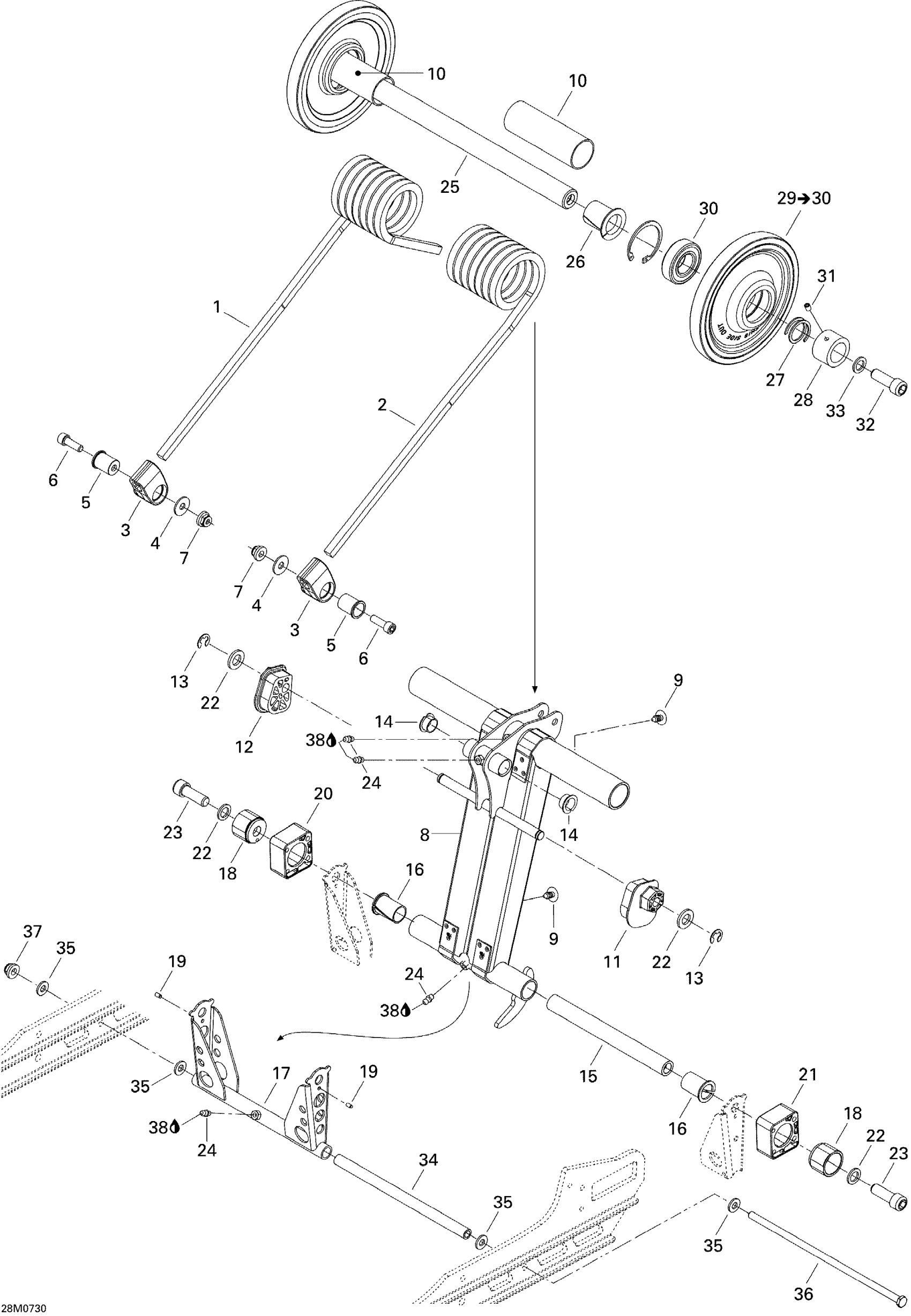

Ski-Doo MACH Z Adrenaline, 2007 Rear Arm Adrenaline Diagram

#

Description
Price

1

RH SPRING, SQUARE - Call your local BRP dealership | Europe

503190773

Unavailable

2

LH SPRING, SQUARE - Call your local BRP dealership | Europe

503190775

Unavailable

3

SPRING SUPPORT - Call your local BRP dealership

503191539

Unavailable

4

Flat Washer 8 mm

234082410

$1.11

5

Spring Support Kit

861805547

Unavailable

6

Socket Head Screw M8 X 25

205082544

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Rear Arm

503191119

Unavailable

9

Black, Dart

414644300

$0.78

10

Plastic Bushing

503191041

Unavailable

11

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

12

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

13

E-Circlip

293370013

Unavailable

14

Swivel Bushing

503191555

Unavailable

15

Lower Shaft

503192330

$46.12

16

Cushion

503191640

$5.71

17

PIVOT ARM - Call your local BRP dealership

503191091

Unavailable

18

Block Guide

503189488

Unavailable

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

20

RH Block, 4 Positions

503190622

Unavailable

21

LH Block, 4 Positions

503191563

Unavailable

22

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

24

Grease Fitting

408200700

Unavailable

25

Upper Shaft

503191360

Unavailable

26

CUSHION - Call your local BRP dealership

503190619

Unavailable

27

Axle Spring

503189146

$7.54

28

RETAINER RING - Call your local BRP dealership

503190570

Unavailable

29

WHEEL 155 ASS'Y - Call your local BRP dealership | Includes 28 to 29

503191046

Unavailable

30

Ball Bearing

293350115

Unavailable

31

Socket Set Screw M6 X 8

206260844

$1.25

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

33

Washer

503189276

Unavailable

34

Pivot Arm Axle

503189156

Unavailable

35

Washer

503189157

$3.20

36

Bolt M8 X 248mm

503192440

Unavailable

37

Hex. Flange Elastic Nut M8

233281414

Unavailable

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
