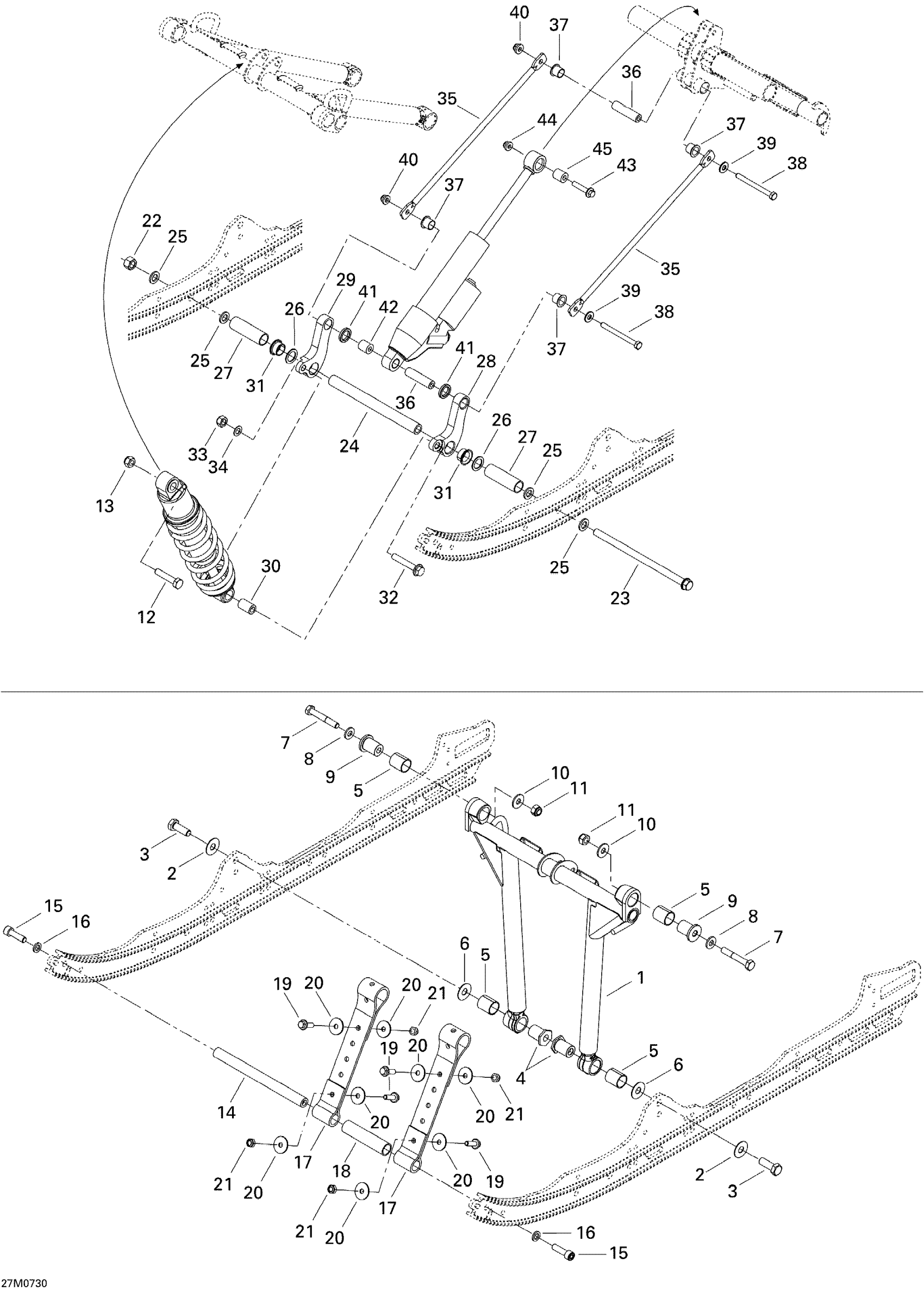

Ski-Doo MACH Z Adrenaline, 2007 Front Arm Diagram

#

Description
Price

1

FRONT ARM, BLACK - Call your local BRP dealership

503191266

Unavailable

2

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

3

Hex. Cap Screw M12 X 35

250000537

$2.63

4

Lower Axle

503191966

Unavailable

5

Bushing

503190974

Unavailable

6

Washer

503190656

Unavailable

7

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

8

Washer

732900049

Unavailable

9

Axle

503190698

Unavailable

10

Flat Washer M10 | 4X4

250200014

$1.17

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

13

Elastic Stop Nut M10

232500416

$1.56

14

AXLE - Call your local BRP dealership

503189562

Unavailable

15

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

16

Washer

503189564

Unavailable

17

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

18

Spacer

503189265

$4.66

19

Hex. Flange Screw M8 X 25

207682544

$0.90

20

Flat Washer

224081301

$0.86

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

Hex. Nut M12

232021416

Unavailable

23

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

24

CENTER SHAFT - Call your local BRP dealership

503191044

Unavailable

25

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

26

WASHER - Call your local BRP dealership

503190697

Unavailable

27

SPACER - Call your local BRP dealership

503190600

Unavailable

28

LH Rocker Arm

503190965

Unavailable

29

RH ROCKER ARM - Call your local BRP dealership

503190966

Unavailable

30

Central Shock Axle

503190604

Unavailable

31

CENTRAL ROCKER AXLE CUSHION - Call your local BRP dealership

503190605

Unavailable

32

Hex. Flange Screw M10 X 60

207606044

Unavailable

33

Elastic Stop Nut M10

232500416

$1.56

34

Washer

503175800

$3.26

35

THROTTLE ROD - Call your local BRP dealership

503190606

Unavailable

36

Axle Bar (Long)

503190643

$15.35

37

Swivel Bushing

503191555

Unavailable

38

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

39

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

40

Hex. Flange Elastic Nut M8

233281414

Unavailable

41

Plastic Spacer

503190694

Unavailable

42

BUSHING - Call your local BRP dealership

503190706

Unavailable

43

Hex. Flange Screw M8 X 40

207684044

Unavailable

44

Hex. Flange Elastic Nut M8

233281414

Unavailable

45

Bushing

414936000

Unavailable
