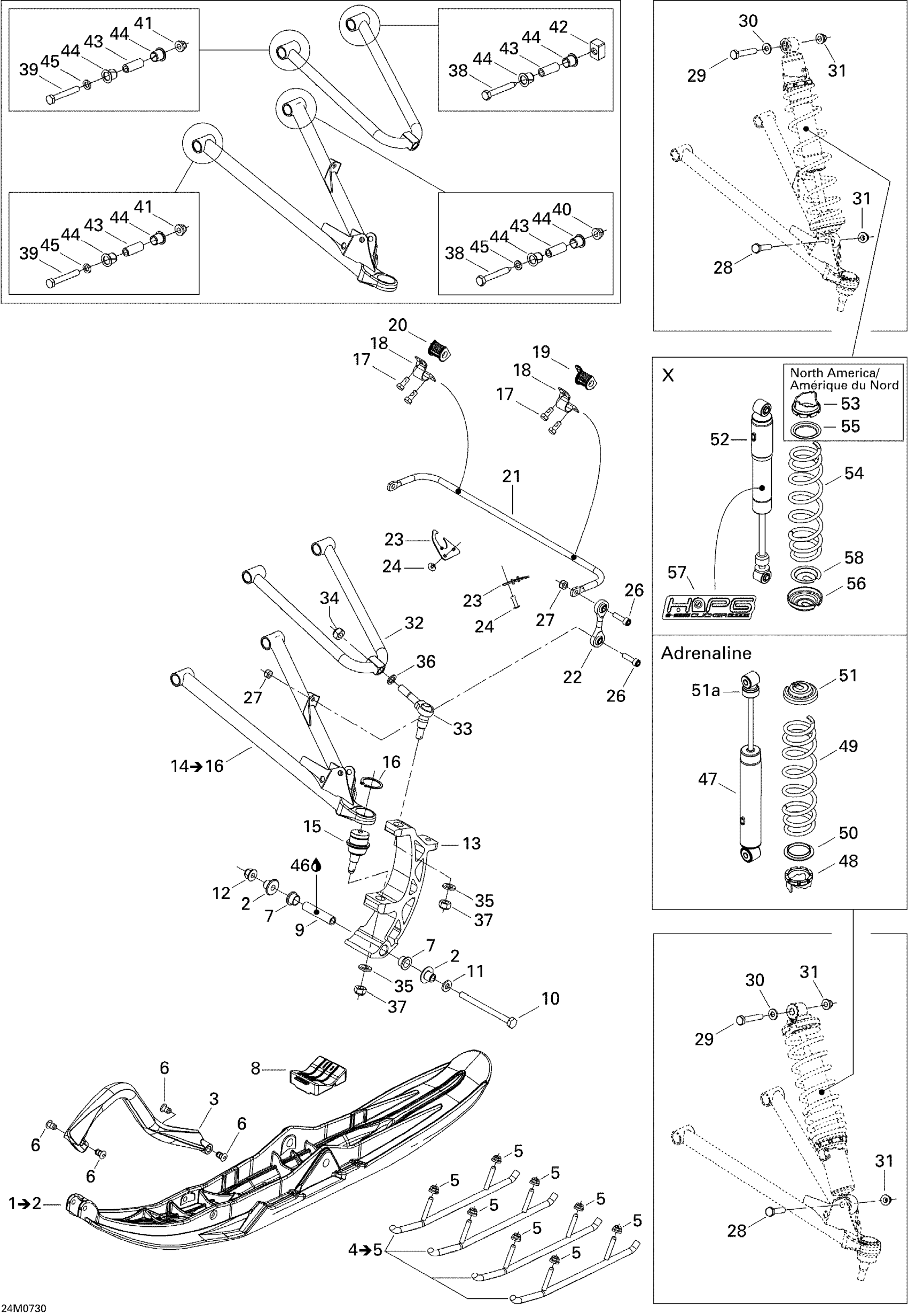

Ski-Doo MACH Z Adrenaline, 2007 Front Suspension And Ski ADR Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

Unavailable

1

Deep Black, LH Pilot 5.7 Ski

505072854

Unavailable

2

Ski Bushing

505071781

Unavailable

3

Black, Handle

505070963

Unavailable

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071779

$16.12

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

11

Washer

732900049

Unavailable

12

Flange Nut M10

732610084

Unavailable

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512300

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512200

Unavailable

15

Ball Joint

505073636

$49.97

16

Circlip

293370035

$2.55

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

20

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

21

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

22

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

Unavailable

26

Socket Head Screw M8 X 30

205083044

Unavailable

27

Hex. Elastic Stop Nut M8

232581414

Unavailable

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

Unavailable

31

Hex. Flange Elastic Nut M10

233201414

$1.26

32

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

33

Upper Ball Joint

505072257

$16.89

34

Hex. Elastic Hex. Nut M12

250100089

$0.39

35

Flat Washer 12 mm

234021410

$0.68

36

Washer

503189276

Unavailable

37

Hex. Elastic Hex. Nut M12

250100089

$0.39

38

Hex. Screw M10 X 75

250001063

Unavailable

39

Hex. Screw M10 X 75

250001063

Unavailable

40

Hex. Flange Elastic Nut M10

250100165

Unavailable

41

Hex. Flange Elastic Nut M10

250100165

Unavailable

42

RECTANGULAR NUT - Call your local BRP dealership

505071695

Unavailable

43

Aluminium Bushing

505070960

Unavailable

44

Arm Bushing

505070566

Unavailable

45

Washer

503189564

Unavailable

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

Front Shock

505071446

Unavailable

48

Adjustment Cam

505073625

Unavailable

49

SPRING - Call your local BRP dealership

505071447

Unavailable

50

Spring Guide

503191872

Unavailable

51

Spring Stopper

706200881

$10.30

51a

Cap

706200785

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable
