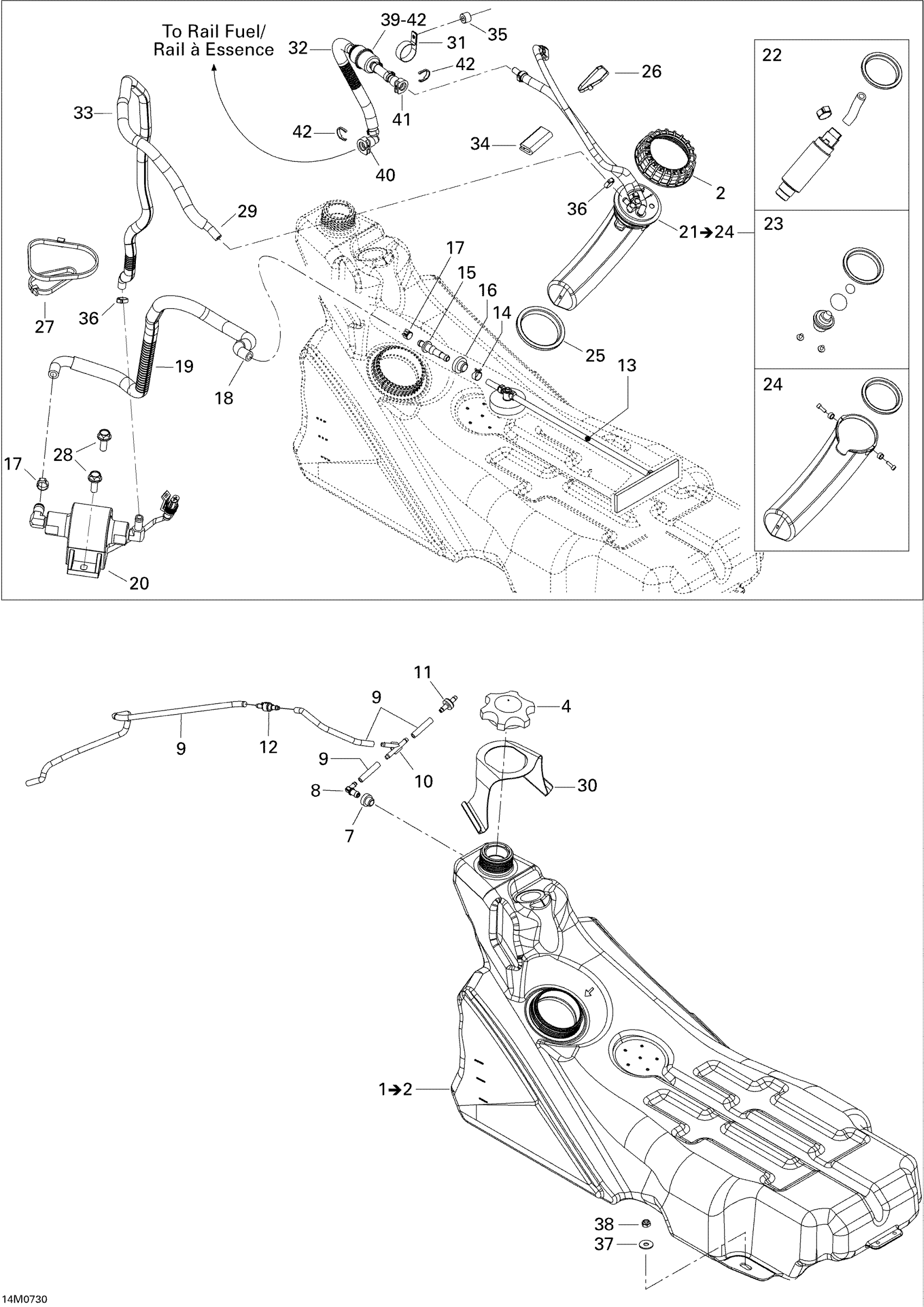

Ski-Doo MACH Z Adrenaline, 2007 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership | Includes 1 to 2, LTD

513033153

Unavailable

2

Nut, Fuel Pump Module

513033040

$26.84

4

Fuel Tank Cap 91 Octane

513033722

$22.36

7

Grommet

513032908

$8.48

8

Male Connector

414580700

$3.38

9

Polyurethane Hose 10000Mm Long

219704410

$46.12

10

Y-Fitting

293710059

$8.19

11

Check Valve

275500398

$8.57

12

Check Valve

275500505

$25.32

13

FUEL HOSE ASS. - Call your local BRP dealership

513033172

Unavailable

14

Norma Spring Clamp

513033010

$8.42

15

Male Connector

414872700

$1.81

16

Grommet | Europe

707800347

$7.58

17

Crimp Clamp

293650053

$2.42

18

HOSE - Call your local BRP dealership

513033156

Unavailable

19

Tubing 16 Mm 1000Mm Long

219704408

$6.23

20

FUEL PUMP - Call your local BRP dealership

513033328

Unavailable

21

FUEL PUMP MODULE - Call your local BRP dealership | Includes 25 to 27

513033120

Unavailable

22

PUMP KIT - Call your local BRP dealership

861302700

Unavailable

23

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

24

Réservoir Kit

861302800

Unavailable

25

SEAL - Call your local BRP dealership

513033039

Unavailable

26

Tie-Rap 180 mm

414115200

$0.09

27

Tie Wrap 368 mm

293750008

$0.85

28

Hex. Flange Screw M6 X 16

210261650

$1.22

29

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

30

SUPPORT - Call your local BRP dealership

513033066

Unavailable

31

Open Clamp

513033047

$4.73

32

Tubing 16 Mm 1000Mm Long

219704408

$6.23

33

Tubing 16 Mm 1000Mm Long

219704408

$6.23

34

Was 271000110 Protection Trim

219704353

$14.58

35

SPACER - Call your local BRP dealership

503189448

Unavailable

36

Crimp Clamp, 15.3-706R

293650047

$2.64

37

Flat Washer 8 mm

234082410

$1.11

38

Hex. Elastic Stop Nut M8

232581414

$0.47

39

Fuel Filter Ass'y | Includes 44 to 47

513033133

$84.30

40

Quick Fitting 90° Ass'y

415128965

$8.78

41

Female Quick Fitting Ass'y

709000125

$11.12

42

Locking Clip

513033135

$4.96
