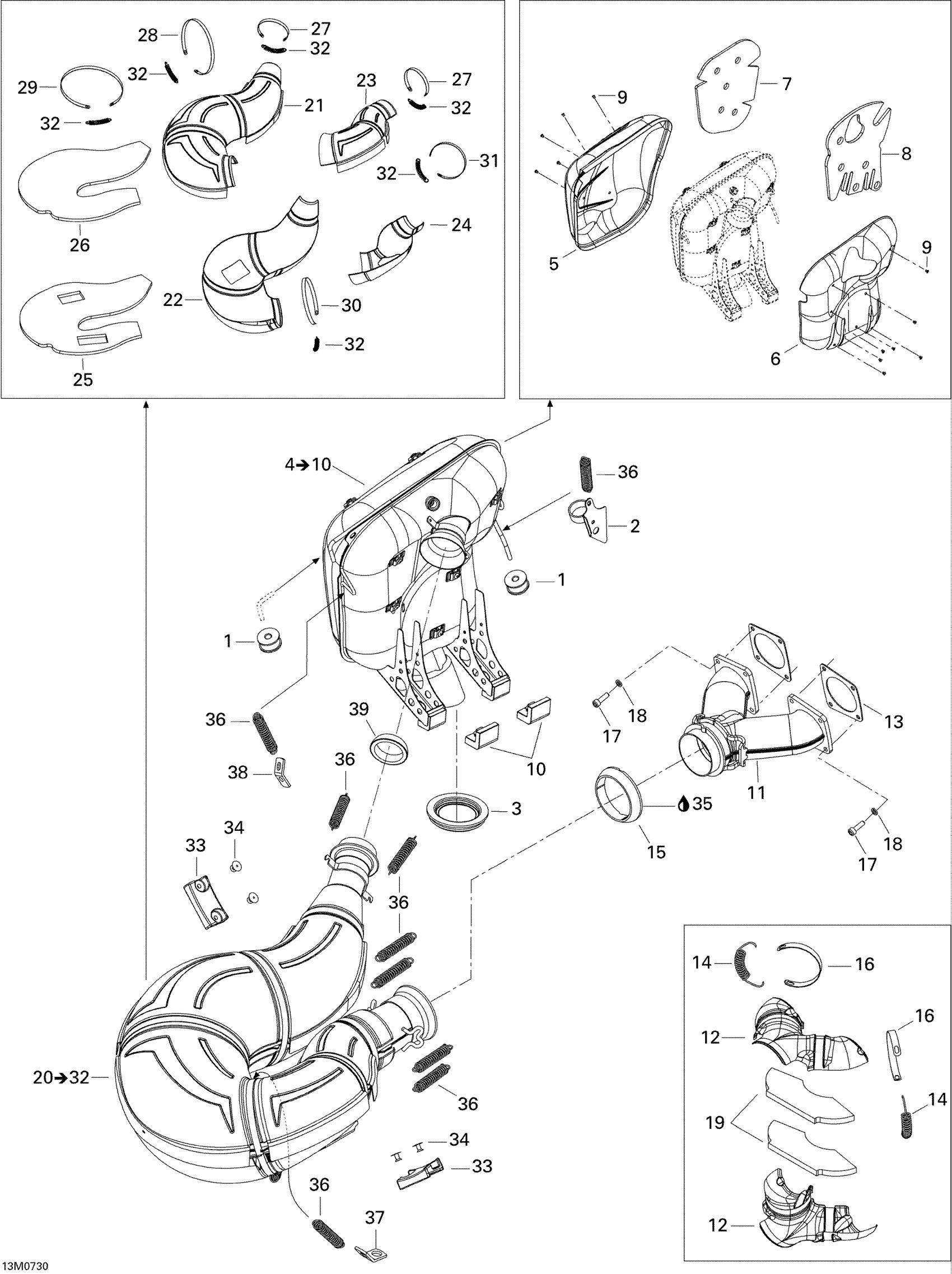

Ski-Doo MACH Z Adrenaline, 2007 Exhaust System Diagram

#

Description
Price

1

Anti-Vibration Rubber

707600702

$8.34

2

MUFFLER BRACKET - Call your local BRP dealership

514053810

$13.82

3

EXHAUST GROMMET - Call your local BRP dealership

514053935

$12.28

4

MUFFLER ASS'Y - Call your local BRP dealership | Includes 4 to 10

514054236

$599.97

5

RH HEAT DEFLECTOR - Call your local BRP dealership

514054173

Unavailable

6

LH HEAT DEFLECTOR - Call your local BRP dealership

514053778

$36.89

7

RH INSULATING WOOL - Call your local BRP dealership

514053904

$14.58

8

LH Insulating Wool

514053905

Unavailable

9

Pop Rivet 3/16”

390910000

$0.48

10

LOWER STOPPER - Call your local BRP dealership

514054223

$35.35

11

EXHAUST MANIFOLD - Call your local BRP dealership

420673150

Unavailable

12

EXHAUST MANIFOLD ENVELOPE - Call your local BRP dealership

514054033

Unavailable

13

GASKET - Call your local BRP dealership

420630820

Unavailable

14

Spring

514053643

$6.20

15

Exhaust Gasket

514053487

Unavailable

16

RETAINING STRAP - Call your local BRP dealership

514053493

Unavailable

17

Socket Head Screw Scotch Grip M6 X 20

250001077

Unavailable

18

Washer

514053953

$0.75

19

INSULATING WOOL - Call your local BRP dealership

514054034

Unavailable

20

Tuned Pipe Ass'y | Includes 20 to 32

514053740

Unavailable

21

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053772

$35.35

22

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053773

$35.35

23

UPPER FRONT HALF ENVELOPE - Call your local BRP dealership

514053770

$26.89

24

LOWER FRONT HALF ENVELOPE - Call your local BRP dealership

514053771

Unavailable

25

LOWER INSULATING WOOL - Call your local BRP dealership

514053910

$14.58

26

UPPER INSULATING WOOL - Call your local BRP dealership

514054035

$14.58

27

Retaining Strap

514053498

$8.35

28

RETAINING STRAP - Call your local BRP dealership

514053975

$7.74

29

RETAINING STRAP - Call your local BRP dealership

514053976

$7.74

30

RETAINING STRAP - Call your local BRP dealership

514053605

$7.74

31

Retaining Strap

514053501

$8.34

32

Spring

514053643

$6.20

33

BUMPER - Call your local BRP dealership

514053352

$14.58

34

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

35

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

36

Spring

415107100

$6.20

37

SPRING BRACKET - Call your local BRP dealership

514054087

$4.05

38

Spring Bracket

514053026

Unavailable

39

Exhaust Gasket

514053677

$24.58
