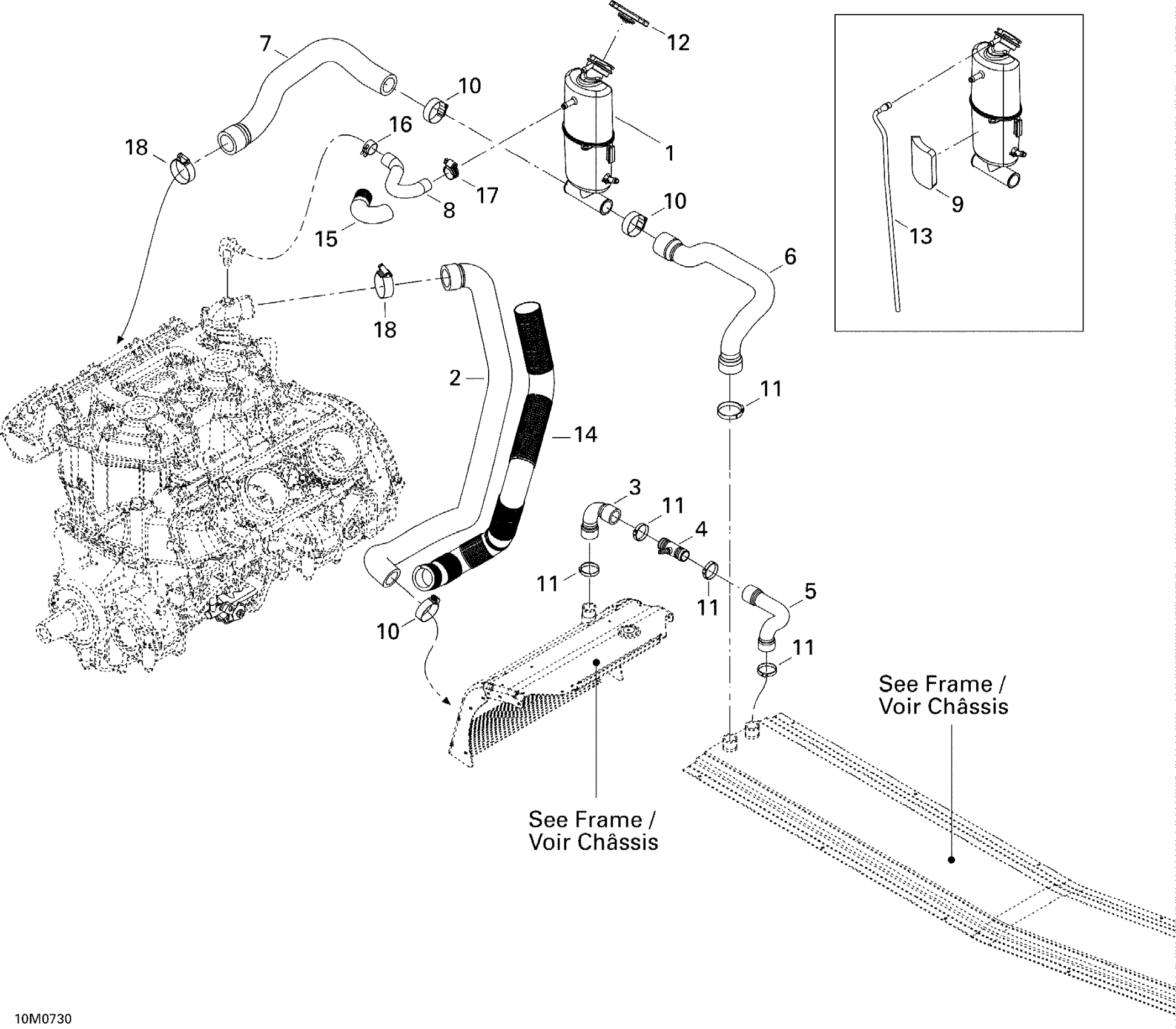

Ski-Doo MACH Z Adrenaline, 2007 Cooling System Diagram

#

Description
Price

1

COOLANT TANK - Call your local BRP dealership

509000409

Unavailable

2

ENGINE OUTLET HOSE - Call your local BRP dealership

509000395

Unavailable

3

FRONT RADIATOR OUTLET HOSE - Call your local BRP dealership

509000337

Unavailable

4

T-Fitting

509000510

$11.18

5

RADIATOR INLET HOSE - Call your local BRP dealership

509000338

Unavailable

6

RADIATOR OUTLET HOSE - Call your local BRP dealership

509000313

Unavailable

7

ENGINE INLET HOSE - Call your local BRP dealership

509000351

Unavailable

8

BLEED HOSE - Call your local BRP dealership

509000297

Unavailable

9

FOAM - Call your local BRP dealership

509000353

Unavailable

10

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

11

Oetiker Gear Clamp 36.1MM

509000045

$3.55

12

Pressure Cap

509000187

$26.84

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

14

Tubing 35 MM 1000MM Long

219704428

$8.57

15

Tubing 16 Mm 1000Mm Long

219704408

$6.23

16

Universal Spring Clamp

513033029

$4.96

17

Tridon Gear Clamp

293650170

$1.74

18

ABA GEAR CLAMP - Call your local BRP dealership

509000352

Unavailable
