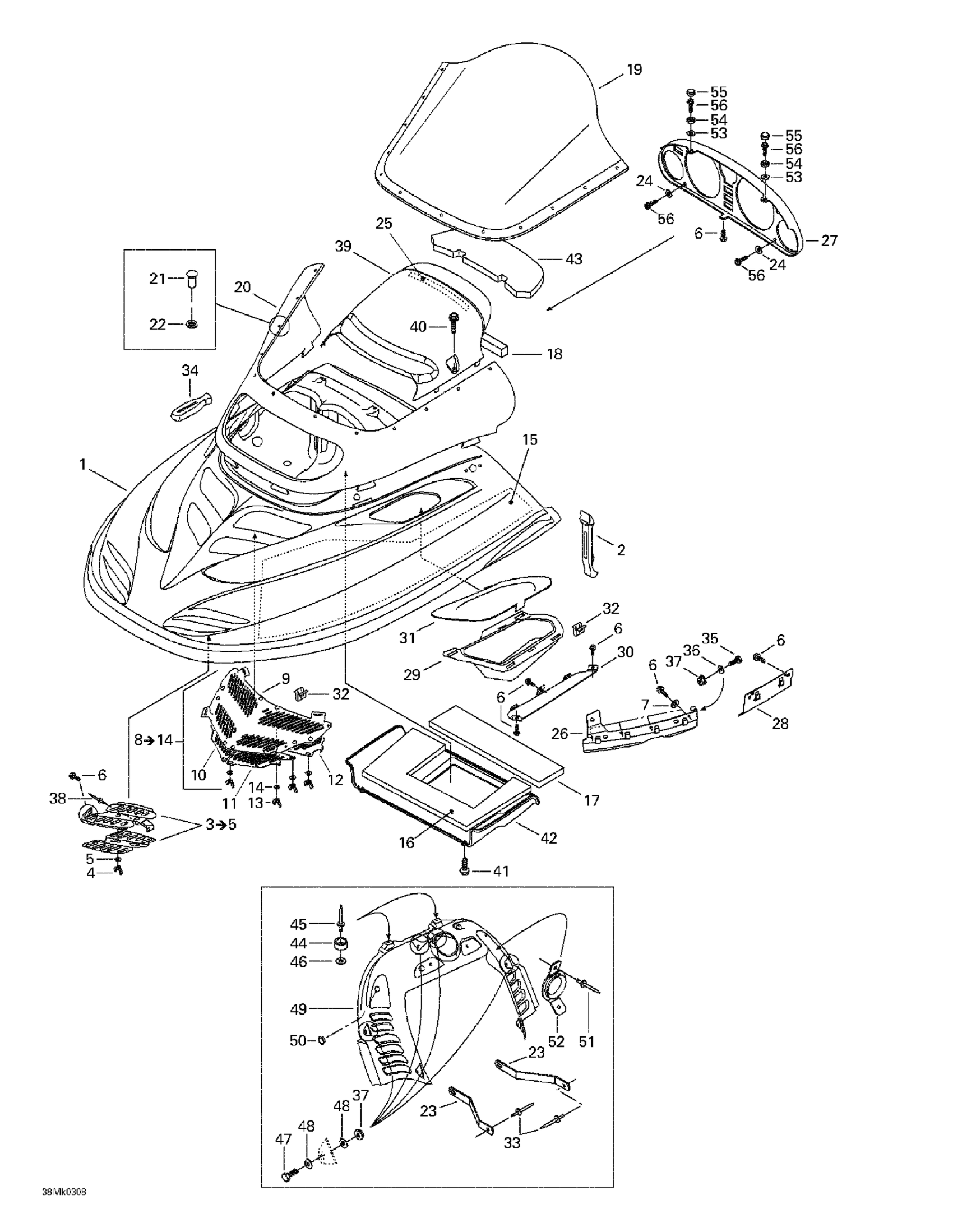

Ski-Doo Mach Z, 2003 Cab, Console Diagram
#
1
Deep Black, Hood
517302484
Unavailable
2
Hood Latch
517302152
Unavailable
3
RH Front Grille Ass'y | Includes 3 - 5.
517302205
Unavailable
LH Front Grille Ass'y
517302208
Unavailable
4
Wing Nut M5
414070300
Unavailable
5
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
6
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
7
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
8
Center Grill Ass'y | Includes 8 - 14.
517302073
Unavailable
9
Central Grille
517289100
Unavailable
10
RH Front Sliding Grille
517289103
Unavailable
11
LH Front Sliding Grille
517289104
Unavailable
12
RH Rear Sliding Grille
517289105
Unavailable
LH Rear Sliding Grille
517289106
Unavailable
13
Wing Nut M5
414070300
Unavailable
14
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
15
LH Side Foam
517302184
Unavailable
RH Side Foam
415045100
Unavailable
16
Center Foam
415045300
Unavailable
17
Rear Foam
415045400
Unavailable
18
Deflector Foam
415045500
Unavailable
19
Low Windshield
415045800
Unavailable
20
Windshield Support
517302076
Unavailable
21
STUD - Call your local BRP dealership
572103500
Unavailable
22
Push Nut
732610072
Unavailable
23
Bracket
517296900
Unavailable
24
Washer
517124300
Unavailable
25
VELCRO 1/2? - Call your local BRP dealership
415110900
Unavailable
26
RH Hood Guide
517301200
Unavailable
LH Hood Guide
517301300
Unavailable
27
Gauge Support
572098600
Unavailable
28
Hood Guide
517302108
Unavailable
29
Inlet Duct
517302155
Unavailable
30
Plate
517302414
Unavailable
31
RH Grille
517302156
Unavailable
LH Grille
517302167
Unavailable
32
Edge Clip
517302785
Unavailable
34
Windshield Latch
570023800
Unavailable
35
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
36
WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.
420845330
Unavailable
37
Hex. Flange Elastic Nut M5
233251414
Unavailable
38
Pop Rivet 3/16"
390402400
Unavailable
39
Air Intake Deflector
572107300
Unavailable
41
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
42
Plate
572087800
Unavailable
43
Filter Foam
415123100
Unavailable
45
Pop Rivet 1/8" | SM5
390401600
Unavailable
46
WASHER - Call your local BRP dealership
293150007
Unavailable
48
Washer | DS 650 X
391301600
Unavailable
49
Console
517302249
Unavailable
50
CAP - Call your local BRP dealership
572072100
Unavailable
51
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe
390409400
Unavailable
52
Rope Guide
517296800
Unavailable
53
Flat Washer 4 mm, Stainless
234042600
Unavailable
55
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
