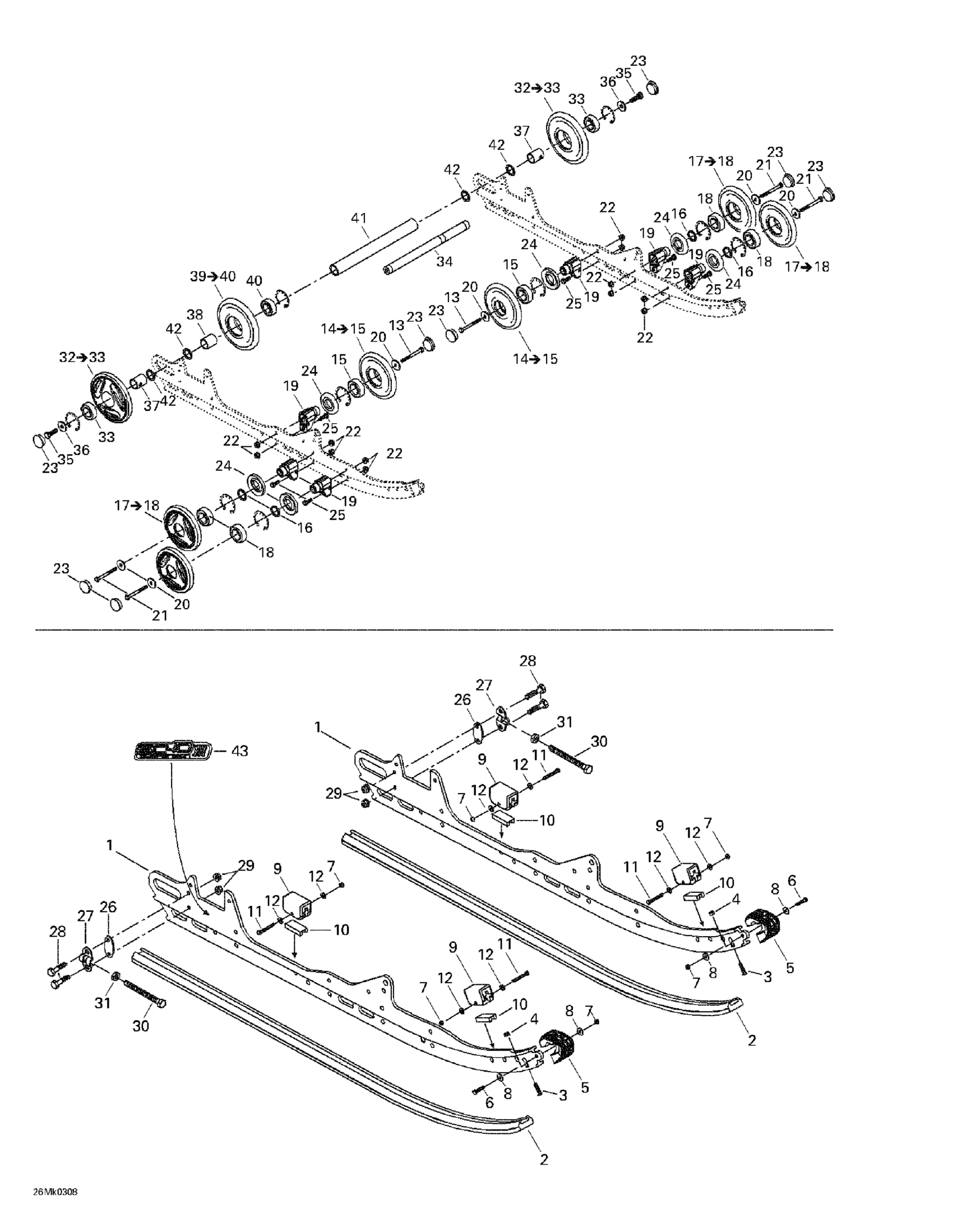

Ski-Doo Mach Z, 2003 Rear Suspension Diagram
#
Description
Price
1
Runner
503189830
Unavailable
2
Runner Shoe
503189643
Unavailable
3
Phillips Screw M6 X 25
208562560
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
RUNNER PROTECTOR - Call your local BRP dealership
572075400
Unavailable
6
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
7
Elastic Stop Nut M5
232551414
Unavailable
8
Washer | DS 650 X
391301600
Unavailable
9
Rubber Stopper
570063000
Unavailable
11
HEX. SCREW M5 X 40 - Call your local BRP dealership
207054044
Unavailable
12
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
13
Hex. Screw M8 X 80
207088044
Unavailable
14
Wheel 135
503191029
Unavailable
15
Ball Bearing
293350115
Unavailable
16
WASHER - Call your local BRP dealership
503173700
Unavailable
17
Wheel 135, Yellow
503190785
Unavailable
18
Ball Bearing
293350115
Unavailable
19
SUPPORT - Call your local BRP dealership
503190389
Unavailable
22
Hex. Flange Elastic Nut M8
233281414
Unavailable
23
Wheel Cap
570063600
Unavailable
24
LABYRINTH SEAL - Call your local BRP dealership
572089000
Unavailable
25
Hex. Screw M8 X 25
207182544
Unavailable
26
TENSIONER SPACER - Call your local BRP dealership
503189160
Unavailable
27
Tensioner
503155300
Unavailable
28
Hex. Screw M6 X 30
207063044
Unavailable
29
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
30
HEX. SCREW M10 X 100 - Call your local BRP dealership
230100044
Unavailable
32
Wheel 165 mm Yellow
503190817
Unavailable
33
Ball Bearing
293350115
Unavailable
35
Hex. Screw With Nylon
250000019
Unavailable
40
Ball Bearing
293350115
Unavailable
41
CENTRAL SPACER - Call your local BRP dealership
503183000
Unavailable
43
Suspension Decal
516001248
Unavailable
