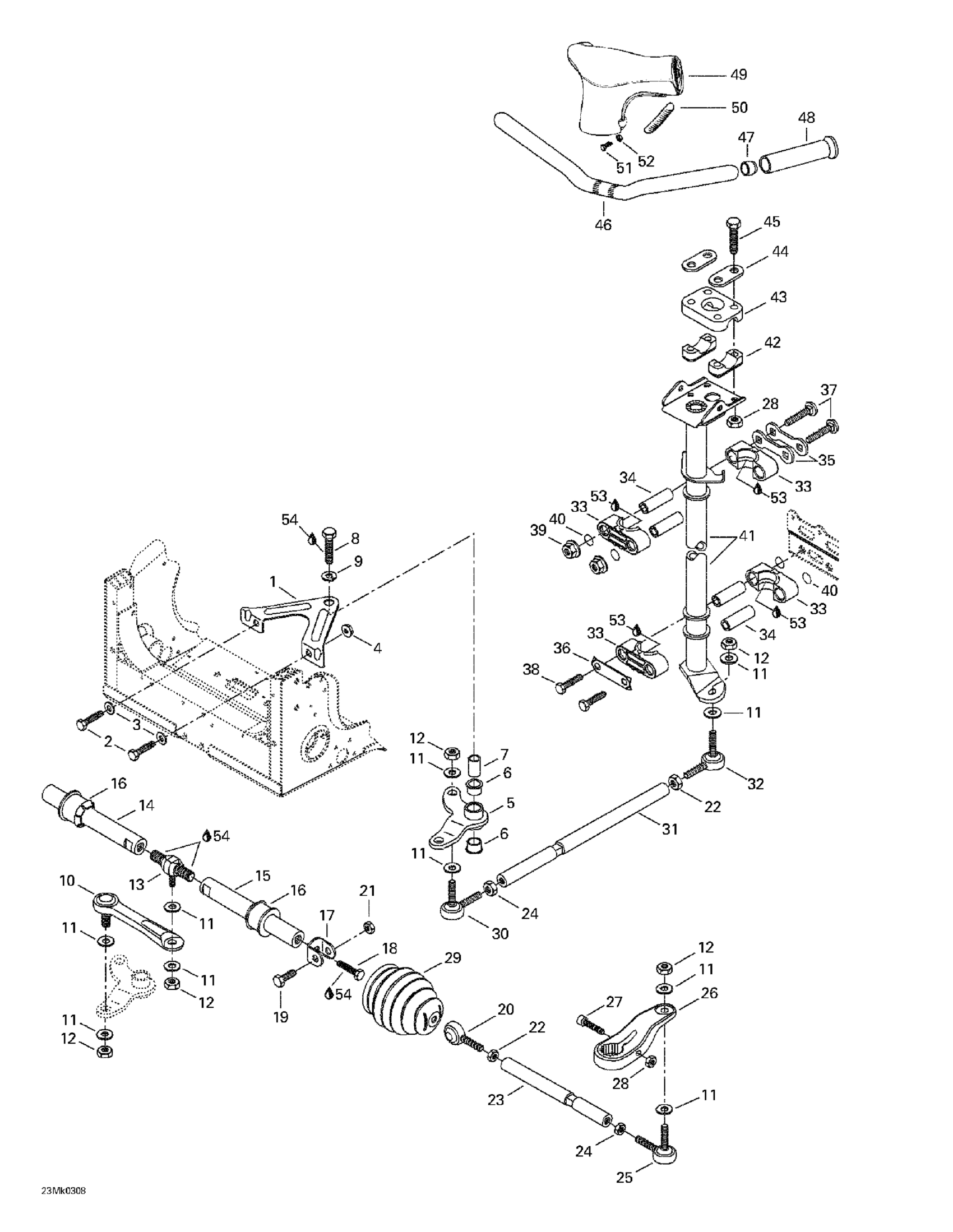

Ski-Doo Mach Z, 2003 Steering System Diagram

#

Description
Price

1

PIVOT SUPPORT - Call your local BRP dealership

506138400

Unavailable

2

Hex. Screw M6 X 60

207066044

$0.56

3

Flat Washer

224061121

$0.44

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

5

Pivot Arm

506129500

Unavailable

6

CUSHION - Call your local BRP dealership

415041100

$5.52

7

Pivot

506131500

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Lock Washer Helical M10

234101411

Unavailable

10

Ball Stud Lever

415059800

Unavailable

11

Washer

503175800

$3.26

12

Elastic Flange Nut M10

232501416

Unavailable

13

Ball Joint (Double)

415053300

Unavailable

14

Sliding Bar (Long)

506129402

Unavailable

15

Sliding Bar (Short)

506129400

Unavailable

16

Cushion

572108500

Unavailable

17

Bracket

506138300

Unavailable

18

Hex. Screw M10 X 25

207102544

Unavailable

19

Hex. Screw M8 X 45

207084544

Unavailable

20

LH Ball Joint

506151497

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

Unavailable

22

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

23

Tie-Rod

506129600

Unavailable

24

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

25

Ball Joint

506151491

Unavailable

26

RH Steering Arm

506151385

Unavailable

LH Steering Arm

506151386

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

Hex. Elastic Stop Nut M8

232581414

Unavailable

29

Tie-Rod Cap

570054100

Unavailable

30

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

31

Tie-Rod

506151394

Unavailable

32

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

33

Housing Half

506150400

Unavailable

34

Housing Bushing

506150500

Unavailable

35

Stopper Plate

506150600

Unavailable

36

Lock Tab

506151332

Unavailable

37

Carriage Bolt M8 X 70

207787044

Unavailable

38

Hex. Screw M8 X 55

207085544

$1.62

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

O-RING - Call your local BRP dealership

506151140

Unavailable

41

Main Tube

506151169

Unavailable

42

Steering Support

709400919

Unavailable

43

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

44

Stiffner

709400509

Unavailable

45

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

46

Handlebar

506142000

Unavailable

47

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

48

RH Grip 6-1/2"

506151530

Unavailable

49

Steering Padding

506151182

Unavailable

50

KEYWAY - Call your local BRP dealership | Sport / Sport GT

572106200

Unavailable

51

Phillips Screw M5 X 20

208652044

Unavailable

52

Hex. Flange Elastic Nut M5

233251414

Unavailable

53

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

54

Loctite 271, 10 ml

293800005

Unavailable
