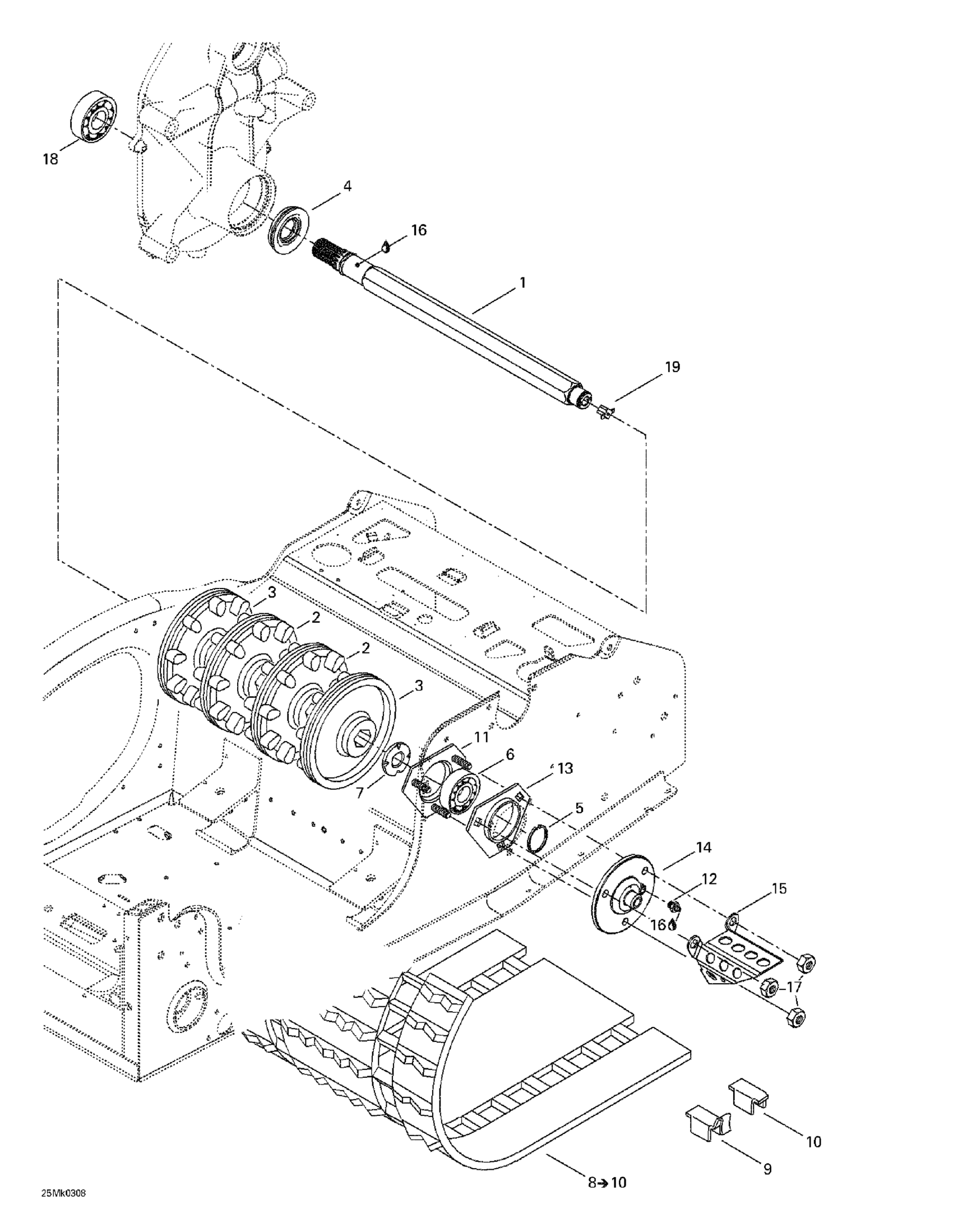

Ski-Doo Mach Z, 2003 Drive Axle And Track Diagram
#
Description
Price
1
Drive Axle
501026500
Unavailable
2
9-Tooth Sprocket
504151900
Unavailable
3
9-Tooth Half Sprocket
504151901
Unavailable
4
OIL SEAL - Call your local BRP dealership
504151925
Unavailable
5
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
6
Ball Bearing
293350060
Unavailable
7
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
8
Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10
504152485
Unavailable
10
Cleat
504152651
Unavailable
11
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
12
Grease Fitting
408200700
Unavailable
13
FLANGE - Call your local BRP dealership
501025000
Unavailable
14
Flange, Speedo Drive Insert
504151836
Unavailable
15
CABLE PROTECTOR - Call your local BRP dealership
517290100
Unavailable
16
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
17
Hex. Elastic Stop Nut M8
232581414
Unavailable
18
Ball Bearing 6206
504152010
Unavailable
19
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
