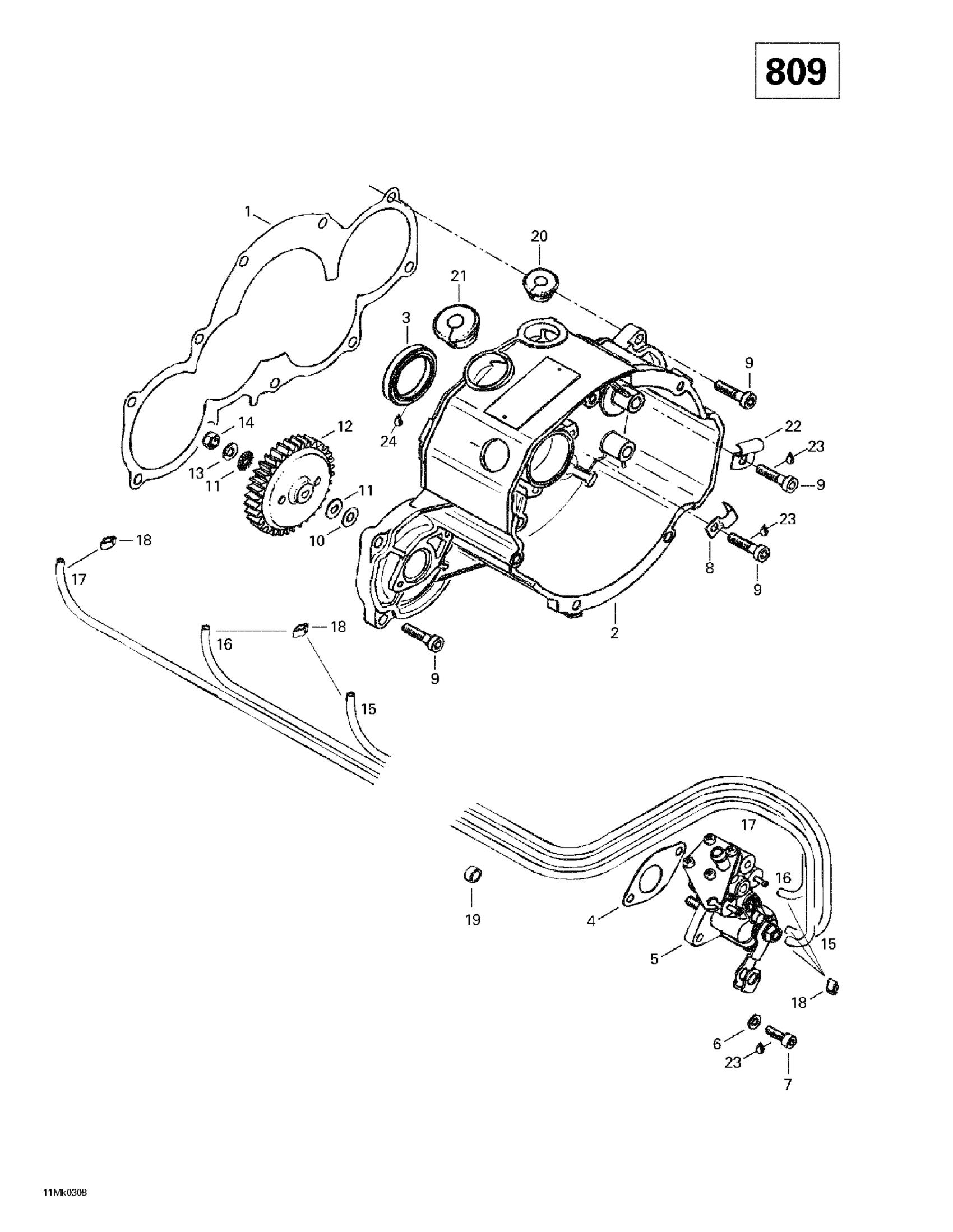

Ski-Doo Mach Z, 2003 Ignition Housing Oil Pump Diagram
#
Description
Price
1
GASKET 0.8 MM - Call your local BRP dealership
420950284
Unavailable
2
Ignition Housing
420811510
Unavailable
3
OIL SEAL - Call your local BRP dealership
420931290
Unavailable
4
Gasket
420950460
Unavailable
5
Oil Pump Ass'y
420887935
Unavailable
6
Lock Washer
420945750
Unavailable
7
Allen Screw M5 x 16
420640071
Unavailable
8
Cable Clamp
420953387
Unavailable
9
Allen Screw M6 x 25
420941691
Unavailable
10
Flat Washer
420244215
Unavailable
11
Washer
420227150
Unavailable
12
Oil Pump Gear (36 Tooth)
420834270
Unavailable
13
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
14
Elastic Stop Nut M6
232561414
Unavailable
15
Oil Hose 1500Mm Long
219704404
Unavailable
16
Oil Hose 1500Mm Long
219704404
Unavailable
17
Oil Hose 1500Mm Long
219704404
Unavailable
18
Clamp
420256408
Unavailable
19
Rubber Ring
420960700
Unavailable
20
Cable Grommet
420860967
Unavailable
22
Clamp
420953382
Unavailable
