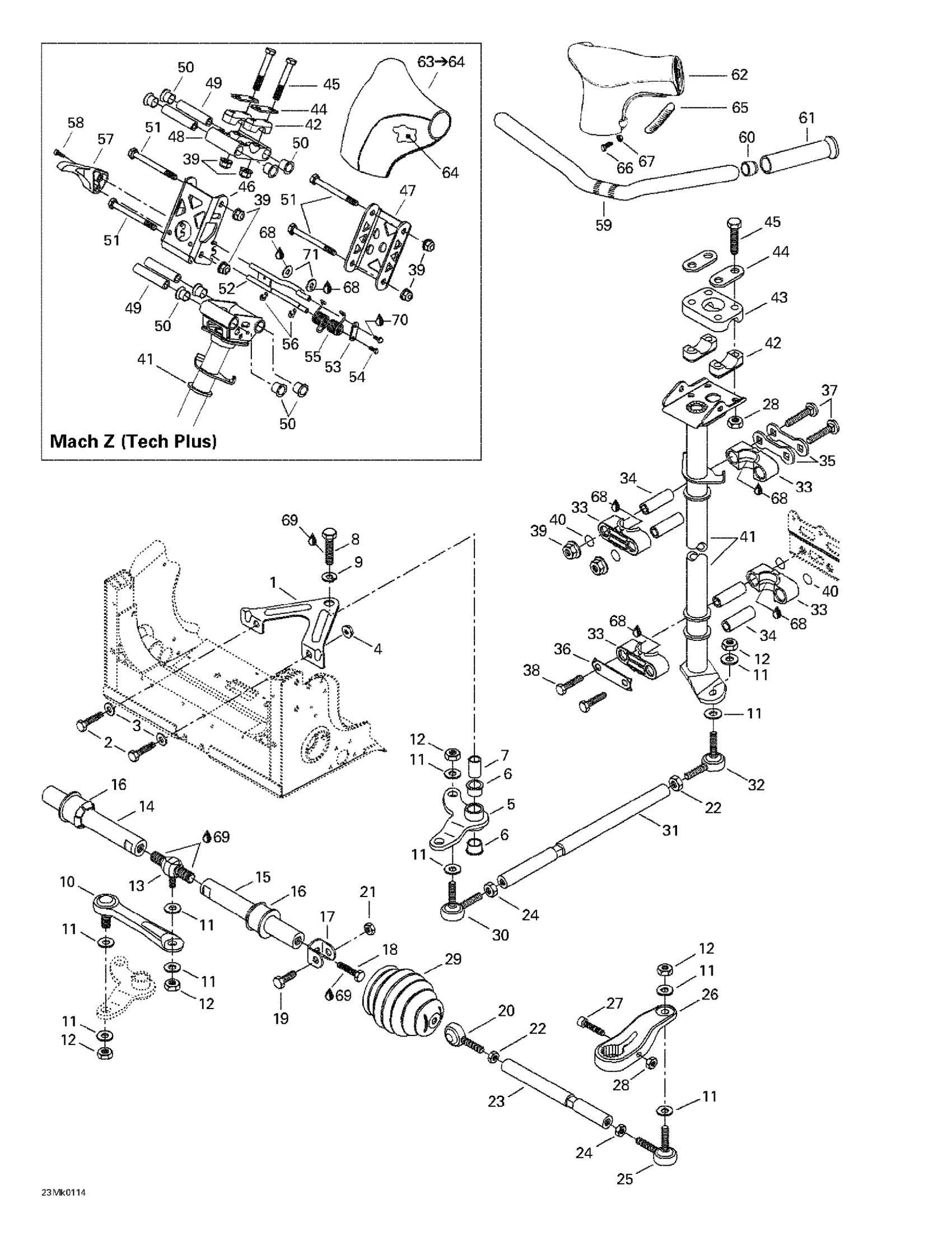

Ski-Doo Mach Z, 2001 Steering System Diagram

#

Description
Price

1

Heating Grip

515175573

$59.20

2

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

Was 515175506 Tubing

219704426

$136.12

3

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

4

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

5

Open Clamp

515175507

$1.47

6

Tie-Rap 180 mm

414115200

$0.09

7

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

8

Male Housing, 3 Circuits

515175494

$15.35

9

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

10

Male Terminal

515175232

$1.49

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Brake Housing

515175307

Unavailable

13

Socket Set Screw M8 X 10

414440800

$4.00

14

Dimmer Switch

515175563

Unavailable

15

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

16

Switch Decal

415025500

Unavailable

17

Heat Throttle Handle (26 mm)

512059159

Unavailable

Heat Throttle Handle (26 mm) | Mach Z (Tech Plus).

512059291

Unavailable

18

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

Kill Switch | Mach Z (Tech Plus).

512059210

Unavailable

19

Microswitch

507032366

$104.58

Microswitch

507032366

$104.58

20

Female Terminal Housing, 13 Circuits

515175350

$12.88

21

Female Terminal

515175231

$4.12

22

Female Terminal

515175282

$6.43

23

Female Housing, 3 Circuits

515175495

$15.35
