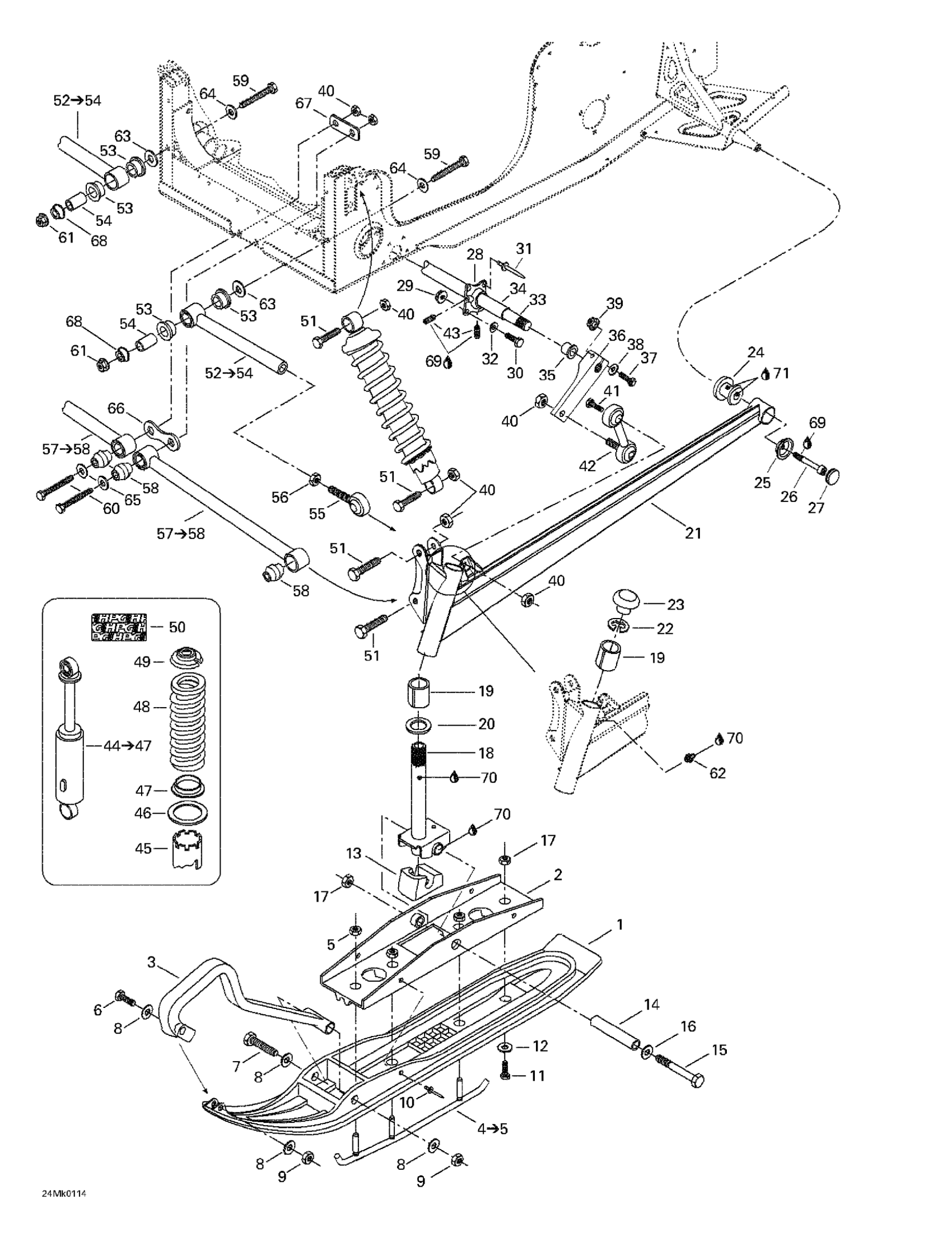

Ski-Doo Mach Z, 2001 Front Suspension And Ski Diagram

#

Description
Price

1

Flexible Ski Liner

505070547

Unavailable

Flexible Ski Liner (Europe) | Mach Z (Standard).

505070558

Unavailable

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

Black, Handle

505070963

Unavailable

4

Carbide Runner Kit | Includes 4 - 5.

860503800

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.68

6

Hex. Screw M8 X 50

207085044

Unavailable

7

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

8

Flat Washer 8 mm

234081410

Unavailable

9

Hex. Elastic Stop Nut M8

232581414

Unavailable

10

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

11

Hex. Screw M10 X 40

207004044

$4.65

12

Washer

503183800

$3.20

13

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

14

Spacer

506133300

Unavailable

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

Unavailable

17

Hex. Flange Elastic Nut M10

233201414

$1.26

18

Ski Leg

506151234

Unavailable

19

Cushion

505070003

Unavailable

20

WASHER - Call your local BRP dealership

505070004

Unavailable

21

RH Swing Arm (Full Moon)

505070654

Unavailable

LH Swing Arm (Full Moon)

505070655

Unavailable

22

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

23

Cap

572091300

$8.97

24

Damper

570062700

Unavailable

25

Cup

506128500

Unavailable

26

Socket Head Screw M10 X 25

205002544

Unavailable

27

CAP - Call your local BRP dealership

572045900

Unavailable

28

RH Housing

505070276

Unavailable

LH Housing

506138900

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

30

Hex. Screw M6 X 25

207162544

Unavailable

31

Rivet pop 1/4"

390404900

Unavailable

32

Flat Washer 6 mm

234061410

Unavailable

33

Stabilizator

506134300

Unavailable

34

Main Tube

506136200

Unavailable

35

CUSHION - Call your local BRP dealership

415039500

$3.82

36

Stabilizer Lever

506134402

Unavailable

37

Hex. Screw M8 X 45

207084544

Unavailable

38

Flat Washer 8 mm

234081410

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

Elastic Locking Nut M10 X 1.5

233601416

$1.68

41

Hex. Screw M10 X 35

207103544

Unavailable

42

Double Ball Joint

415101400

Unavailable

43

Socket Set Screw M8 X 10

414440800

$4.00

44

FRONT SHOCK - Call your local BRP dealership | Includes 44 - 47.

505070518

Unavailable

45

Cam

415109900

Unavailable

46

Thrust Washer

415052900

Unavailable

47

Spring Guide

415052800

Unavailable

48

Spring (Yellow)

415075900

Unavailable

49

Spring Stopper

706200881

$10.30

50

HPG Decal (Europe)

516000182

Unavailable

51

Hex. Screw M10 X 55

207005544

$1.85

52

Adjustable Arm Ass'y | Includes 52 - 54.

505070131

Unavailable

53

CUSHION - Call your local BRP dealership

506149100

Unavailable

54

Bushing

505070143

Unavailable

55

Ball Joint

415068400

Unavailable

56

Nut Hexagonal RH.

232026414

Unavailable

57

Lower Arm Ass'y | Includes 57 - 58.

505070140

Unavailable

58

Bushing

505070025

Unavailable

59

HEX. SCREW M10 X 110 - Call your local BRP dealership

230001044

Unavailable

60

Hex. Screw M10 x 85

207008544

Unavailable

61

Hex. Flange Elastic Nut M10

233201414

$1.26

62

Grease Fitting

408200700

Unavailable

63

WASHER - Call your local BRP dealership

506148100

Unavailable

64

Flat Washer

399910100

Unavailable

65

Washer

503175800

$3.26

66

Plate

506147900

Unavailable

67

Plate

506148300

Unavailable

68

Spacer

506148400

Unavailable

69

Loctite 271, 10 ml

293800005

Unavailable

70

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

71

Grease, Super Lube

293550030

Unavailable
