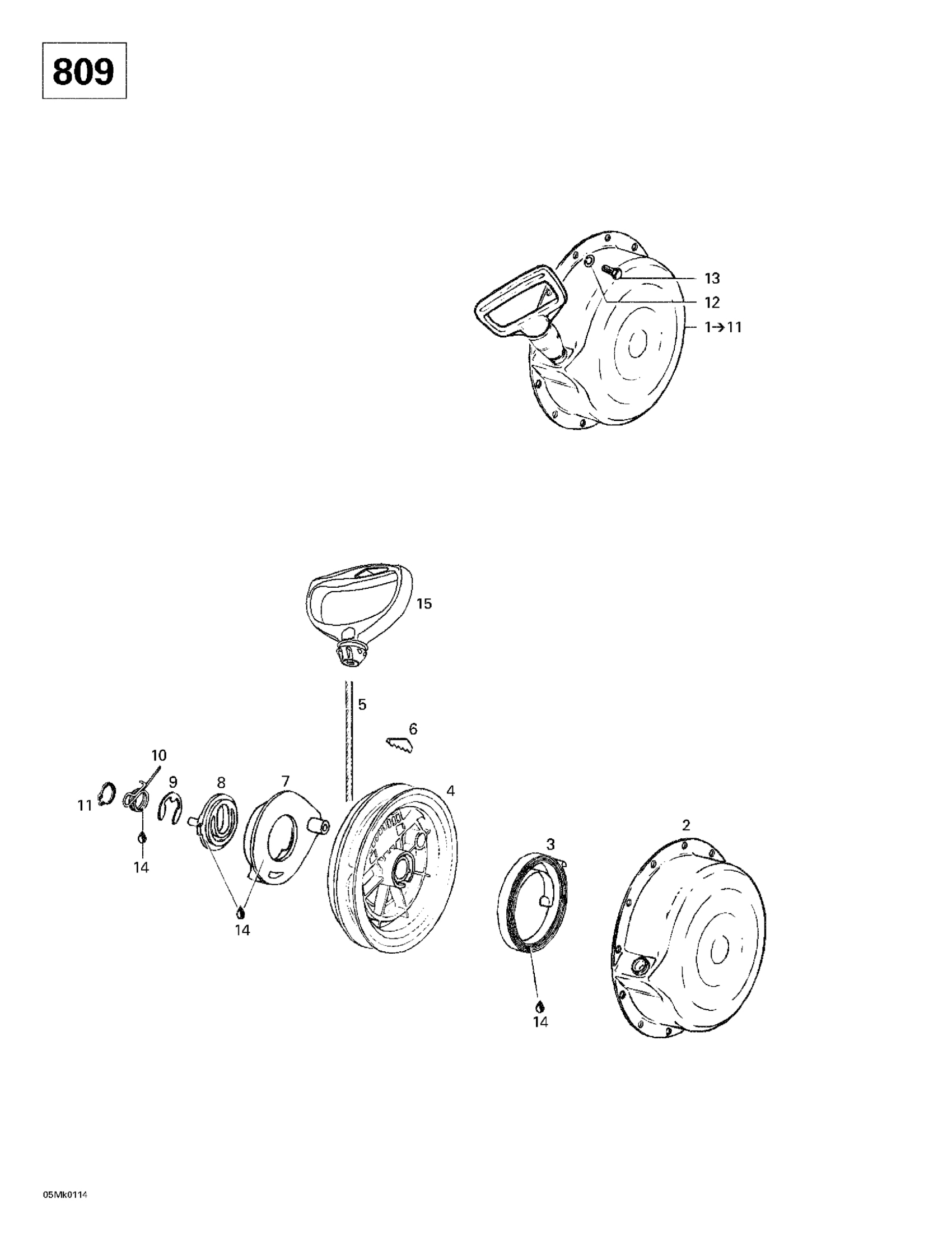

Ski-Doo Mach Z, 2001 Rewind Starter Diagram
#
Description
Price
1
Rewind Starter Ass'y | Includes 1 - 11.
420887453
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
4
Rope Sheave
420852283
Unavailable
5
Was 412500100 Rope-Starter
219704403
Unavailable
6
Key Clamp
420852070
Unavailable
7
Pawl
420852296
Unavailable
8
PAWL LOCK - Call your local BRP dealership
420852302
Unavailable
9
CIRCLIP - Call your local BRP dealership
420845300
Unavailable
10
Pawl Spring
420938986
Unavailable
11
LOCK RING - Call your local BRP dealership
420945770
Unavailable
12
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
13
Hex. Screw M6 X 16
207161644
Unavailable
14
Molykote PG 54, 10 g
420899763
Unavailable
15
Starter Grip
572084400
Unavailable
