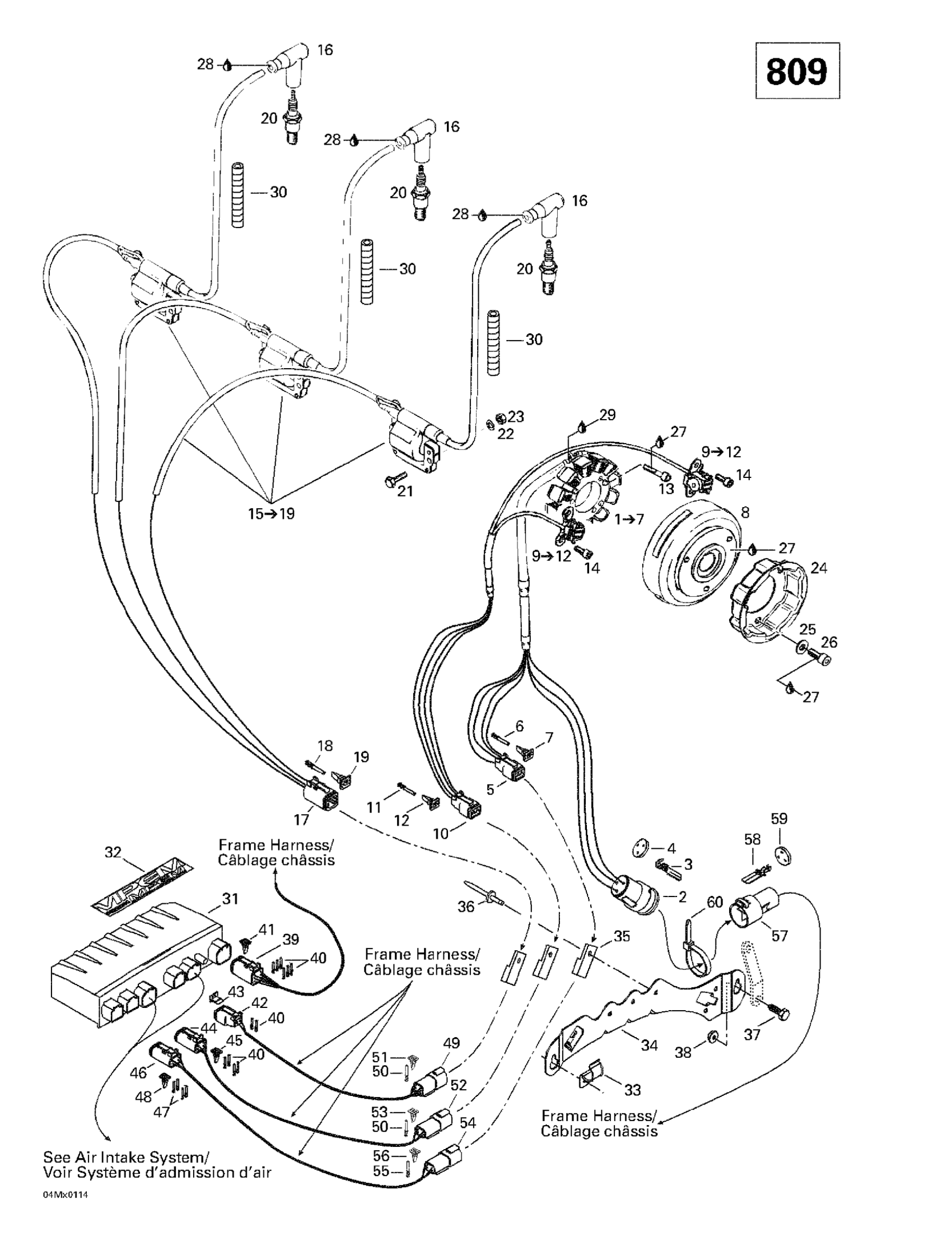

Ski-Doo Mach Z, 2001 Magneto (12V, 290W) 2 Diagram

#

Description
Price

1

Stator Ass'y | Includes 1 - 7.

410922927

Unavailable

2

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

4

SEAL - Call your local BRP dealership

409208500

Unavailable

5

Female Terminal Housing (4 circuits)

515175245

Unavailable

6

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

7

Female Lock (4 circuits)

515175246

Unavailable

8

Magneto Flywheel

410922930

Unavailable

9

Pick Up Ass'y | Includes 9 - 12.

410922909

Unavailable

10

Male Connector, 4 Circuits | CE

278000739

$14.92

11

Female Terminal

278000632

Unavailable

12

Male Lock, 4 Circuits | CE

278000738

$2.91

13

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

14

Allen Screw M6 X 14

420840391

Unavailable

15

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

16

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

17

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

18

Female Terminal

278000632

Unavailable

19

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

20

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

22

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

23

Hex. Nut M6

232061414

$0.44

24

Starting Pulley

420852418

Unavailable

25

Flat Washer

420827405

$1.66

26

Socket Head Screw M8 X 12

420841520

$1.68

27

Loctite 243, 10 ml

293800060

$20.77

28

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

29

Silicone Sealant 51388, 300 ml

296000309

Unavailable

30

Tubing 10 MM 1000MM Long

219704407

Unavailable

31

Calibration Module

512059292

Unavailable

32

Electrical Box Decal

516000245

Unavailable

33

Bracket

517274400

Unavailable

34

Housing Support

515175148

Unavailable

35

Clip

270000141

$8.33

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Hex. Screw M5 X 14

207151444

Unavailable

38

Hex. Flange Elastic Nut M5

233251414

Unavailable

39

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

40

Female Terminal

278000632

Unavailable

41

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

42

Female Connector, 2 Circuits

409207300

$9.60

43

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

44

Male Connector, 4 Circuits | CE

278000739

$14.92

45

Male Lock, 4 Circuits | CE

278000738

$2.91

46

Female Terminal Housing (4 circuits)

515175245

Unavailable

47

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

48

Female Lock (4 circuits)

515175246

Unavailable

49

Male Terminal Housing, 6 Circuits

710001539

$15.57

50

Male Terminal

278000631

$4.12

51

Female Lock, 6 Circuits

278000735

$3.02

52

Female Housing, 4 Circuits

278000635

$14.02

53

Female Wedge, 4 Circuits

278000636

$4.12

54

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

55

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

56

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

57

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

58

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

59

SEAL - Call your local BRP dealership

409208500

Unavailable

60

Tie-Rap 180 mm

414115200

$0.09
