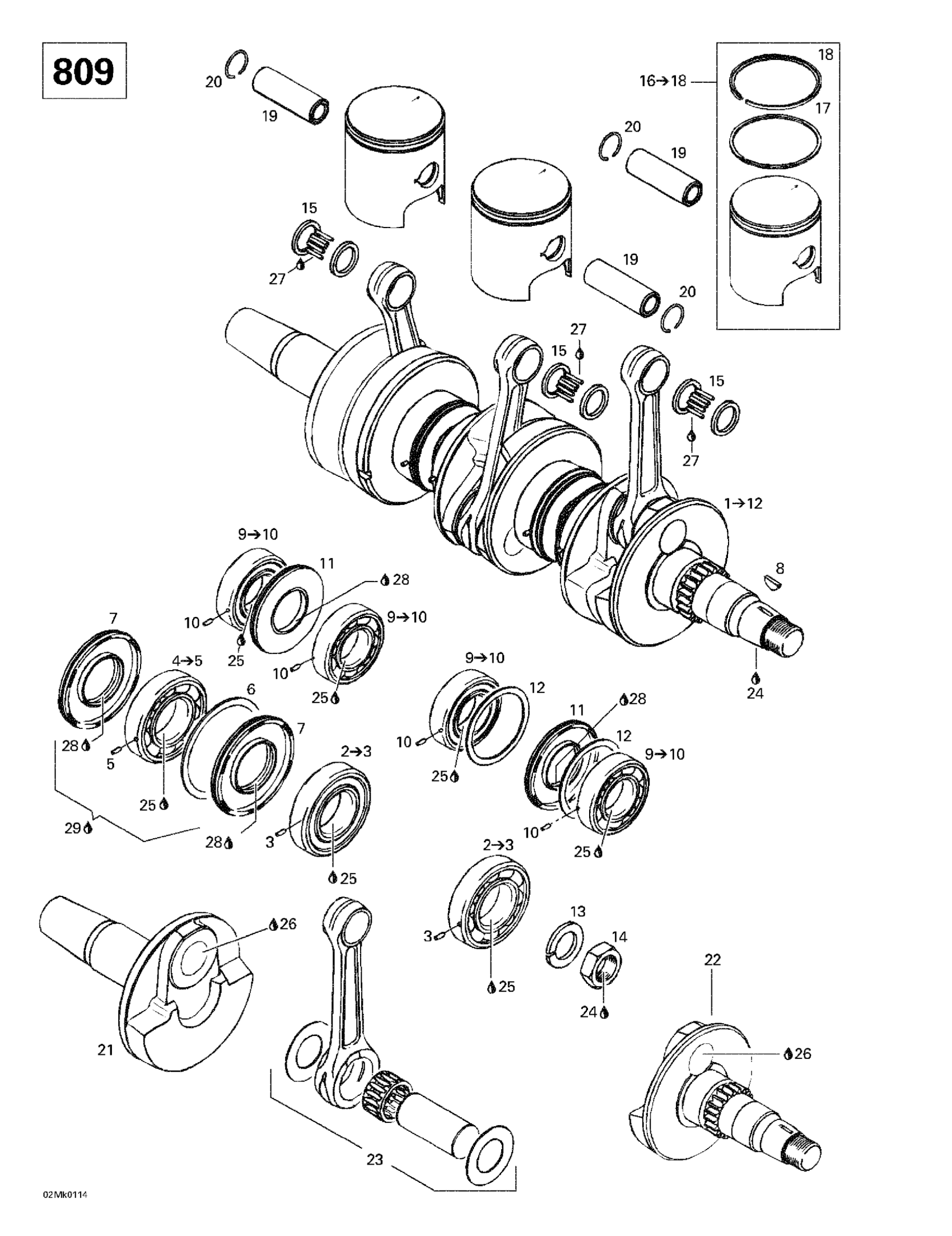

Ski-Doo Mach Z, 2001 Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft Ass'y | Includes 1 - 12.
420887662
Unavailable
2
Ball Bearing Ass'y | Includes 2 - 3.
420432272
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Ball Bearing Ass'y | Includes 4 - 5.
420832580
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Washer
420926190
Unavailable
7
Oil Seal
420931280
Unavailable
8
Woodruff Key
420246015
Unavailable
9
Ball Bearing Ass'y | Includes 9 - 10.
420832630
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Oil Seal This part replaces 290831952.
420831952
Unavailable
12
Retaining Disk
420927710
Unavailable
13
Lock Washer, 22 mm
420945759
Unavailable
14
Hex. Nut, M22 X 1.5
420842239
Unavailable
15
Needle Bearing
420832320
Unavailable
16
Piston Ass'y | Includes 16 - 18.
420887643
Unavailable
17
Rectangular Ring 70.5 mm
420915988
Unavailable
18
Semi-Tapez Ring 70.5 mm
420815049
Unavailable
19
GUDGEON PIN - Call your local BRP dealership
420916186
Unavailable
20
Piston Circlip
420945735
Unavailable
21
Crankshaft (PTO Side)
420818572
Unavailable
22
Crankshaft (MAG Side)
420818583
Unavailable
23
ROD REPAIR KIT (PTO SIDE) - Call your local BRP dealership
420887663
Unavailable
Rod Repair Kit (MAG/Center Side)
420887664
Unavailable
25
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
26
Sealant Loctite 648
219703000
Unavailable
27
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
28
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
29
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
